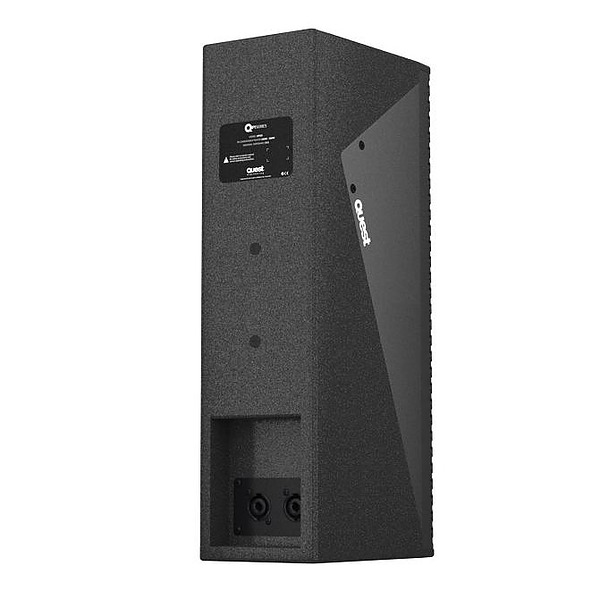

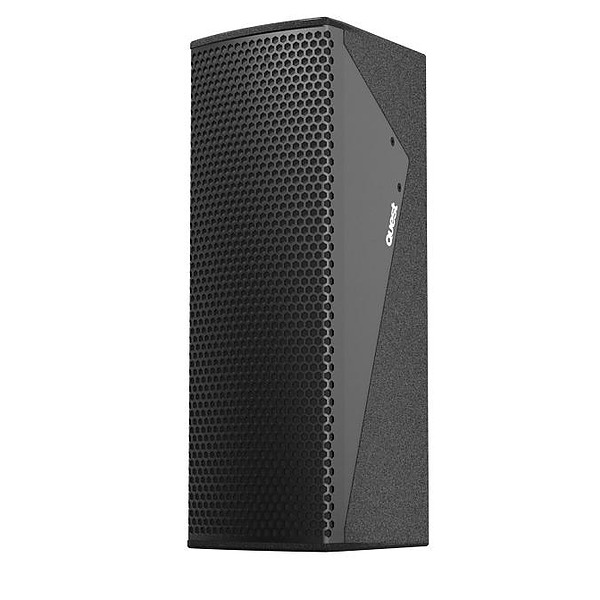

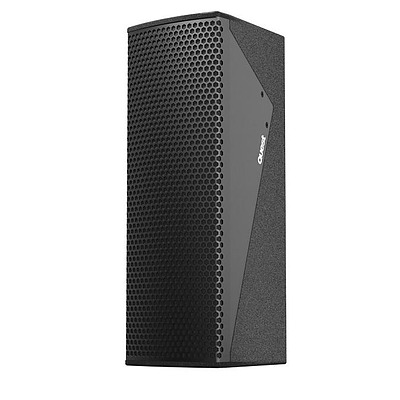

Dual 5" Compact Passive Speaker

QUEST HPI25

New product

Dual 5" Compact Passive Speaker

More details

Mega Music Myaree Myaree 9330 2777 www.megamusiconline.com.au
Soundtown Osborne Park 9242 8055 www.soundtown.com.au
Venue Technical Services City Beach 9285 0539 www.venuetechnical.com.au
C.C.A. Productions Osborne Park 9242 8511 www.ccaproductions.com.au

To extend the possibilities of the HPI-5, the HPI-25 is a double 5" version of the single 5" system.

This extended system boasts higher SPL output and an extended frequency range. The first driver delivers both HF and LF frequencies while the second driver is dedicated to LF output. This quasi-3 way system maximises bass response whilst delivering clear LF and mid range.

Low profile and high power; theatre stage infill, delay system or high fidelity front of house. The HPI25 can fulfil a multiplicity of high end audio roles without compromise. The coverage pattern of the HPI25 can be classified as short to mid throw of a wide frequency range extending into the mid bass area. Voice intelligibility is high making the HPI25 suitable for venues where both spoken word and music program is required. Wall and ceiling mounting is possible with an optional "U" bracket and maintaining a low visual profile for discrete installation and minimum interference with sightlines.

The sound signature of the HPI25 has been created in line with the entire range of Quest HPI systems making it the perfect companion to a larger HPI system. The HPI25 can function well without the aid of a dedicated system processor or extensive EQ correction. A full-range system can be created with the addition of an optional subwoofer (HPI12S).

Specialised 5" ultra high powered drivers were developed for both the HPI5 and 25. The passive crossover system is a quasi 3-way to minimise midrange interference between resulting in a very smooth response in the vocal range. The HPI25 high frequency section comprises a proprietary 3/4 inch horn driver matched to a custom designed and rotatable high frequency horn.

A mid bass rear port will give the system a little extra projection when the HPI25 is wall mounted. Best results are obtained if the system is high passed at 75-80 Hz but the high excursion drivers can function with full range program without problems.

  • Colour Black
  • Coverage (H x V) 100° x 60°
  • Dimensions (H x W x D) 248 x 182 x 150mm
  • Frequency Response 60Hz - 19kHz
  • Impedance 8 ohm
  • Maximum SPL 118dB
  • Warranty 2 Years
  • Weight 9.3 kg
