> >>>EV ELX200-10 ELX200 10" 2-WAY PASSIVE 120W 8 OHM WALL/POLE MOUNTED 2-WAY LOUDSPEAKER BLACK
10" Two Way Passive Loudspeaker - 300 Watt View larger

ELECTROVOICE

EV ELX200-10 ELX200 10" 2-WAY PASSIVE 120W 8 OHM WALL/POLE MOUNTED 2-WAY LOUDSPEAKER BLACK

ELEELX200-10

ELX200-10

New product

EV 10" TWO WAY PASSIVE LOUDSPEAKER - 300 WATT

More details

Balcatta: 0
Geebung: 0

EVL-ELX200-10 Electro-Voice 10-Inch Two-Way Passive Loudspeaker - 300 W

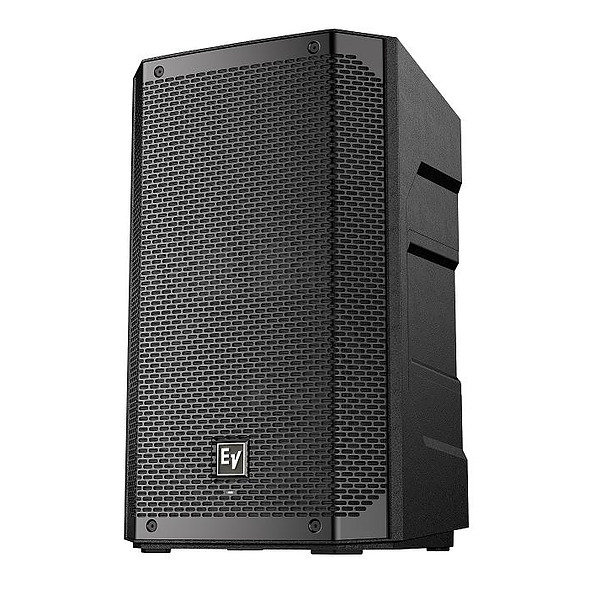

The EVL-ELX200-10 is an Electro-Voice 10-inch two-way passive loudspeaker featuring a high-output EVS-10M woofer and a DH-1C 1-inch titanium compression driver. Rated at 300 W continuous and 1200 W peak power handling, it delivers up to 127 dB maximum SPL while providing clear full-range sound reinforcement for portable and installed audio systems.

Designed for professional sound reinforcement, the ELX200-10 combines a lightweight polypropylene enclosure with EV's patented Signal Synchronized Transducers (SST) waveguide for consistent 90° x 60° coverage and minimal distortion. Integrated pole mounting, three M10 suspension points and the proven two-handle cabinet design support flexible installation and transport.

Key Features

  • 300 W continuous and 1200 W peak power handling delivers high-output performance for professional audio applications.
  • EV-patented Signal Synchronized Transducers (SST) waveguide provides precise 90° x 60° coverage with minimal distortion.
  • High-output EVS-10M 10-inch woofer and DH-1C titanium compression driver deliver balanced full-range sound reproduction.
  • Lightweight polypropylene enclosure combines durability with easy transport for portable sound systems.
  • Three M10 suspension points, integrated pole mount and dual-handle cabinet support versatile installation and deployment.
  • Colour Black
  • Coverage (H x V) 90° x 60°
  • Dimensions (H x W x D) 531 x 330 x 319 mm
  • Frequency Response 49 Hz - 22 kHz (-10dB)
  • Impedance 8 ohm
  • Material Polypropylene
  • Maximum SPL 127 dB
  • Power Rating 300 watt (RMS) 1200 watt (Peak)
  • Sensitivity 90 dB
  • Warranty 5 Years
  • Weight 13.4kg
  • PRODUCT TYPE 2-WAY LOUDSPEAKER
  • Brand EV
  • Config 2-WAY
  • Driver Size 10"
  • Power Type PASSIVE
  • Mount Type WALL/POLE MOUNTED
  • SPL (DB) 90
  • Dispersion Angle 90H X 60V
  • Input Connector DUAL NL4
  • Peak Power (W) 120W
  • Weight (kg) 13.4 KG
  • Enclosure POLYPROPYLENE
  • Max SPL (dB) 127 DB
  • Hertz 49-22000HZ (-10dB)
  • Max Wattage 300W
  • Unit Dimensions (mm) 531H x 330W x 319D
  • Series ELX200
