> >>>EV EVL-ZX1-90 ZX1 8" 2-WAY FULL RANGE PASSIVE 800W 8 OHM 2-WAY PASSIVE LOUDSPEAKER BLACK

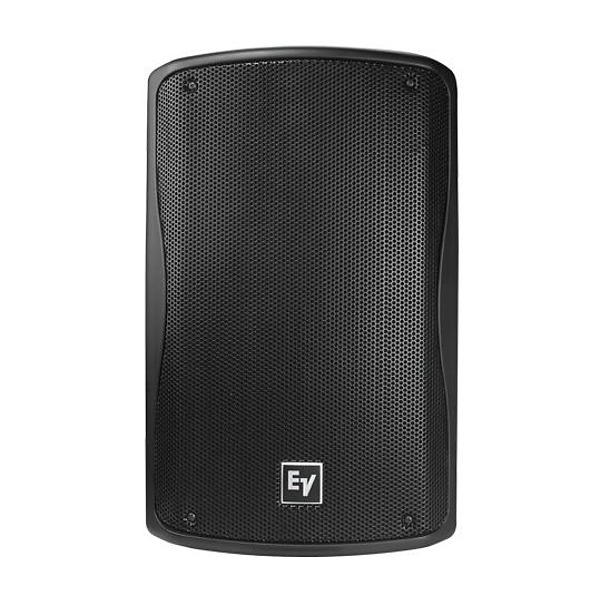

8" Two Way Full Range Speaker - 200 Watt View larger

ELECTROVOICE

EV EVL-ZX1-90 ZX1 8" 2-WAY FULL RANGE PASSIVE 800W 8 OHM 2-WAY PASSIVE LOUDSPEAKER BLACK

ELEZX1-90

EVL-ZX1-90

New product

EV 8" TWO WAY FULL RANGE SPEAKER - 200 WATT

More details

Balcatta: 0
Geebung: 0

ZX1-90 Electro-Voice 8-Inch Two-Way Passive Loudspeaker - 90 Deg x 50 Deg

The Electro-Voice ZX1-90 is a compact 8-inch two-way passive loudspeaker for full-range portable sound reinforcement. It features an EV8L low-frequency driver and a DH2005 1-inch-exit true compression driver, with 200 W continuous power handling and a maximum calculated SPL of 123 dB in an 8.4 kg enclosure.

The loudspeaker features a rotatable 90 Deg x 50 Deg horn for horizontal or vertical installation, along with an integrated pole mount and wedge-angle enclosure for portable sound reinforcement and stage monitor applications.

Key Features

  • Velocity-compensated port design for extended low-frequency response with reduced vent noise
  • High-impact polypropylene enclosure for durability and consistent acoustic performance
  • Integrated crossover network for smooth frequency response between low- and high-frequency drivers
  • Full-bandwidth overload protection for reliable long-term operation without audible effect
  • Water-resistant enclosure and weatherised woofer cone for indoor and outdoor applications
  • Colour Black
  • Coverage (H x V) 90 ° x 50 °
  • Dimensions (H x W x D) 457 x 282 x 264 mm
  • Frequency Response 48 - 20000 Hz (-10 dB)
  • Impedance 8 ohm
  • Material High-Impact ABS Plastic
  • Maximum SPL 123 dB
  • Power Rating 200 watt (RMS) 800 watt (Peak)
  • Sensitivity 94 dB
  • Warranty 3 Years
  • Weight 8.4 Kg
  • PRODUCT TYPE 2-WAY PASSIVE LOUDSPEAKER
  • Brand EV
  • Config 2-WAY FULL RANGE
  • Driver Size 8"
  • Power Type PASSIVE
  • Peak Power (W) 800W
  • Weight (kg) 8.4 KG
  • HF Driver Size 1"
  • LF Driver Size 8"
  • Enclosure HIGH IMPACT POLYMER
  • Max SPL (dB) 123 DB
  • Hertz 60-20000HZ
  • Max Wattage 200W
  • Unit Dimensions (mm) 457H x 282W x 264D
  • Pair SINGLE
  • Crossover Freq 1.7KHZ
  • Program Power (W) 400W
  • Series ZX1
