> >>>VOID VOI-ARC M15 ARCM 15" COAXIAL PASSIVE 500W 8 OHM / 16 OHM TOP HAT MOUNT STAGE MONITOR BLACK

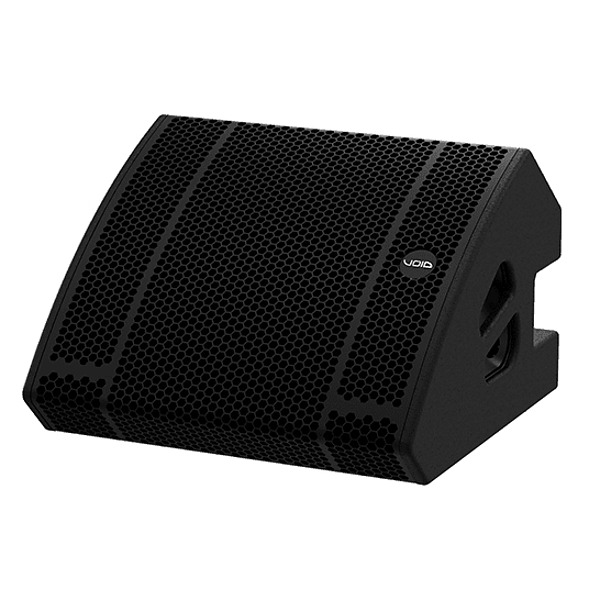

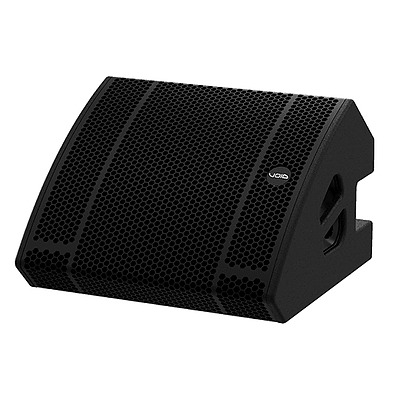

VOID 15" PASSIVE MONITOR SPEAKER View larger

VOID

VOID VOI-ARC M15 ARCM 15" COAXIAL PASSIVE 500W 8 OHM / 16 OHM TOP HAT MOUNT STAGE MONITOR BLACK

VOIARC-M15

VOI-ARC M15

New product

VOID 15" PASSIVE MONITOR SPEAKER

More details

Balcatta: 0
Geebung: 0

VOI-ARC M15 Void 15 Inch Passive Coaxial Stage Monitor Speaker

The Void ArcM 15 is a high-output passive 15-inch coaxial stage monitor with a 46 Hz to 20 kHz frequency response, 80° horizontal by 80° vertical nominal dispersion, 500 W AES power handling and maximum output of 126 dB continuous and 132 dB peak.

Designed for stage, nearfield and front-of-house use, it has two wedge operating modes and an integral pole mount for 35 mm poles. The enclosure uses multi-laminate plywood construction with a textured TourCoat finish.

Key Features

  • Coaxial transducer configuration delivers consistent coverage
  • Accurate vocal reproduction supports stage-monitoring applications
  • FEA-optimised porting provides controlled low-frequency performance at high output
  • Low-profile enclosure maintains clean stage sightlines
  • Switchable configuration supports single-channel passive or bi-amped operation
  • Colour Black
  • Dimensions (H x W x D) 371 x 550 x 530mm
  • Dispersion 80°H x 80°V
  • Frequency Response 50 Hz - 18 kHz ±3 dB
  • Impedance 8 OHM / 16 OHM
  • Maximum SPL 132 dB
  • Power Rating 500 watt
  • Sensitivity 100 dB
  • Warranty 3 Years
  • Weight 22.5kg
  • PRODUCT TYPE STAGE MONITOR
  • Brand VOID
  • Config COAXIAL
  • Driver Size 15"
  • Power Type PASSIVE
  • Mount Type TOP HAT MOUNT
  • Dispersion Angle 80H X 80V
  • Voice Coil Size 3.5" LF
  • Input Connector 2x4-PIN LOCKING CONNECTORS
  • Weight (kg) 22.5 KG
  • HF Driver Size 1.4"
  • LF Driver Size 15"
  • Enclosure 15 MM BIRCH PLYWOOD
  • Max SPL (dB) 126 DB
  • Hertz 46-20000HZ
  • Max Wattage 500W
  • Unit Dimensions (mm) 372.3H x 550W x 531.1D
  • Series ARCM
