> >>>ELECTROVOICE EVL-ELX200-15 ELX200 15" 2-WAY PASSIVE 1200W 8 OHM WALL/POLE MOUNTED PASSIVE LOUDSPEAKER BLACK

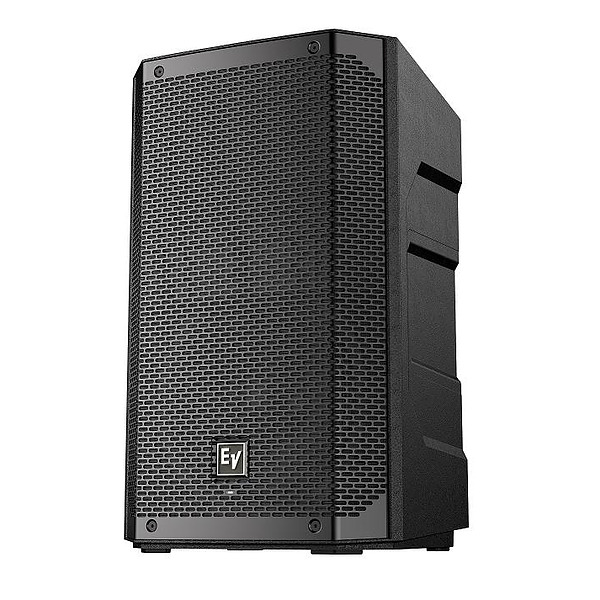

15" Two Way Passive Loudspeaker - 300 Watt View larger

ELECTROVOICE

ELECTROVOICE EVL-ELX200-15 ELX200 15" 2-WAY PASSIVE 1200W 8 OHM WALL/POLE MOUNTED PASSIVE LOUDSPEAKER BLACK

ELEELX200-15

EVL-ELX200-15

New product

EV 15" TWO WAY PASSIVE LOUDSPEAKER - 300 WATT

More details

Balcatta: 0
Geebung: 0

Electro-Voice ELX200-15 15 Inch 2-Way Passive Loudspeaker

The Electro-Voice ELX200-15 is a 15 inch two-way passive loudspeaker designed for portable sound reinforcement and professional installed audio applications. It combines a high-output EVS-15M woofer, a DH-1C titanium compression driver and an EV-patented Signal Synchronized Transducers (SST) waveguide to deliver consistent coverage, high output and clear, accurate sound reproduction.

The ELX200 series is engineered to provide an effective balance of sound quality, portability and durability. A robust composite enclosure, professional-grade mounting hardware and the proven three-handle cabinet design make the ELX200-15 suitable for demanding live sound and fixed installation environments.

Key Features

  • 15 inch two-way passive loudspeaker for portable and installed sound reinforcement.
  • 300 W continuous and 1200 W peak power handling with up to 130 dB maximum SPL.
  • High-output EVS-15M woofer provides exceptional low-frequency reproduction and durability.
  • DH-1C 1-inch titanium compression driver delivers extended, transparent high-frequency response.
  • EV-patented Signal Synchronized Transducers (SST) waveguide provides precise, consistent coverage with reduced distortion.
  • Durable composite enclosure balances portability, strength and long-term reliability.
  • Three M10 threaded suspension points and an integrated pole mount support flexible deployment and installation.
  • Proven three-handle enclosure design allows easier transport, lifting and setup.
  • Colour Black
  • Coverage (H x V) 90° x 60°
  • Dimensions (H x W x D) 710 x 423 x 384 mm
  • Frequency Response 52 Hz - 19 kHz (-10 dB)
  • Impedance 8 ohm
  • Material Polypropylene
  • Maximum SPL 130 dB
  • Power Rating 300 watt (RMS) 1200 watt (Peak)
  • Sensitivity 95 dB
  • Warranty 5 Years
  • Weight 18.7 kg
  • PRODUCT TYPE PASSIVE LOUDSPEAKER
  • Brand ELECTROVOICE
  • Config 2-WAY
  • Driver Size 15"
  • Power Type PASSIVE
  • Mount Type WALL/POLE MOUNTED
  • SPL (DB) 95
  • Dispersion Angle 90H X 60V
  • Input Connector DUAL NL4
  • Peak Power (W) 1200W
  • Weight (kg) 18.7 KG
  • LF Driver Size 15"
  • Enclosure POLYPROPYLENE
  • Max SPL (dB) 130 DB
  • Hertz 77-16000HZ (-10dB)
  • Max Wattage 1200W
  • Unit Dimensions (mm) 710H x 423W x 384D
  • Crossover Freq 1.6KHZ
  • Series ELX200
