> >>>ELECTROVOICE EVL-EKX-15 EKX 15" 2-WAY PASSIVE 1600W 8 OHM WALL/POLE MOUNTED 2-WAY LOUDSPEAKER BLACK

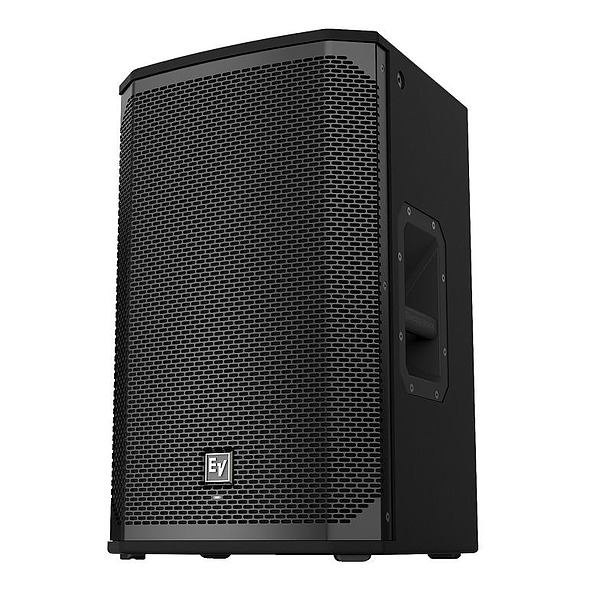

15" Two-Way Passive Loudspeaker View larger

ELECTROVOICE

ELECTROVOICE EVL-EKX-15 EKX 15" 2-WAY PASSIVE 1600W 8 OHM WALL/POLE MOUNTED 2-WAY LOUDSPEAKER BLACK

ELEEKX-15

EVL-EKX-15

New product

EV 15" TWO-WAY PASSIVE LOUDSPEAKER

More details

Balcatta: 0
Geebung: 0

EVL-EKX-15 Electro-Voice EKX-15 15" Two-Way Passive Loudspeaker - Black

EVL-EKX-15 is a 15-inch two-way passive loudspeaker designed for portable and installed sound reinforcement applications. It combines an EVS-15M 15-inch woofer with a DH-1M 1-inch titanium compression driver to deliver up to 132 dB maximum SPL.

The EV-patented Signal Synchronized Transducers (SST) waveguide provides precise and consistent 90° x 60° coverage for clear, even sound distribution. Its lightweight 15 mm plywood enclosure features internal bracing and a durable EVCoat finish, while the 40° monitor angle, aluminium pole mounts and multiple suspension points provide flexible deployment for front-of-house or stage monitoring applications.

Key Features

  • 15-inch two-way passive loudspeaker
  • EVS-15M woofer and DH-1M 1-inch titanium compression driver
  • 400 W continuous and 1600 W peak power handling
  • Maximum SPL of up to 132 dB
  • 90° x 60° coverage with Signal Synchronized Transducers (SST) waveguide
  • 15 mm plywood enclosure with internal bracing and durable EVCoat finish
  • Eight M10 threaded mounting points for compatible installation hardware
  • Aluminium pole mounts and all-metal handles
  • 40° monitor angle with rubber feet for stage monitor use
  • Colour Black
  • Coverage (H x V) 90° x 60°
  • Dimensions (H x W x D) 685 x 432 x 429 mm
  • Frequency Range 50 Hz - 20 kHz (-10 dB)
  • Impedance 8 ohm
  • Material 15 mm plywood with EVCoat
  • Maximum SPL 132 dB
  • Power Rating 400 watt (RMS) 1600 watt (Peak)
  • Sensitivity 96 dB
  • Suspension Points 8 x M10 threaded mounting points
  • Warranty 5 Years
  • Weight 23.2 kg
  • PRODUCT TYPE 2-WAY LOUDSPEAKER
  • Brand ELECTROVOICE
  • Config 2-WAY
  • Driver Size 15"
  • Power Type PASSIVE
  • Mount Type WALL/POLE MOUNTED
  • SPL (DB) 96
  • Dispersion Angle 90H X 60V
  • Input Connector DUAL NL4
  • Peak Power (W) 1600W
  • Weight (kg) 23.2 KG
  • LF Driver Size 15"
  • Enclosure 15MM PLYWOOD
  • Max SPL (dB) 132 DB
  • Hertz 50-20000HZ (-10dB)
  • Max Wattage 400W
  • Unit Dimensions (mm) 685H x 432W x 429D
  • Series EKX
