QUEST QM12MPR 12" 2-WAY PASSIVE 500W 8 OHM FLOOR/POLE MOUNTED LOUDSPEAKER MONITOR - RIGHT BLACK

QUEQM12MPR

QM12MPR

New product

QUEST 12" LOUDSPEAKER MONITOR - RIGHT

More details

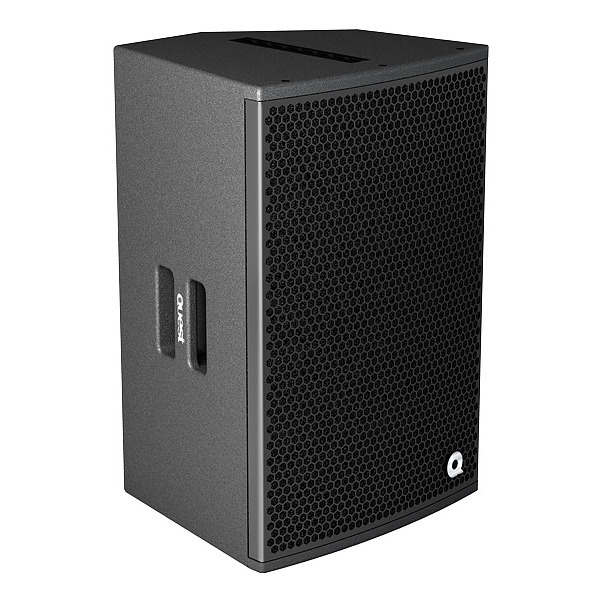

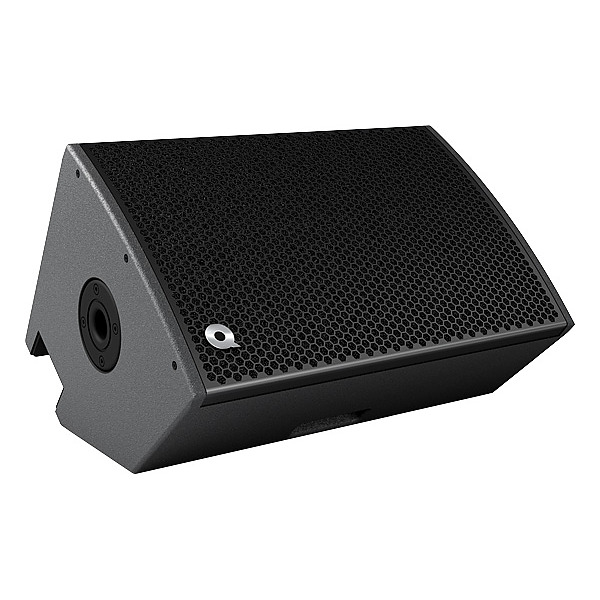

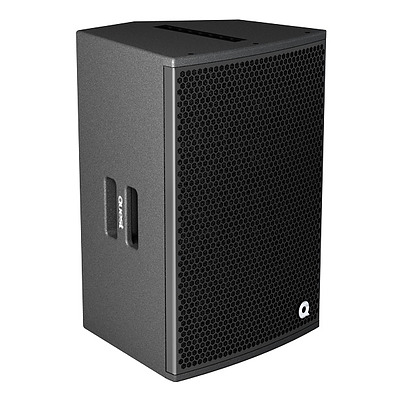

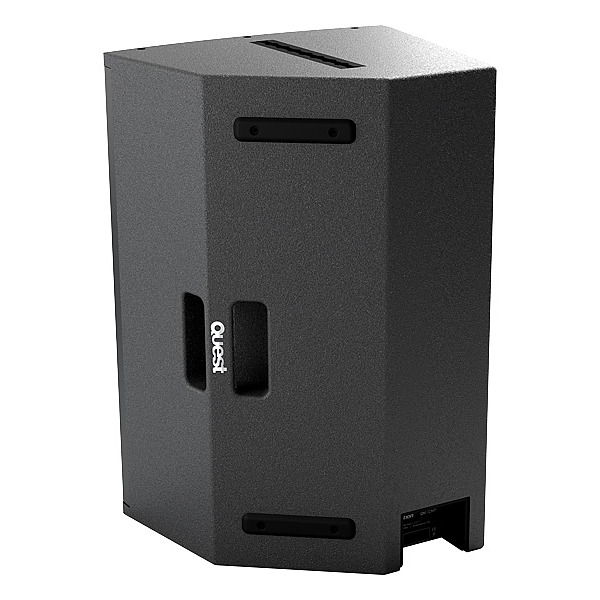

QM12MPR Quest 12-Inch Passive Stage Monitor - Right Black

The Quest QM12MPR is the right-hand version of the compact QM12MP multi-purpose passive loudspeaker, developed for concert-level stage foldback and short-throw front-of-house sound. A high-powered 12-inch mid-bass woofer is paired with a 3-inch voice-coil, 1.4-inch exit high-frequency transducer, providing 500 W RMS power handling, a 65 Hz to 19 kHz frequency response (±3 dB), 8-ohm impedance and a maximum output of 128 dB SPL.

Its right-hand horn arrangement complements the QM12MPL to create a mirrored monitor pair, reducing high-frequency interference when both enclosures share one send. The black reinforced birch-plywood cabinet combines a low-profile wedge shape, steel-reinforced neoprene feet and a heavy-gauge powder-coated grille, while Aero-track rigging and an integrated pole mount support front-of-house, delay and flown-monitor deployment.

Key Features

  • Right-hand configuration complements the QM12MPL in mirrored monitor setups
  • Smooth vocal response requires minimal equalisation for effective stage foldback
  • Strong feedback rejection helps achieve high monitor levels on demanding stages
  • High power handling and maximum output support professional touring applications
  • Multi-purpose design transitions between monitoring and front-of-house duties
  • Colour Black
  • Coverage (H x V) 90° x 60° Bi-radial horn
  • Dimensions (H x W x D) 340 x 390 x 600mm
  • Frequency Response 65 - 20 kHz
  • Impedance 8 ohm
  • Material Reinforced plywood
  • Maximum SPL 128dB
  • Power Rating 500 watt
  • Warranty 3 Years
  • Weight 23Kg
  • PRODUCT TYPE LOUDSPEAKER MONITOR - RIGHT
  • Brand QUEST
  • Config 2-WAY
  • Driver Size 12"
  • Power Type PASSIVE
  • Mount Type FLOOR/POLE MOUNTED
  • Dispersion Angle 90H X 60V
  • Input Connector 2X SPEAKON NL4 IN/OUT
  • Weight (kg) 23 KG
  • HF Driver Size 1.4"
  • LF Driver Size 12"
  • Enclosure REINFORCED BIRCH PLYWOOD
  • Max SPL (dB) 128 DB
  • Hertz 65-19000HZ (±3dB)
  • Max Wattage 500W
  • Unit Dimensions (mm) 340H x 390W x 600D
