> >>>VOID VOI-ARC M12 ARCM 12" COAXIAL PASSIVE 8 OHM / 16 OHM TOP HAT MOUNT STAGE MONITOR BLACK

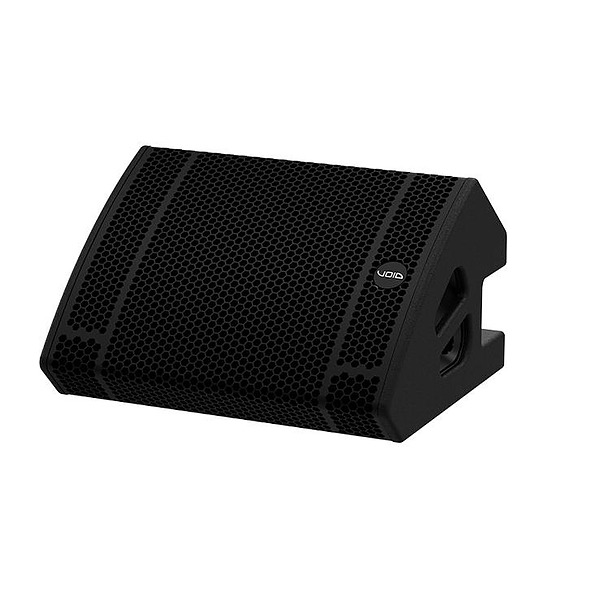

VOID 12" PASSIVE MONITOR SPEAKER View larger

VOID

VOID VOI-ARC M12 ARCM 12" COAXIAL PASSIVE 8 OHM / 16 OHM TOP HAT MOUNT STAGE MONITOR BLACK

VOIARC-M12

VOI-ARC M12

New product

VOID 12" PASSIVE MONITOR SPEAKER

More details

Balcatta: 0
Geebung: 0

VOI-ARC M12 Void 12 Inch Passive Coaxial Stage Monitor Speaker

The Void ArcM 12 is a passive 12-inch coaxial stage monitor with a 50 Hz to 20 kHz frequency response, 80° horizontal by 80° vertical nominal dispersion, 500 W AES power handling and maximum output of 126 dB continuous and 132 dB peak.

Designed for stage, nearfield, front-of-house and fixed-installation applications, it supports pole and wall mounting. The enclosure uses multi-laminate plywood construction with a textured TourCoat finish.

Key Features

  • Coaxial transducer configuration provides consistent coverage
  • FEA-optimised construction reduces port noise and air distortion
  • Dual wedge angles support stage and nearfield monitoring positions
  • Low-profile compact enclosure reduces visual impact on stage
  • Switchable configuration supports single-channel passive or bi-amped operation
  • Colour Black
  • Dimensions (H x W x D) 330 x 550 x 463mm
  • Dispersion 80°H x 80°V
  • Frequency Response 60 Hz - 18 kHz ±3 dB
  • Impedance 8 OHM / 16 OHM
  • Maximum SPL 132 dB
  • Power Rating 500 watt
  • Sensitivity 100 dB
  • Warranty 3 Years
  • Weight 19kg
  • PRODUCT TYPE STAGE MONITOR
  • Brand VOID
  • Config COAXIAL
  • Driver Size 12"
  • Power Type PASSIVE
  • Mount Type TOP HAT MOUNT
  • Dispersion Angle 80H X 80V
  • Voice Coil Size 3.5" LF
  • Input Connector 2x4-PIN LOCKING CONNECTORS
  • Weight (kg) 19 KG
  • HF Driver Size 1.4"
  • LF Driver Size 12"
  • Enclosure 15 MM BIRCH PLYWOOD
  • Max SPL (dB) 126 DB
  • Hertz 50-20000HZ
  • Unit Dimensions (mm) 331.6H x 550.4W x 463D
  • Series ARCM

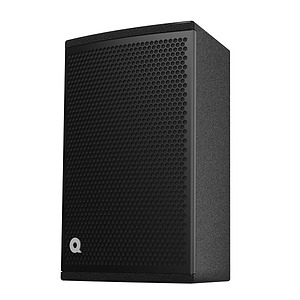

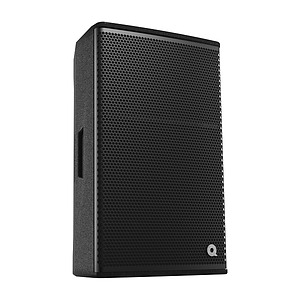

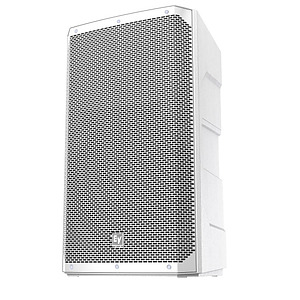

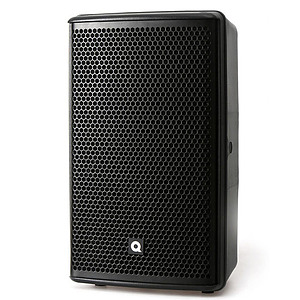

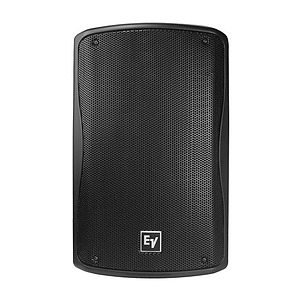

30 other products in the same category:
