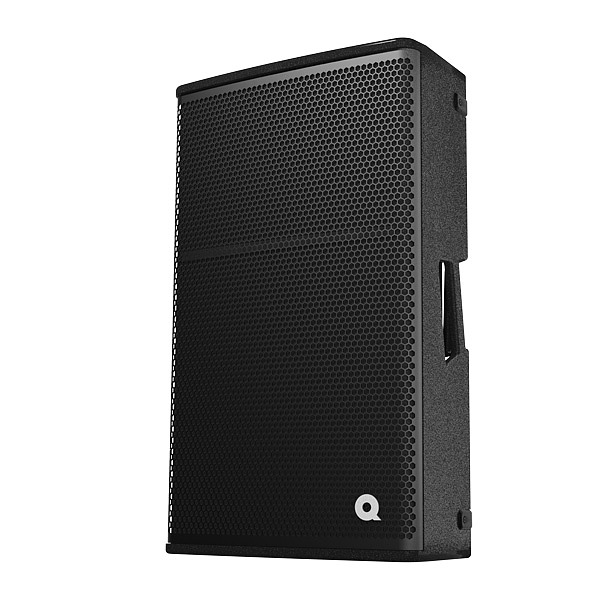

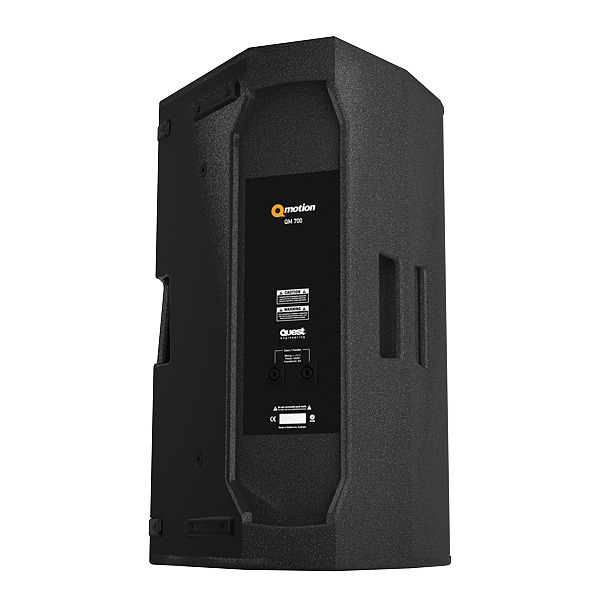

QUEST 15" TWO WAY LOUDSPEAKER MIRROR VERSION

Product Code: QUEQM700M

Supplier SKU: QM700M

Condition: New product

15" Two Way Loudspeaker Mirror Version

More details

Balcatta: 0

Geebung: 0

More info
Specifications
Download
Accessories

The QM700 is a high powered 15" passive two way multi-purpose loudspeaker built for heavy duty applications in demanding environments. A very versatile high performance speaker system and professionals everywhere quickly appreciate the high end industrial and acoustical engineering at the core of its design.

The QM700 is equally at home as a big stage high powered fold-back monitor, full range front of house or as the high-mid component of a multi way system with LF enhancement. The QM700 has a number of design innovations, starting with the Quest asymmetrical rotatable wave guide. The driver/wave-guide combination focuses the acoustic energy to provide smooth near field coverage while maximising performance and imaging in the far field, without contributing to room reflections; all done without additional system processing. Pronounced and intelligible vocal clarity in difficult acoustical environments is achieved as both a fold-back monitor or as a front of house system. Further horn rotation can achieve the same result when the QM700 is used horizontally.

The custom 15" transducer has been designed specifically to withstand the most demanding applications without degrading performance over time. The 1.4" throat three inch voice coil ferrite compression driver delivers highly efficient output withstanding the punishment that normally accompanies a concert sound stage. The reinforced steel grill/ply cabinet combination has been crafted with real world logic, ensuring the cabinet performs perfectly when positioned as fold-back or as a front of house speaker. Input connectors have also been recessed for added protection

The QM700 is available as mirrored pairs which is a great aid for minimising interferences effect when the QM700 is used as a large stage monitor. The new generation high frequency transducer is matched to a rotatable asymmetrical wave guide that can be rotated through 270 degrees for horizontal, vertical or fold-back monitor installation. The asymmetrical coverage allows the horn to achieve both long throw performance and wide angle close coverage without "hot zones" or adding to unnecessary room reflections that can degrade vocal intelligibility.
