> >>>ELECTROVOICE EVL-ELX200-12 ELX200 12" 2-WAY PASSIVE 1200W 8 OHM WALL/POLE MOUNTED 2-WAY LOUDSPEAKER BLACK
12" Two Way Passive Loudspeaker - 300 Watt View larger

ELECTROVOICE

ELECTROVOICE EVL-ELX200-12 ELX200 12" 2-WAY PASSIVE 1200W 8 OHM WALL/POLE MOUNTED 2-WAY LOUDSPEAKER BLACK

ELEELX200-12

EVL-ELX200-12

New product

EV 12" TWO WAY PASSIVE LOUDSPEAKER - 300 WATT

More details

Balcatta: 0
Geebung: 0

ELX200-12 Electro-Voice 12 Inch 2-Way Passive Loudspeaker - 300 W Black

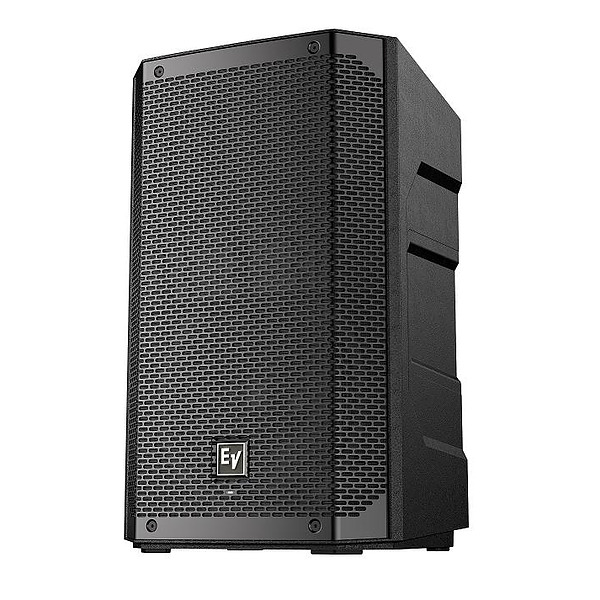

The Electro-Voice ELX200-12 is a 12-inch two-way passive full-range loudspeaker featuring a high-output EVS-12M woofer and a DH-1L 1-inch titanium compression driver. Rated for 300 W continuous and 1200 W peak power handling, it delivers up to 128 dB maximum SPL with EV's patented Signal Synchronized Transducers (SST) waveguide providing precise 90 degrees x 60 degrees coverage and consistent sound reproduction.

Designed for portable sound reinforcement and permanent installation applications, the ELX200-12 combines a lightweight polypropylene enclosure with an 18 AWG powder-coated steel grille for durability. Three M10 suspension points, an integrated pole mount and the proven ZLX three-handle design provide flexible installation and easy transport.

Key Features

  • High-output 12-inch woofer delivers powerful low-frequency performance with accurate, linear response.
  • Patented SST waveguide provides consistent coverage with reduced distortion across the listening area.
  • Titanium compression driver delivers clear, extended high-frequency reproduction.
  • Three M10 suspension points and integrated pole mount support portable and installed sound systems.
  • Reliability verified through over 500 hours of abuse and endurance testing for demanding professional use.
  • Colour Black
  • Coverage (H x V) 90° x 60°
  • Dimensions (H x W x D) 629 x 363 x 344 mm
  • Frequency Range 51 Hz - 20 kHz (-10 dB)
  • Impedance 8 ohm
  • Material Polypropylene
  • Maximum SPL 128 dB
  • Power Rating 300 watt (RMS) 1200 watt (Peak)
  • Sensitivity 93 dB
  • Warranty 5 Years
  • Weight 15.2 Kg
  • PRODUCT TYPE 2-WAY LOUDSPEAKER
  • Brand ELECTROVOICE
  • Config 2-WAY
  • Driver Size 12"
  • Power Type PASSIVE
  • Mount Type WALL/POLE MOUNTED
  • SPL (DB) 93
  • Dispersion Angle 90H X 60V
  • Input Connector DUAL NL4
  • Peak Power (W) 1200W
  • Weight (kg) 15.2 KG
  • LF Driver Size 12"
  • Enclosure POLYPROPYLENE
  • Max SPL (dB) 128 DB
  • Hertz 51-20000HZ (-10dB)
  • Max Wattage 1200W
  • Unit Dimensions (mm) 629H x 363W x 344D
  • Series ELX200
