> >>>QUEST QM108 8" 2-WAY PASSIVE 300W 8 OHM WALL/POLE MOUNTED FULL RANGE SPEAKER BLACK

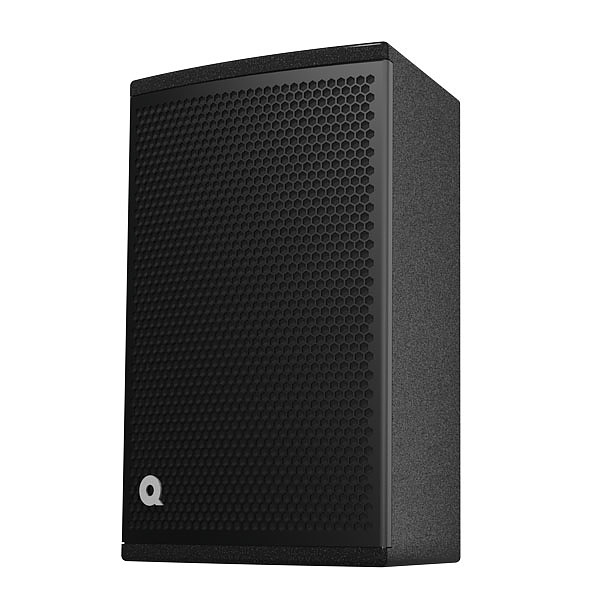

8" Full Range Speaker View larger

QUEST

QUEST QM108 8" 2-WAY PASSIVE 300W 8 OHM WALL/POLE MOUNTED FULL RANGE SPEAKER BLACK

QUEQM108

QM108

New product

QUEST 8" FULL RANGE SPEAKER

More details

Balcatta: 0
Geebung: 0

QM108 Quest Q-Motion 8-Inch 2-Way Passive Full-Range Loudspeaker

The Quest QM108 is an ultra-compact two-way passive satellite loudspeaker combining an 8-inch woofer with a 1-inch high-frequency driver. Its trapezoidal enclosure delivers a frequency response of 80 Hz to 20 kHz, 8-ohm nominal impedance and a maximum output of 120 dB SPL, with 200 W recommended amplifier power.

Designed for live vocals and programme music, the QM108 suits portable micro systems and mid-powered distributed installations. The high-frequency horn can be rotated to optimise coverage in horizontal layouts, while optional wall-bracket and pole-mount options support fixed or mobile use. It is also designed to partner with Quest QM 1000A and QM 1000P systems.

Key Features

  • Small footprint simplifies transport and placement in space-conscious applications
  • Rotatable high-frequency horn adapts coverage for horizontal installation
  • Purposeful voicing supports both live vocals and programme music
  • Capable maximum output delivers strong performance from a compact enclosure
  • Versatile format serves mobile live sound and distributed installation systems
  • Colour Black
  • Coverage (H x V) 90 x 60
  • Dimensions (H x W x D) 420 x 265 x 240 mm
  • Frequency Response 80-20kHz
  • Impedance 8 ohm
  • Maximum SPL 120dB
  • Power Rating 150 watt (RMS) 300 watt (Peak)
  • Sensitivity 95 dB
  • Warranty 3 Years
  • Weight 9.6 Kg
  • PRODUCT TYPE FULL RANGE SPEAKER
  • COLOR BLACK
  • Brand QUEST
  • Config 2-WAY
  • Driver Size 8"
  • Power Type PASSIVE
  • Mount Type WALL/POLE MOUNTED
  • Dispersion Angle 90H X 60V
  • Peak Power (W) 300W
  • Weight (kg) 9.6 KG
  • HF Driver Size 1"
  • LF Driver Size 8"
  • Max SPL (dB) 120 DB
  • Hertz 80-20000HZ
  • Max Wattage 150W
  • Unit Dimensions (mm) 420H x 265W x 240D
