> >>>ELECTROVOICE EVL-EKX-12 EKX 12" 2-WAY PASSIVE 1400W 8 OHM WALL/POLE MOUNTED 2-WAY LOUDSPEAKER BLACK
12" Two-Way Passive Loudspeaker - 350 Watt View larger

ELECTROVOICE

ELECTROVOICE EVL-EKX-12 EKX 12" 2-WAY PASSIVE 1400W 8 OHM WALL/POLE MOUNTED 2-WAY LOUDSPEAKER BLACK

ELEEKX-12

EVL-EKX-12

New product

EV 12" TWO-WAY PASSIVE LOUDSPEAKER - 350 WATT

More details

Balcatta: 0
Geebung: 0

EVL-EKX-12 Electro-Voice EKX-12 12" Two-Way Passive Loudspeaker - Black

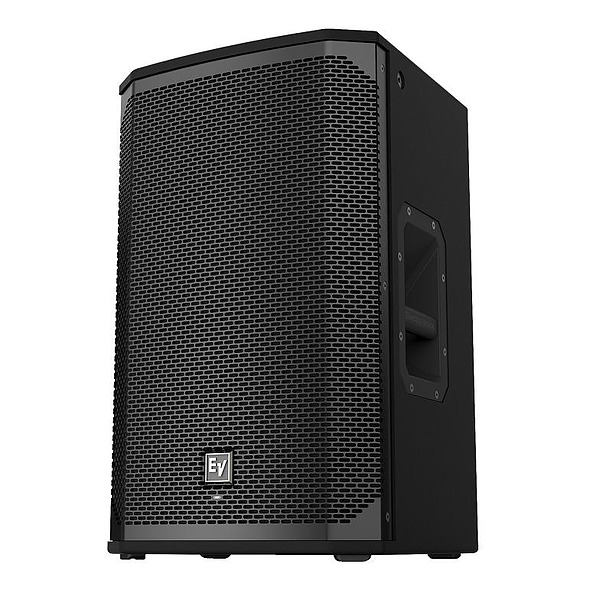

EVL-EKX-12 is a 12-inch two-way passive loudspeaker designed for portable and installed sound reinforcement applications. It combines an EVS-12M 12-inch woofer with a DH-1M 1-inch titanium compression driver to deliver up to 131 dB maximum SPL.

The EV-patented Signal Synchronized Transducers waveguide provides precise, consistent 90° x 60° coverage with minimal distortion and efficient acoustical loading. Its compact 15 mm plywood enclosure features internal bracing and a durable EVCoat finish, while the 40° monitor angle and rubber feet support use as a stage monitor.

Key Features

  • 12-inch two-way passive loudspeaker
  • EVS-12M woofer and DH-1M titanium compression driver
  • 350 W continuous and 1400 W peak power handling
  • Maximum SPL of up to 131 dB
  • 90° x 60° coverage pattern
  • Signal Synchronized Transducers waveguide design
  • 15 mm plywood enclosure with internal bracing and EVCoat finish
  • Eight M10 threaded mounting points for compatible installation hardware
  • Aluminium pole mounts and all-metal handles
  • 40° monitor angle with rubber feet
  • Colour Black
  • Coverage (H x V) 90° x 60°
  • Dimensions (H x W x D) 607 x 375 x 356 mm
  • Frequency Response 55 Hz - 20 kHz (-10 dB)
  • Impedance 8 ohm
  • Material 15 mm plywood with EVCoat
  • Maximum SPL 131 dB
  • Power Rating 350 watt (RMS) 1400 watt (Peak)
  • Sensitivity 95 dB
  • Suspension Points 8 x M10 threaded mounting points
  • Warranty 5 Years
  • Weight 17.4 kg
  • PRODUCT TYPE 2-WAY LOUDSPEAKER
  • Brand ELECTROVOICE
  • Config 2-WAY
  • Driver Size 12"
  • Power Type PASSIVE
  • Mount Type WALL/POLE MOUNTED
  • SPL (DB) 95
  • Dispersion Angle 90H X 60V
  • Input Connector DUAL NL4
  • Peak Power (W) 1400W
  • Weight (kg) 17.4 KG
  • Enclosure 15MM PLYWOOD
  • Max SPL (dB) 131 DB
  • Hertz 55-20000HZ (-10dB)
  • Max Wattage 350W
  • Unit Dimensions (mm) 607H x 375W x 356D
  • Crossover Freq 1.6KHZ
  • Series EKX
