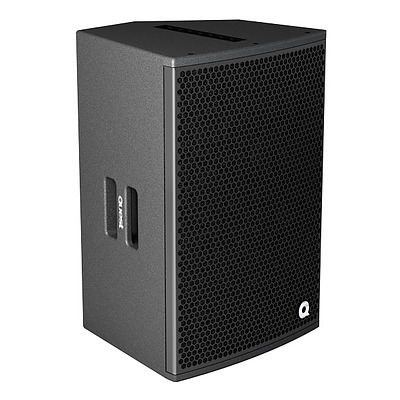

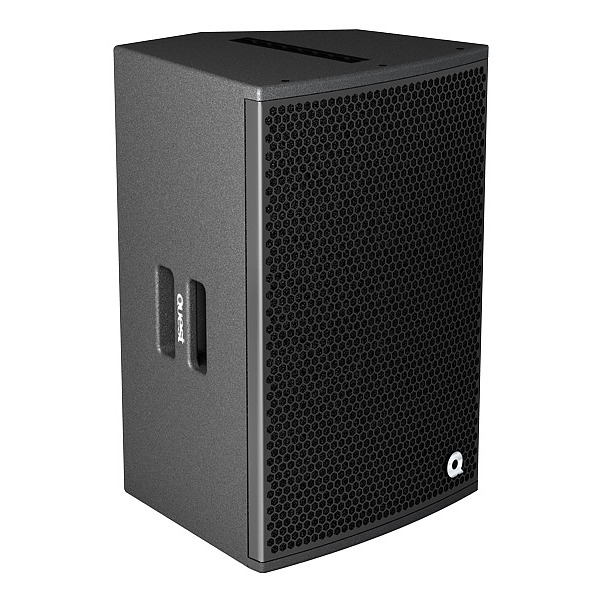

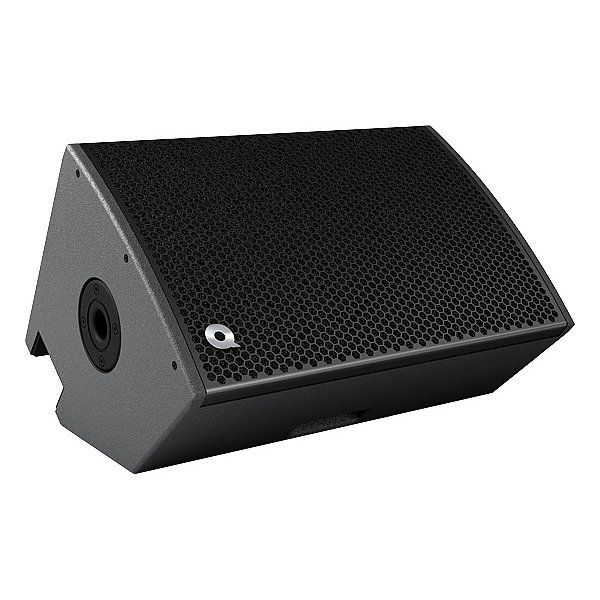

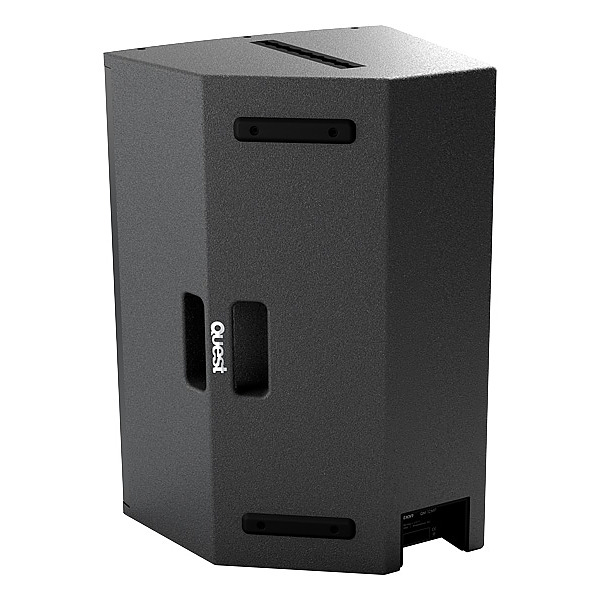

> >>>QUEST QM12MPL 12" 2-WAY PASSIVE 500W 8 OHM FLOOR/POLE MOUNTED LOUDSPEAKER MONITOR - LEFT BLACK
12" Loudspeaker Monitor - Left View larger

QUEST

QUEST QM12MPL 12" 2-WAY PASSIVE 500W 8 OHM FLOOR/POLE MOUNTED LOUDSPEAKER MONITOR - LEFT BLACK

QUEQM12MPL

QM12MPL

New product

QUEST 12" LOUDSPEAKER MONITOR - LEFT

More details

Balcatta: 0
Geebung: 0

QM12MPL Quest 12-Inch Passive Stage Monitor - Left Black

The Quest QM12MPL is the left-hand version of the QM12MP multi-purpose passive loudspeaker, designed primarily for high-output stage foldback and short-throw front-of-house applications. It combines a 12-inch high-powered mid-bass woofer with a 3-inch voice-coil, 1.4-inch exit high-frequency transducer, delivering 500 W RMS power handling, a 65 Hz to 19 kHz frequency response (±3 dB) and a maximum output of 128 dB SPL.

The left-hand horn configuration forms a mirrored pair with the QM12MPR, helping reduce high-frequency interference when both monitors share one send. Its low-profile reinforced birch-plywood enclosure includes convenient wedge angles, steel-reinforced neoprene feet and a heavy-gauge powder-coated grille, while Aero-track rigging and a 36 mm pole mount extend its use to flown foldback and front-of-house systems.

Key Features

  • Mirrored left-hand configuration supports improved coverage when monitors are paired
  • Smooth response and strong feedback rejection suit high-level vocal foldback
  • Compact wedge profile enables practical positioning on busy stages
  • Multi-purpose format serves monitoring, front-of-house and flown applications
  • Touring-focused construction helps the enclosure remain stable during performance
  • Colour Black
  • Coverage (H x V) 90° x 60° Bi-radial horn
  • Dimensions (H x W x D) 340 x 390 x 600mm
  • Frequency Response 65 - 20 kHz
  • Impedance 8 ohm
  • Material Reinforced plywood
  • Maximum SPL 128dB
  • Power Rating 500 watt
  • Warranty 3 Years
  • Weight 23Kg
  • PRODUCT TYPE LOUDSPEAKER MONITOR - LEFT
  • Brand QUEST
  • Config 2-WAY
  • Driver Size 12"
  • Power Type PASSIVE
  • Mount Type FLOOR/POLE MOUNTED
  • Dispersion Angle 90H X 60V
  • Input Connector 2X SPEAKON NL4 IN/OUT
  • Weight (kg) 23 KG
  • HF Driver Size 1.4"
  • LF Driver Size 12"
  • Enclosure REINFORCED BIRCH PLYWOOD
  • Max SPL (dB) 128 DB
  • Hertz 65-18000HZ (±3dB)
  • Max Wattage 500W
  • Unit Dimensions (mm) 340H x 390W x 600D
