> >>>EV ELX200-10W ELX200 10" 2-WAY PASSIVE 1200W 8 OHM WALL/POLE MOUNTED 2-WAY LOUDSPEAKER WHITE
10" Two Way Passive Loudspeaker - 300 Watt View larger

ELECTROVOICE

EV ELX200-10W ELX200 10" 2-WAY PASSIVE 1200W 8 OHM WALL/POLE MOUNTED 2-WAY LOUDSPEAKER WHITE

ELEELX200-10-W

ELX200-10W

New product

EV 10" TWO WAY PASSIVE LOUDSPEAKER - 300 WATT

More details

Balcatta: 0
Geebung: 0

ELX200-10-W Electro-Voice 10 Inch 2-Way Passive Loudspeaker - 300 W White

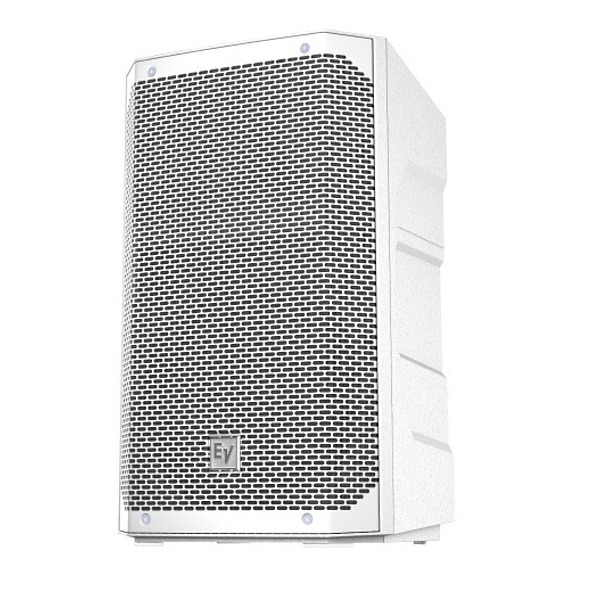

The Electro-Voice ELX200-10-W is a white 10-inch two-way passive full-range loudspeaker pairing an EVS-10M woofer with a DH-1L 1-inch titanium compression driver. Rated for 300 W continuous and 1200 W peak power handling, it produces up to 127 dB maximum SPL across a 65 Hz to 20 kHz frequency response.

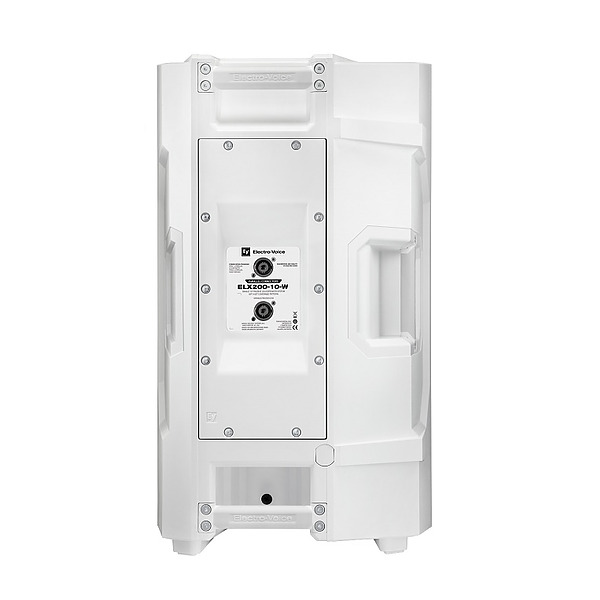

The low-profile polypropylene enclosure balances weight, manageability and structural integrity, complemented by an 18 AWG powder-coated steel grille. Integrated pole mounting, three M10 suspension points and a two-handle design provide practical flexibility for portable professional sound and installed loudspeaker systems.

Key Features

  • Accurate linear response supports clear programme reproduction at high operating levels
  • Controlled dispersion helps maintain a consistent listening experience across the coverage area
  • Titanium compression driver helps preserve detail throughout the high-frequency range
  • White cabinet finish suits venues where visual colour coordination matters
  • Extensive endurance testing adds confidence for demanding professional applications
  • Colour White
  • Coverage (H x V) 90° x 60°
  • Dimensions (H x W x D) 531 x 330 x 319 mm
  • Frequency Response 49 Hz - 22 kHz (-10 dB)
  • Impedance 8 ohm
  • Material Polypropylene
  • Maximum SPL 127 dB
  • Power Rating 300 watt (RMS) 1200 watt (Peak)
  • Sensitivity 90 dB
  • Warranty 3 Years
  • Weight 13.4 kg
  • PRODUCT TYPE 2-WAY LOUDSPEAKER
  • Brand EV
  • Config 2-WAY
  • Driver Size 10"
  • Power Type PASSIVE
  • Mount Type WALL/POLE MOUNTED
  • SPL (DB) 90
  • Dispersion Angle 90H X 60V
  • Input Connector DUAL NL4
  • Weight (kg) 13.4 KG
  • LF Driver Size 10"
  • Enclosure POLYPROPYLENE
  • Max SPL (dB) 127 DB
  • Hertz 49-22000HZ (-10dB)
  • Max Wattage 1200W
  • Unit Dimensions (mm) 531H x 330W x 319D
  • Series ELX200
