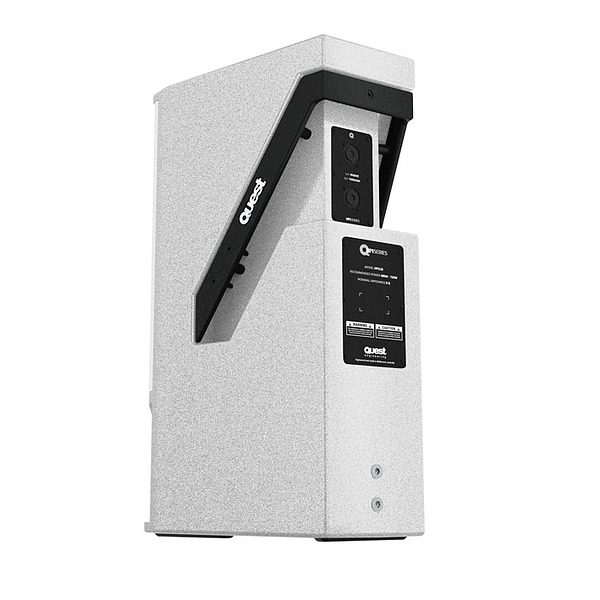

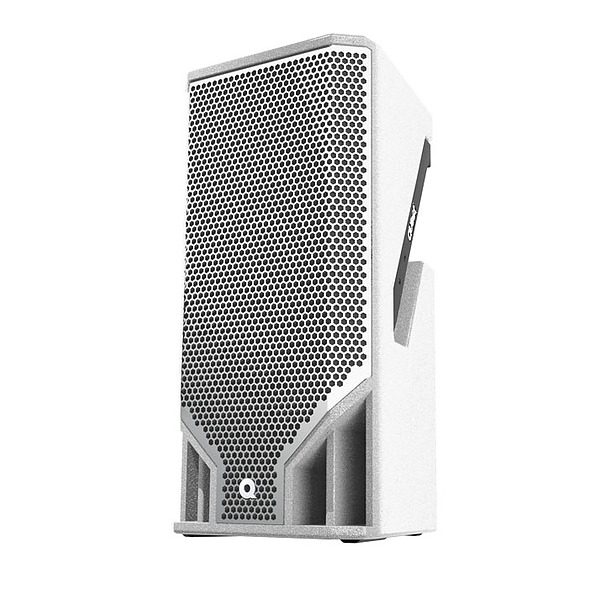

10" Compact Passive Speaker

QUEST HPI110W

New product

10" Compact Passive Speaker

More details

Either mobile live sound or permanent installation,the HPI110 is a lightweight high powered compact speaker system that has a number of key technical innovations to improve performance in real venue environments. Most venues potentially degrade the performance of standard sound systems regardless of the quality. The HPI110 can be installed as a single element or as part of an array of up to three elements. Everything about the HPI110 shows a design aimed at functionality in the real world

The HPI110 mid-high asymmetrical wave guide provides 60 degrees horizontal dispersion at the base of the flare and 30 degrees at the top. Vertical dispersion above the box is limited to 15 degrees. A large format HF driver allows for a relatively low cross over frequency and this means more control over a wider frequency area.

To get the best from the HPI110 system, a multi-purpose light weight flying/installation system has also been developed. All HPI speaker systems in the range have been manufactured to have a very high "power to weight" ratio. An array of three HPI110 speakers has a combined weight of 47 kg. An array of HPI110 speakers makes this one of the most light-weight high powered systems in the world. This is particularly important if the system has to be installed in a heritage building or an existing space with strict weight restrictions for installed devices.

The rigging system is progressive with its "top spine hanging bracket" system for single speaker systems, QR 2/3/4 for wall and flown installations. Additionally, various attachments can be connected to make up almost any type of pan/tilt wall mount, truss mount or multi-box hanging array.

The HPI110 is at home on the road. The lightweight ergonomic design makes it ideal for portable mobile audio. A pair of HPI110 boxes on a "T" piece can be located on a sub bass box with a conventional speaker pole for mobile full range sound. The high power handling and projection characteristics mean a two box array can push a lot of high SPL audio into a medium sized venue space. The long throw characteristics of the system can deliver a surprisingly coherent result at 48 metres, which is outstanding for such a physically small speaker system.

In its most basic form, no system controller or complex system correction electronics is needed to get great sonic results from the HPI110. Just plug it on and play. With lightweight, high power and system scalability, the HPI110 is a truly versatile system.

  • Colour White
  • Dimensions (H x W x D) 641.5 x 306 x 352mm
  • Frequency Response 70Hz - 18kHz
  • Impedance 8 ohm
  • Maximum SPL 130dB
  • Sensitivity 95.5 dB
  • Warranty 2 Years
  • Weight 16.4 kg
