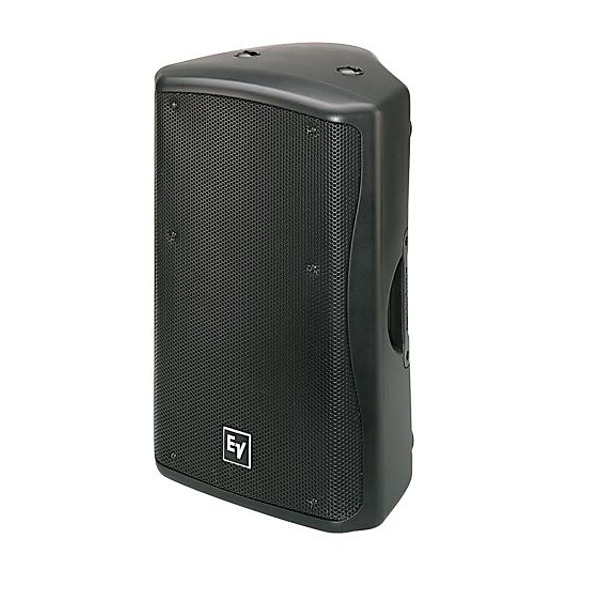

15" Two Way Full Range Speaker View larger

15" Two Way Full Range Speaker

EV ZX5-90B

New product

15" Two Way Full Range Speaker

More details

Megavision Sound & Lighting Osborne Park 9444 6556 www.megavision.com.au
Power Music Productions Claremont 9385 6996 www.powermusic.com.au
Stagecraft Malaga 9249 2700 www.stagecraft.com.au
AudioTechnik Bassendean 9277 4484 www.audiotechnik.com.au
Adasound Public Address Morley 9275 1266 www.adasound.com.au
Totally Sound Bunbury 9725 4599 www.totallysound.com.au

Designed for top notch quality with amazing versatility, the ZX/ZXA series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX/ZXA line is at home in any installed or portable application, from commercial sound to clubs, houses of worship, stages, arenas, and stadiums. Newly designed high power woofers and drivers ensure full range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere.

Lightweight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX/ZXA series represents the next level in advanced loudspeaker technology.

The high tech enclosure uses injection molded high impact polypropylene structural foam to make the Zx5 incredibly durable. The enclosure geometry elements have been carefully designed to provide maximum rigidity and bass response. By design the Zx5 is also a perfect solution for stage monitors by allowing two angles (45° or 55°) without any additional accessories.

Features

  • DVX3150A woofer with forced-air cooling
  • 2 inch ND2 titanium/neodymium HF driver
  • Switchable bi amp or passive crossover operation
  • 90º x 50º coverage horn
  • High sensitivity, 132 dB maximum SPL
  • High impact polypropylene enclosure
  • Wedge shape for monitors at 45º or 55º
  • Up to five anchor plate attachments
  • M8 mounting inserts (10)
  • Integrated handle

  • Colour Black
  • Coverage (H x V) 90 ° x 60 °
  • Dimensions (H x W x D) 692 x 446 x 411 mm
  • Frequency Response 39 - 20000 Hz (-10 dB)
  • Impedance 8 ohm
  • IP Rating IP 24
  • Material High-Impact ABS Plastic
  • Maximum SPL 132 dB
  • Power Rating 600 watt (RMS) 2400 watt (Peak)
  • Sensitivity 98 dB (1W/1m)
  • Warranty 5 Years
  • Weight 22.2 Kg
