> >>QUEST QX500D QX SERIES 2-CHANNEL CLASS D POWER AMPLIFIER 2X50W DANTE/AES67 EUROBLOCK INPUT/OUTPUT 100-240VAC BLACK
New QUEST QX500D QX SERIES 2-CHANNEL CLASS D POWER AMPLIFIER 2X50W DANTE/AES67 EUROBLOCK INPUT/OUTPUT 100-240VAC BLACK View larger

QUEST

QUEST QX500D QX SERIES 2-CHANNEL CLASS D POWER AMPLIFIER 2X50W DANTE/AES67 EUROBLOCK INPUT/OUTPUT 100-240VAC BLACK

QUEQX500D

QX500D

New product

Balcatta: 0
Geebung: 0

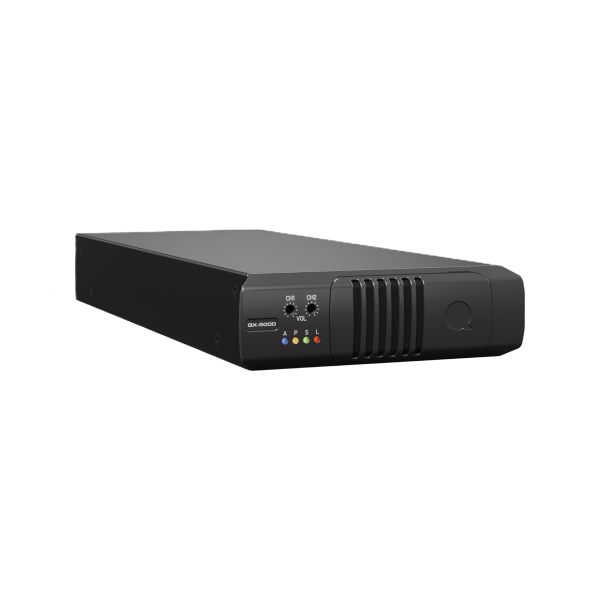

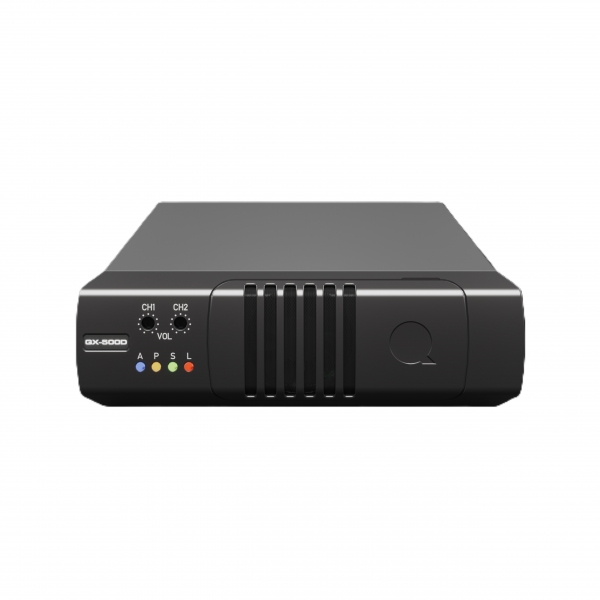

QX500D 2-Channel 500 W Class-D Power Amplifier with Dante and Analogue Inputs

The Quest QX500D is a compact two-channel UMAC Class-D power amplifier delivering up to 2 x 250 W dynamic output into 4 or 8 ohms, or 1 x 500 W in bridge-mono mode for 4-ohm, 8-ohm, 70 V and 100 V systems. Two balanced analogue line inputs are summed per channel with two Dante/AES67 digital audio inputs, supporting network and local audio sources through the same amplifier outputs.

The 1RU-high, one-third-rack-width chassis accommodates three amplifiers across a single rack unit and supports wall or table mounting for distributed installations. System configuration options include per-channel level controls, selectable 80 Hz high-pass and 100 Hz low-pass filters and bridge-mono switching. Protection functions include thermal, over-current, DC and high-frequency protection.

Key Features

  • Intelligent automatic load sensing for Low-Z and 70 V or 100 V applications
  • Full-range audio with low distortion for installed sound systems
  • Amplifier and Dante network status indicators
  • Selectable auto-standby operation for reduced energy consumption when unused
  • Temperature-dependent forced-air cooling
  • Channels 2
  • Colour Black
  • Frequency Response 20 Hz-20 kHz
  • Warranty 60 Months
  • PRODUCT TYPE POWER AMPLIFIER
  • Brand QUEST
  • Power Type 100-240VAC
  • Features WITH DANTE AND ANALOG INPUTS
  • Unit Dimensions (mm) 44.5H x 125W x 330D
  • Amp Power (W) 2x 50W
  • Series QX
  • Network Protocol DANTE / AES67
  • Amplifier Class Class D
  • DSP Processing None
  • Input Impedance 10 kOhm
  • Rack Size 1RU

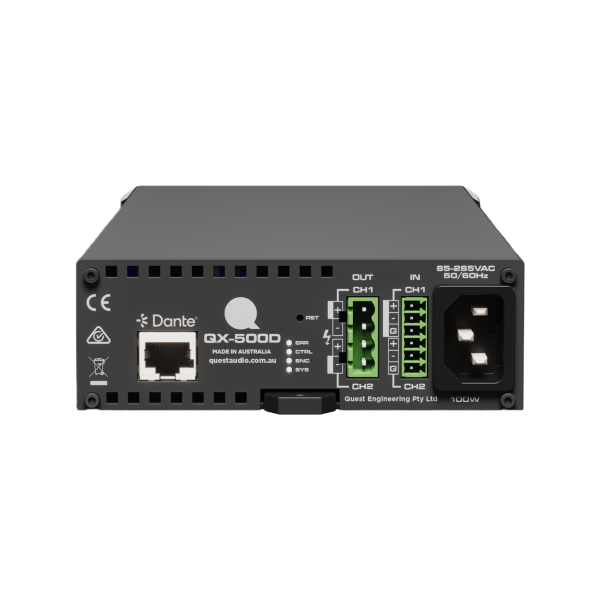

  • Input Connectivity 6-PIN EUROBLOCK / PHOENIX
  • Output Connectivity 4-PIN EUROBLOCK / PHOENIX
  • Gain 26 DB
  • THD LESS THAN 0.005%
  • Loudspeaker System LOW IMPEDANCE & 70V / 100V LINE
