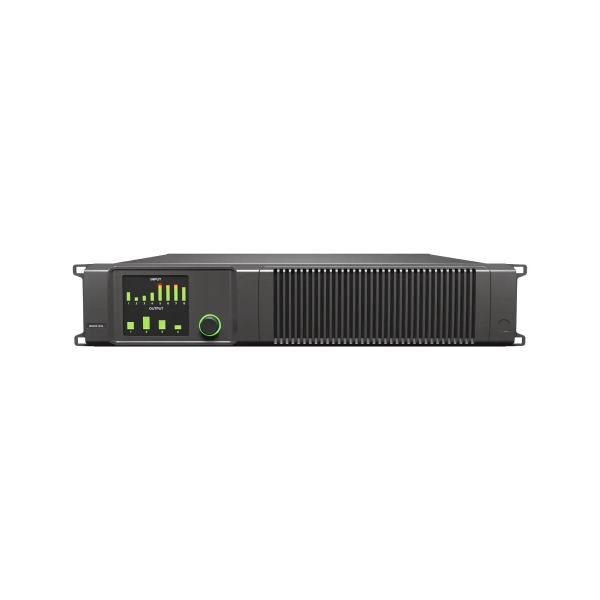

> >>QUEST QXD-5K POWER AMPLIFIER DSP 4X750W 4 OHM 8 OHM 70V 100V CLASS D 2U
QUEST QXD-5K POWER AMPLIFIER DSP 4X750W 4 OHM 8 OHM 70V 100V CLASS D 2U View larger

QUEST

QUEST QXD-5K POWER AMPLIFIER DSP 4X750W 4 OHM 8 OHM 70V 100V CLASS D 2U

QUEQXD-5K

QXD-5K

New product

Balcatta: 0
Geebung: 0

QUEQXD-5K Quest QXD-5K 4 Channel 5000W DSP Power Amplifier - 2U

The QUEQXD-5K is a high-quality Class D installation power amplifier designed for performance-critical commercial and live sound applications. Measuring 482 x 88 x 415mm, it features UMAC Class D architecture, integrated 32bit 96kHz DSP, and professional Neutrik speakON and powerCON connectivity to ensure ultra-low distortion, efficient power delivery, and rock-solid reliability.

Ideal for distributed 70V 100V systems as well as low-Z speaker arrays, it complies with Dante AES67 networking via the optional expansion card and offers comprehensive protection and intuitive front-panel TFT control, making it suitable for arenas auditoriums houses of worship hospitality and large-scale AV installations.

Key Features

  • 4 x 750W at 4Ω or 4 x 400W at 8Ω plus 2 x 2500W bridged with 70V 100V support for versatile system topologies
  • UMAC Class D output stage for ultra-low distortion and high efficiency
  • Integrated 32bit 96kHz DSP with FIR IIR filters peak and RMS limiters plus RJ45 GPIO and front TFT display for easy control
  • Optional Dante AES67 network audio and wideband 20Hz–20kHz ±0.25dB response with THD < 0.008%
  • 2U rackmount format with Neutrik speakON outputs and powerCON mains for professional installation use
  • PRODUCT TYPE POWER AMPLIFER
  • COLOR BLACK
