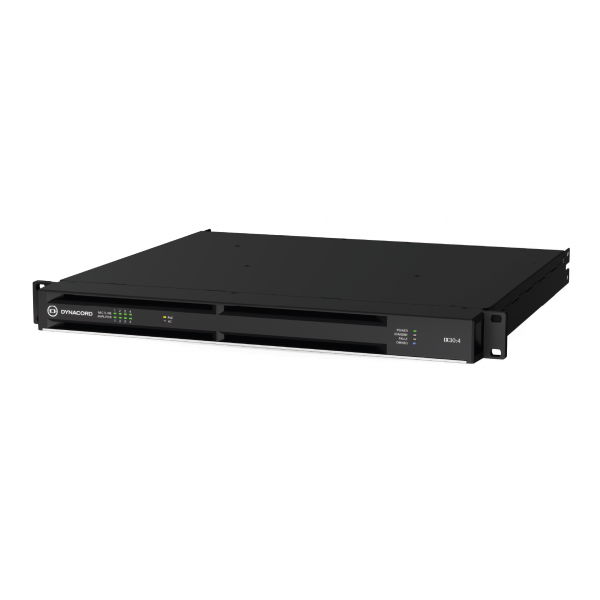

> >>DYNACORD IX30:4 DANTE DSP NETWORKED POWER AMPLIFIER 3000W 4 CH 70V 100V 4 OHM POWERTANK 1U BLACK
DYNACORD DANTE DSP NETWORKED POWER AMPLIFIER 3000W 4 CH 70V 100V 4 OHM POWERTANK 1U View larger

DYNACORD

DYNACORD IX30:4 DANTE DSP NETWORKED POWER AMPLIFIER 3000W 4 CH 70V 100V 4 OHM POWERTANK 1U BLACK

DYNIX30.4

DYNIX30:4

New product

Balcatta: 0
Geebung: 0

DYNIX30:4 DYNACORD IX30:4 Dante DSP Networked Power Amplifier 4CH-3000W-70V-100V-2-8-Ohm-1U Black

The DYNIX30:4 is a high-quality 4-channel Dante networked DSP power amplifier designed for demanding installed-audio systems that need both low-impedance loudspeaker drive and constant-voltage distribution from a single 1U platform. Delivering 3000W total output with Dynacord powerTANK technology, it supports Lo-Z loads from 2Ohm to 8Ohm and Hi-Z direct-drive 70V/100V operation, providing up to 750W per channel (all channels equally driven at 2/2.7/8Ohm or 70V/100V) and up to 1000W per channel capability (2 Ohm or 8 Ohm) for robust headroom in real-world venue sound.

Ideal for sports venues, houses of worship, live performance spaces, and hospitality installs, it combines 8x8 Dante audio (48/96kHz switchable) with OCA/AES70 control, plus four mic/line Euroblock inputs with switchable +48V phantom power that can act as Dante break-in points for flexible system routing. A native 96kHz DSP engine with a 12x12 matrix mixer, EQ, dynamics, FX, FIR-Drive processing (up to 1025 taps), pilot-tone supervision up to 30kHz, and automated system logic via an MXE-style TaskEngine delivers intelligent routing, monitoring, and failover, while ecoRAIL efficiency and ghostPOWER via PoE keep DSP, Dante networking, and mic/line inputs active even during mains loss for maximum uptime.

Key Features

  • 3000W total 4-channel powerTANK amplifier supports 2-8 Ohm Lo-Z plus direct-drive 70V/100V distributed speaker lines
  • 8x8 Dante networking with integrated dual RJ45 switch, glitch-free PRIMARY-SECONDARY redundancy and RSTP for resilient audio transport
  • 96kHz DSP with 12x12 matrix mixer, user EQ (12 filters), delays (up to 2000ms), crossovers, limiters, FIR up to 1025 taps, and load monitoring with pilot tones to 30kHz
  • 4 mic-line inputs on Euroblock with 0-60dB gain, +48V phantom per input, and Dante break-in capability for easy local source integration
  • 1U 19-inch black chassis with front-to-rear supervised cooling, comprehensive protection circuitry, ecoRAIL high-efficiency design, and ghostPOWER PoE backup for continuous control and monitoring
  • PRODUCT TYPE POWER AMPLIFER
  • COLOR BLACK
