> >>DYNACORD IX60:8 DANTE DSP NETWORKED POWER AMPLIFIER 8CH 6000W 70V 100V 4 OHM 1U BLACK

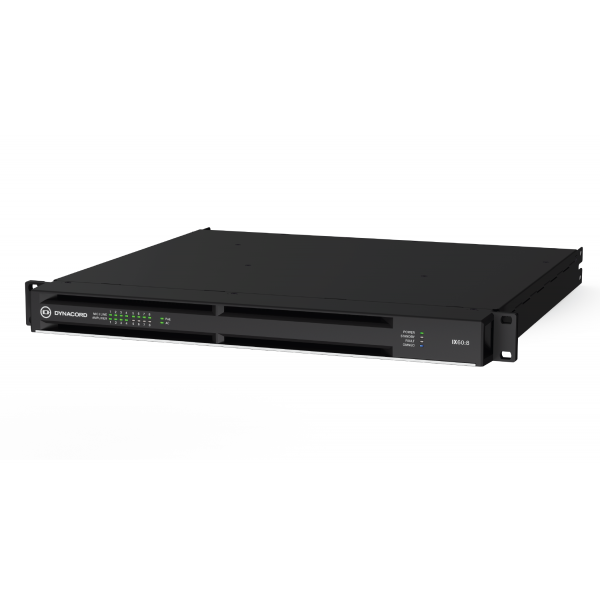

DYNACORD DANTE DSP NETWORKED POWER AMPLIFIER 6000W 8 CH 70V 100V 4 OHM POWERTANK 1U View larger

DYNACORD

DYNACORD IX60:8 DANTE DSP NETWORKED POWER AMPLIFIER 8CH 6000W 70V 100V 4 OHM 1U BLACK

DYNIX60.8

DYNIX60:8

New product

Balcatta: 0
Geebung: 0

DYNIX60:8 DYNACORD IX60:8 Dante DSP Networked Power Amplifier 8CH 6000W 70V 100V 2-8 Ohm 1U Black

The DYNIX60:8 is a high-quality 8-channel Dante DSP networked power amplifier designed for professional installed sound, multi-zone audio, and high-reliability distributed speaker systems. Delivering 6000W total output with Dynacord powerTANK technology, it drives both Lo-Z loads (2 Ohm to 8 Ohm) and Hi-Z direct-drive 70V/100V lines, with up to 750W per channel (all channels equally driven at 2 Ohm, 2.7 Ohm, 8 Ohm, 70V or 100V) and up to 1000W per channel headroom for dynamic peaks.

Ideal for sports venues, houses of worship, hospitality, and live performance spaces, it combines 8x8 Dante audio (48/96kHz switchable) with OCA/AES70 control, eight mic-line inputs that can serve as Dante break-in points, and a natively operating 96kHz DSP featuring a full 16x16 matrix mixer, EQ, dynamics, Dynacord FX, and FIR-Drive speaker processing up to 1025 taps. Built for mission-critical uptime, ghostPOWER via PoE (IEEE 802.3af) keeps DSP, Dante networking, and mic-line inputs active during mains loss, while ecoRAIL efficiency and comprehensive monitoring including pilot-tone supervision up to 30kHz support lower operating costs and proactive system maintenance in a compact 1U black 19-inch rack chassis.

Key Features

  • 8-channel 6000W powerTANK amplifier supports Lo-Z 2-8 Ohm plus direct-drive 70V and 100V distributed speaker lines
  • 8x8 Dante networking with integrated switch and glitch-free redundancy modes for robust AV over IP audio transport
  • 96kHz DSP with 16x16 matrix mixer stereo FX advanced EQ dynamics delays and FIR processing up to 1025 taps for precise loudspeaker tuning
  • System supervision tools including pilot-tone detection on all inputs pilot-tone generation on Dante and amplifier outputs up to 30kHz plus impedance measurement and load monitoring
  • Install-ready 1U 19-inch black chassis with front-to-rear supervised cooling ecoRAIL efficiency and ghostPOWER PoE backup for continuous control and monitoring
  • PRODUCT TYPE POWER AMPLIFER
  • COLOR BLACK
