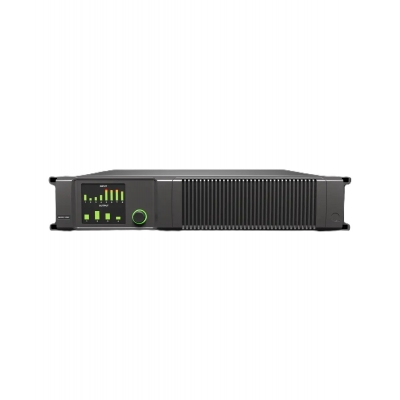

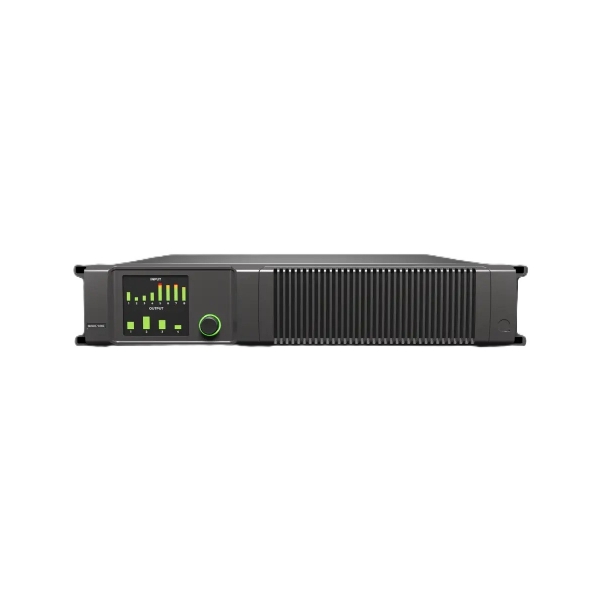

> >>QUEST QXD-10KD POWER AMPLIFIER DANTE AES67 4X2500W 70V 100V 4 OHM CLASS D 2U
QUEST QXD-10KD POWER AMPLIFIER DANTE AES67 4X2500W 70V 100V 4 OHM CLASS D 2U View larger

QUEST

QUEST QXD-10KD POWER AMPLIFIER DANTE AES67 4X2500W 70V 100V 4 OHM CLASS D 2U

QUEQXD-10KD

QXD-10KD

New product

Balcatta: 0
Geebung: 0

QUEQXD-10KD Quest QXD-10KD Power Amplifier Dante AES67 2U 4x2500W DSP - Single Unit

The QUEQXD-10KD is a high-quality 4-channel Class-D installation power amplifier designed for large-scale commercial audio, performance venues, houses of worship, and stadiums. Measuring 2RU at 482 x 88 x 415mm, it features UMAC Class-D output stages with 32bit 96kHz DSP including FIR IIR processing, peak and RMS limiters, and onboard Dante AES67 network audio to ensure ultra-low distortion, clean headroom, and reliable system protection.

Ideal for low-Z and 70V 100V distributed loudspeaker systems, it delivers up to 10000W total power 4x2500W at 4Ω or 4x1500W at 8Ω with intuitive front TFT control, RJ45 and GPIO monitoring, Neutrik speakON outputs and powerCON mains, and user-selectable fan-forced cooling, making it suitable for fixed installations in theatres education corporate and public address environments.

Key Features

  • 4x2500W at 4Ω or 4x1500W at 8Ω plus 70V 100V modes with 20Hz–20kHz ±0.25dB response
  • UMAC Class-D architecture with <0.008 percent THD and >108dBA dynamic range for pristine audio
  • 32bit 96kHz DSP with FIR IIR filters peak RMS limiters delay and Quest speaker libraries
  • Dante AES67 compliant network audio plus RJ45 and GPIO control with high-resolution TFT interface
  • 2RU rackmount with Neutrik speakON and powerCON connectors supplied with mains cable and Euroblock plugs
  • PRODUCT TYPE POWER AMPLIFER
  • COLOR BLACK
