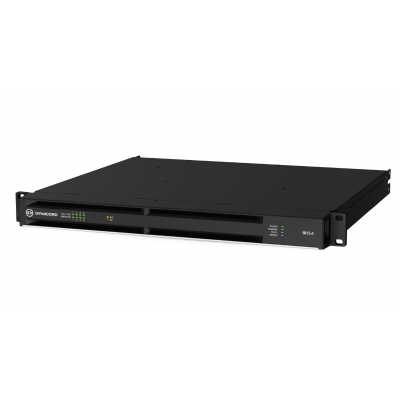

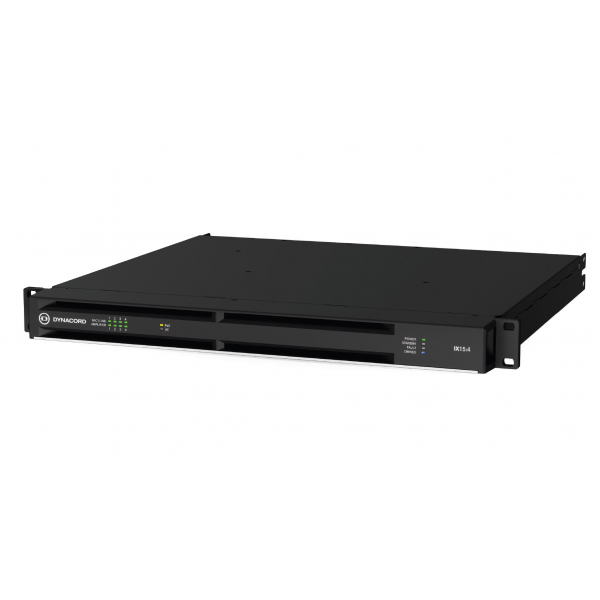

> >>DYNACORD IX15:4 DANTE DSP NETWORKED POWER AMPLIFIER 4CH 1500W 70V 100V 4 OHM POWERTANK 1U BLACK
DYNACORD DANTE DSP NETWORKED POWER AMPLIFIERW 1500W 4 CH 70V 100V 4 OHM POWERTANK 1U View larger

DYNACORD

DYNACORD IX15:4 DANTE DSP NETWORKED POWER AMPLIFIER 4CH 1500W 70V 100V 4 OHM POWERTANK 1U BLACK

DYNIX15.4

DYNIX15:4

New product

Balcatta: 0
Geebung: 0

DYNIX15:4 DYNACORD IX15:4 Dante DSP Networked Power Amplifier 4CH-1500W-70V-100V-4-Ohm-1U Black

The DYNIX15:4 is a high-quality 4-channel Dante networked DSP power amplifier designed for commercial installed sound systems requiring flexible low-impedance and constant-voltage loudspeaker distribution. Delivering 1500W total output with Dynacord powerTANK technology, it supports Lo-Z operation down to 2 Ohm and Hi-Z direct drive at 70V/100V, with up to 375W per channel when all channels are equally driven and peak output capability up to 33A (Lo-Z/4 Ohm) and 145V peak (Hi-Z/8 Ohm) per channel for confident headroom.

Ideal for venues such as houses of worship, hospitality, performance spaces, and sports facilities, it integrates an advanced 96kHz DSP matrix mixer with FIR speaker processing, comprehensive EQ/dynamics, pilot-tone supervision, and glitch-free network redundancy. With 8x8 Dante audio, OCA/AES70 control, four mic/line inputs with switchable +48V phantom power for Dante break-in, and ghostPOWER via PoE (IEEE 802.3af) to keep DSP and networking alive during mains loss, it delivers dependable system control, monitoring, and energy-efficient operation in a compact 1U 19-inch black chassis.

Key Features

  • 4-channel 1500W powerTANK amplifier supports 2Ohm to 8Ohm Lo-Z plus 70V/100V direct-drive distributed audio
  • 8x8 Dante networking with 48/96kHz switchable audio and OCA/AES70 remote control for scalable system integration
  • 96kHz DSP with 12x12 matrix mixer, FX, FIR (up to 1025 taps), crossovers, limiters, delay, and load monitoring with pilot tones up to 30kHz
  • ghostPOWER via PoE (IEEE 802.3af) maintains DSP, Dante, and mic/line inputs for resilient failover and continuous control
  • Rack-ready 1U 19-inch design with Euroblock I/O, front-to-rear supervised cooling, and comprehensive protection circuits for reliable installs
  • PRODUCT TYPE POWER AMPLIFER
  • COLOR BLACK
