> >>QUEST QXD-1KD POWER AMPLIFIER 4X250W 70V 100V 4 OHM 8 OHM DANTE AES67 1U

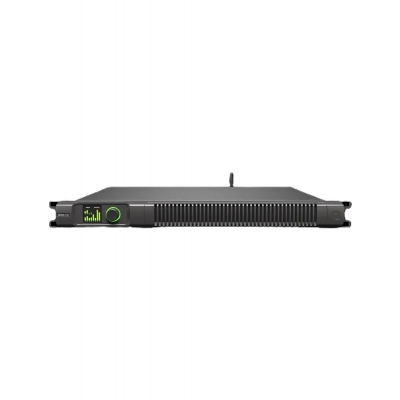

QUEST QXD-1KD POWER AMPLIFIER 4X250W 70V 100V 4 OHM 8 OHM DANTE AES67 1U View larger

QUEST

QUEST QXD-1KD POWER AMPLIFIER 4X250W 70V 100V 4 OHM 8 OHM DANTE AES67 1U

QUEQXD-1KD

QXD-1KD

New product

Balcatta: 0
Geebung: 0

QUEQXD-1KD Quest QXD-1KD Power Amplifier Dante AES67 1U 4x250W DSP - Single Unit

The QUEQXD-1KD is a high-quality 4-channel Class-D installation power amplifier designed for professional AV, commercial audio, and fixed-install sound systems. Measuring 1RU at 482 x 44 x 345mm, it features UMAC Class-D output stages and a 32bit 96kHz DSP with FIR IIR processing, peak and RMS limiters, and Quest speaker libraries to ensure ultra-low distortion, efficient operation, and reliable loudspeaker protection.

Ideal for low-Z or 70V 100V distributed loudspeaker applications, it delivers up to 4x250W at 4Ω or 8Ω with bridged 2x500W modes, and offers a front-panel TFT display with RJ45 and GPIO control plus onboard Dante AES67 network audio, making it suitable for corporate, education, hospitality, and worship environments where space, efficiency, and networked control are critical.

Key Features

  • 4x250W at 4Ω or 8Ω with 2x500W bridged for 70V 100V lines enabling flexible system design
  • UMAC Class-D architecture delivers <0.008 percent THD and >103dBA dynamic range for pristine audio
  • 32bit 96kHz DSP with FIR IIR filters peak RMS limiters delay and integrated Quest presets
  • Dante AES67 compliant audio networking plus RJ45 and GPIO with high-resolution TFT interface
  • 1RU rackmount supplied with IEC mains cable Euroblock plugs and Wi-Fi antenna for installation readiness
  • PRODUCT TYPE POWER AMPLIFER
  • COLOR BLACK
