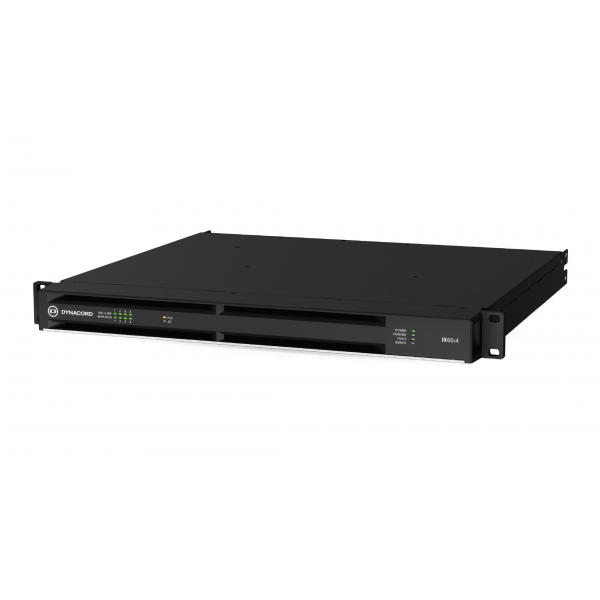

> >>DYNACORD IX60:4 DANTE DSP NETWORKED POWER AMPLIFIER 4CH 6000W 70V 100V 4 OHM 1U BLACK
DYNACORD DANTE DSP NETWORKED POWER AMPLIFIER 6000W 4 CH 70V 100V 4 OHM POWERTANK 1U View larger

DYNACORD

DYNACORD IX60:4 DANTE DSP NETWORKED POWER AMPLIFIER 4CH 6000W 70V 100V 4 OHM 1U BLACK

DYNIX60.4

DYNIX60:4

New product

Balcatta: 0
Geebung: 0

DYNIX60:4 DYNACORD IX60:4 Dante DSP Networked Power Amplifier 4CH-6000W 70V 100V 2-8Ohm 1U Black

The DYNIX60:4 is a high-quality 4-channel Dante networked DSP power amplifier designed for demanding installed sound applications that require flexible low-impedance loudspeaker drive and direct 70V 100V constant-voltage distribution. Delivering 6000W total output with Dynacord powerTANK technology, it provides up to 1500W per channel (all channels equally driven at 4 Ohm) and direct-drive performance for distributed speaker lines, housed in a compact 1U 19-inch chassis measuring 483 x 44.1 x 447 mm and finished in black for clean rack integration.

Ideal for sports venues, houses of worship, live performance spaces, and hospitality installations, it features 8x8 Dante audio with an integrated network switch, OCA-AES70 remote control, and four mic-line inputs usable as Dante break-in with switchable +48V phantom power. A natively operating 96kHz DSP with a fully equipped 12x12 matrix mixer, EQ, dynamics, Dynacord FX, FIR-Drive up to 1025 taps, pilot-tone supervision up to 30kHz, and source fallback delivers intelligent routing, monitoring, and protection, while ecoRAIL high-efficiency design and ghostPOWER via PoE keep DSP, Dante, and mic-line inputs active even if mains power is lost for maximum system uptime.

Key Features

  • 6000W total 4-channel powerTANK amplifier supports Hi-Z direct drive 70V-100V and Lo-Z operation from 2 Ohm to 8 Ohm for versatile zone and point-source systems
  • 8x8 Dante networking with integrated switch plus OCA-AES70 control for scalable networked audio distribution and centralized management
  • 96kHz DSP with 12x12 matrix mixer, stereo FX, comprehensive EQ and dynamics, delays up to 2000ms, and FIR speaker processing up to 1025 taps
  • Advanced supervision and protection including pilot-tone detection on all inputs, pilot-tone generation on outputs up to 30kHz, impedance measurement, load monitoring, and peak anticipation and RMS-TEMP limiting
  • Install-ready 1U rack design with Euroblock I-O, front-to-rear supervised cooling, ecoRAIL energy savings, and ghostPOWER PoE backup for resilient operation
  • PRODUCT TYPE POWER AMPLIFER
  • COLOR BLACK
