> >>DYNACORD IX30:8 DANTE DSP NETWORKED POWER AMPLIFIER 3000W 8 CH 70V 100V 4 OHM POWERTANK 1U BLACK

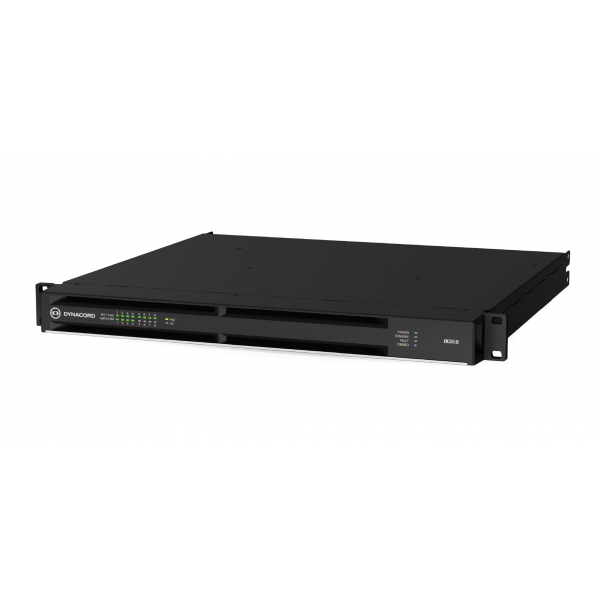

DYNACORD DANTE DSP NETWORKED POWER AMPLIFIER 3000W 8 CH 70V 100V 4 OHM POWERTANK 1U View larger

DYNACORD

DYNACORD IX30:8 DANTE DSP NETWORKED POWER AMPLIFIER 3000W 8 CH 70V 100V 4 OHM POWERTANK 1U BLACK

DYNIX30.8

DYNIX30:8

New product

Balcatta: 0
Geebung: 0

DYNIX30:8 DYNACORD IX30:8 Dante DSP Networked Power Amplifier 8CH 3000W 70V 100V 2-8 Ohm 1U Black

The DYNIX30:8 is a high-quality 8-channel Dante networked DSP power amplifier designed for scalable installed-audio systems that require both low-impedance loudspeaker drive and constant-voltage distribution from a compact 1U rack platform. Delivering 3000W total output with Dynacord powerTANK technology, it supports Lo-Z loads from 2 Ohm to 8 Ohm and Hi-Z direct-drive 70V/100V operation, providing up to 375W per channel when all channels are equally driven plus per-channel headroom up to 1000W (2 Ohm or 8 Ohm), 33A peak current (Lo-Z/4 Ohm), and 145V peak output (Hi-Z/8 Ohm) for clean, confident performance across zones.

Ideal for sports venues, houses of worship, live performance spaces, and hospitality environments, it combines 8x8 Dante audio with OCA/AES70 remote control and eight mic-line inputs that can be used as Dante break-in points for flexible routing and local source integration. A native 96kHz DSP engine with a fully featured 16x16 matrix mixer, EQ, dynamics, Dynacord FX, FIR-Drive processing up to 1025 taps, pilot-tone supervision and load monitoring up to 30kHz, and an MXE-style TaskEngine for automation, scheduling, and third-party integration delivers reliable system control, monitoring, and intelligibility, while ecoRAIL efficiency and ghostPOWER via PoE keep DSP, Dante networking, and mic-line inputs active even when mains power is lost.

Key Features

  • 3000W total 8-channel powerTANK amplifier supports 2-8 Ohm Lo-Z plus direct-drive 70V and 100V distributed speaker lines
  • 8x8 Dante networking (48/96kHz switchable) with OCA/AES70 control for seamless integration into modern AV-over-IP installed sound systems
  • 96kHz DSP with 16x16 matrix mixer, stereo FX, comprehensive EQ and dynamics, delays up to 2000ms, and FIR speaker processing up to 1025 taps
  • Advanced supervision tools including pilot-tone detection on all inputs, pilot-tone generation up to 30kHz, impedance measurement, and load monitoring for proactive maintenance
  • ghostPOWER via PoE (IEEE 802.3af) plus ecoRAIL high-efficiency design in a 1U 19-inch black chassis with supervised front-to-rear cooling and extensive protection circuits
  • PRODUCT TYPE POWER AMPLIFER
  • COLOR BLACK
