> >>HH M-SERIES MZ-140DX 2x 140W COMPACT 2-CHANNEL INSTALL ZONE AMPLIFIER BLACK
HH MZ-SERIES 2 CHANNEL INSTALL ZONE AMPLIFIER BLACK View larger
Previous Next

HH Electronics

HH M-SERIES MZ-140DX 2x 140W COMPACT 2-CHANNEL INSTALL ZONE AMPLIFIER BLACK

HHAMZ-140DX

MZ-140DX

New product

HH MZ-140DX 2X140W INSTALL ZONE AMPLIFIER 70V 100V 4/8 OHM USB-C DSP 1U BLACK

More details

Balcatta: 0
Geebung: 0

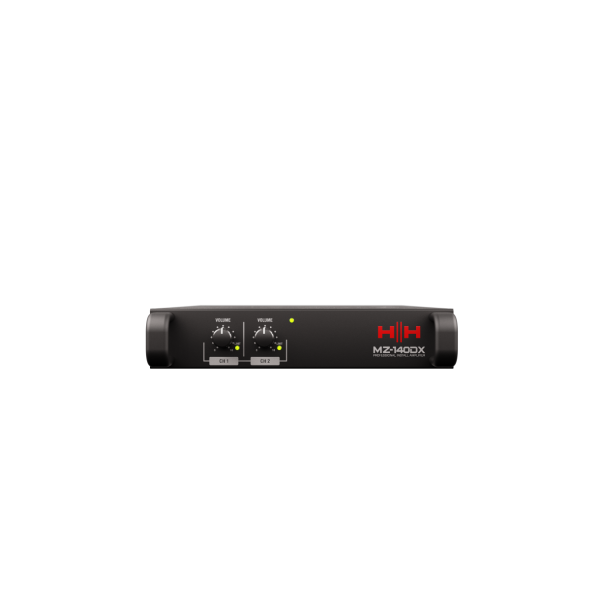

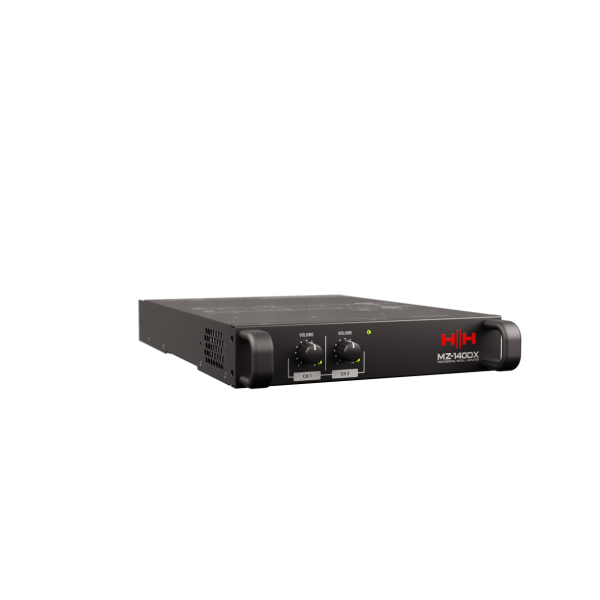

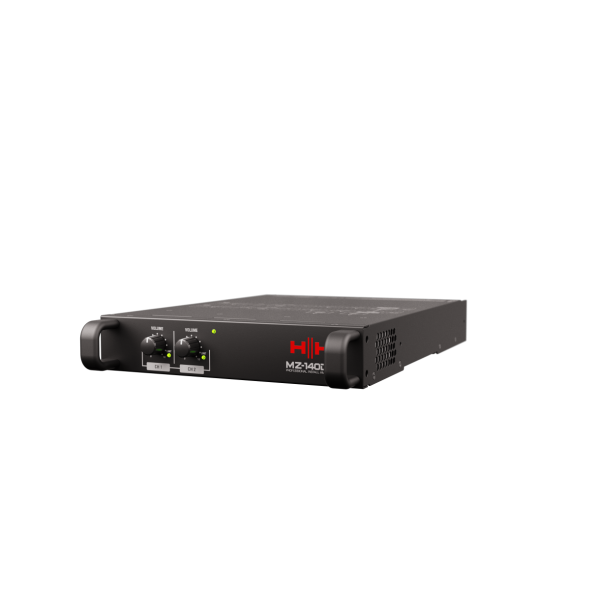

MZ-140DX 2 Channel Installation Zone Amplifier

The MZ-140DX is a compact yet versatile 2-channel installation amplifier designed for smaller installations or for expanding larger systems. Delivering 140W RMS per channel with a total system power of 280W RMS, it provides reliable and consistent performance with dynamic power allocation that allows channel 1 to draw up to the full 280W RMS when required, provided total system power is not exceeded.

The MZ-140DX supports both 70/100V (Hi-Z) and 4/8 Ohm (Lo-Z) systems, offering flexibility for a wide range of installation applications. Two balanced 3.5mm Euroblock inputs allow flexible input assignment in 1:1 or 1:All configurations, while the simple front panel layout and scribble strips make setup and identification quick and intuitive for installers.

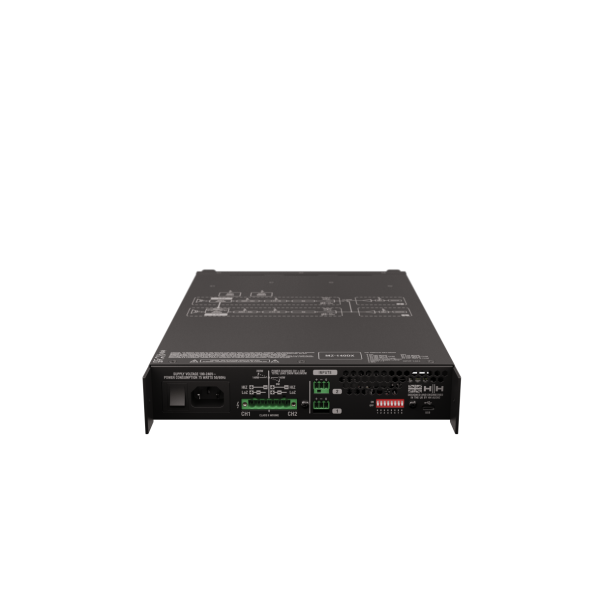

A rear panel USB-C input enables class-compliant audio streaming at 48kHz. The MZ-CTRL desktop application provides deep customisation, allowing control of input sensitivity, HPF, delay, phase, EQ, compression, routing, crossover and limiter settings, enabling a system precisely tailored to the application.

The compact half-rack 1U design makes the MZ-140DX ideal for tight spaces, with included hardware for surface mounting or pairing two units in a standard 19-inch rack. Designed with system expansion in mind, it is the perfect companion for the MZ-64P zone controller and preamplifier.

Key Features

  • 2 channel installation zone amplifier
  • 140W RMS per channel with 280W total system power
  • Dynamic power allocation between channels
  • Supports 70/100V and 4/8 Ohm speaker systems, selectable per output
  • USB-C class-compliant audio streaming at 48kHz
  • Advanced DSP control via MZ-CTRL application
  • Compact half-rack 1U form factor with rack and surface mount options.
  • PRODUCT TYPE AMPLIFIER
  • COLOR BLACK
