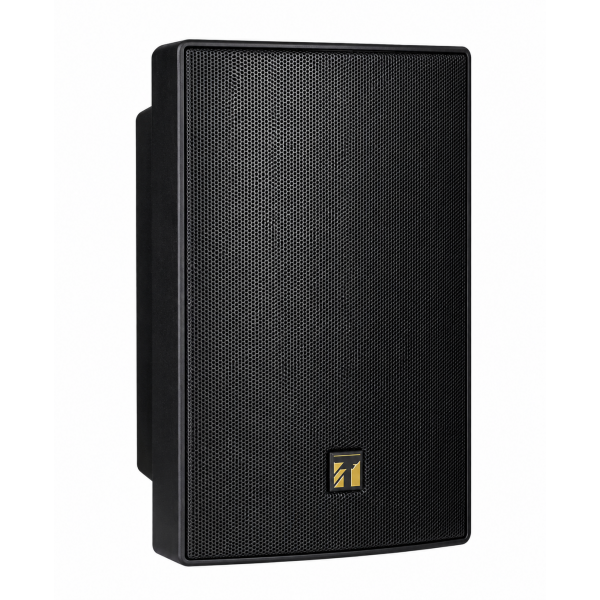

> >>>TOA 487038 BS 12CM 2-WAY, BASS REFLEX 100V/70V LINE 30W IPX4 8 OHM WALL MOUNTED COMPACT SPEAKER BLACK
New TOA 487038 BS 12CM 2-WAY, BASS REFLEX 100V/70V LINE 30W IPX4 8 OHM WALL MOUNTED COMPACT SPEAKER BLACK View larger

TOA

TOA 487038 BS 12CM 2-WAY, BASS REFLEX 100V/70V LINE 30W IPX4 8 OHM WALL MOUNTED COMPACT SPEAKER BLACK

TOABS1030B

487038

New product

Balcatta: 0
Geebung: 0

TOA BS-1030B 30W 2-Way Wall-Mount Compact Speaker - Black

The TOA BS-1030B is a compact 30 W two-way bass-reflex speaker designed for clear announcements and music playback. Its 12 cm cone driver and dome tweeter provide an 80 Hz to 20 kHz frequency response, supporting installed public address and background music applications.

Selectable 8 Ohm 70 V and 100 V operation enables use with low-impedance or distributed high-impedance audio systems. The supplied bracket supports vertical or horizontal mounting, while IPX4 water protection allows installation in indoor areas and sheltered outdoor positions such as beneath eaves where the speaker is not directly exposed to rain.

Key Features

  • Multiple transformer tap settings help balance local output with amplifier loading
  • Defined 90 dB output at 1 W and 1 m assists with acoustic system planning
  • Compact cabinet profile conserves wall space in installed audio layouts
  • Broad operating-temperature tolerance accommodates varied ambient conditions
  • Graphite-black finish supports a discreet and consistent installed appearance
  • Colour Black
  • Impedance 8 ohm
  • IP Rating IPX4
  • Sensitivity 90 dB
  • Warranty 5 Years
  • PRODUCT TYPE COMPACT SPEAKER
  • Brand TOA
  • Config 2-WAY; BASS REFLEX
  • Driver Size 12CM
  • Power Type 100V/70V LINE
  • Mount Type WALL MOUNTED
  • SPL (DB) 90
  • Input Connector 2-CORE CABTYRE SPEAKER CABLE
  • Weight (kg) 2.5 KG
  • HF Driver Size 2.5"
  • LF Driver Size 12"
  • Enclosure ABS RESIN
  • Hertz 80-20000HZ
  • Max Wattage 30W
  • Max 100V Tap (W) 30W
  • 100V Taps List 30W; 20W; 15W; 10W; 5W
  • Max 70V Tap (W) 30W
  • 70V Taps List 30W; 20W; 15W; 10W; 5W
  • Unit Dimensions (mm) 290H x 196W x 150D
  • Pair SINGLE
  • Series BS
