> >>>HH TNI-W4-WH TNI 4" 2-WAY, BASS REFLEX PASSIVE 180W 8 OHM SATELLITE WALL SPEAKER WHITE
4" WALL MOUNT SPEAKER - 30 WATT View larger
Previous Next

HH TNI-W4-WH TNI 4" 2-WAY, BASS REFLEX PASSIVE 180W 8 OHM SATELLITE WALL SPEAKER WHITE

HHATNI-W4-WH

TNi-W4-WH

New product

HH ELECTRONICS TNI-W4-WH 4 INCH WALL MOUNT PASSIVE SPEAKER 30W 70V/100V/8OHM WHITE

More details

TNi-W4-WH HH 4 Inch Two-Way Passive Wall Speaker - White 70 V 100 V or 8 Ohm

The HH TNi-W4-WH is a compact passive two-way bass-reflex wall loudspeaker combining a 4-inch woofer with a 1-inch dome tweeter. Its selector provides 30 W, 15 W, 6 W and 3 W settings for 100 V lines, 15 W, 7.5 W, 3 W and 1.5 W for 70 V systems, or direct 8-ohm operation.

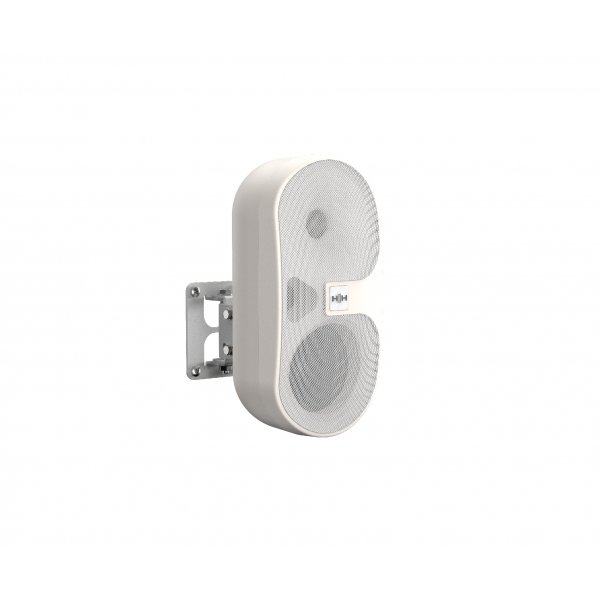

The white finish suits installed audio systems requiring a lighter enclosure appearance, while the ABS cabinet and circular steel mesh grille form a practical surface-mounted design. An adjustable steel bracket supports portrait or landscape positioning for flexible sound coverage.

Key Features

  • 125 Hz to 18 kHz response at -3 dB supports intelligible speech and balanced background music
  • 88 dB sensitivity and 111 dB calculated maximum SPL provide defined output from a compact cabinet
  • 90° horizontal by 80° vertical dispersion helps distribute sound across the listening area
  • 45 W AES and 180 W peak handling in 8-ohm mode provide capacity for low-impedance installations
  • 295 x 145 x 222 mm dimensions help installers plan wall space and mounting clearances
  • Colour White
  • Impedance 8 ohm
  • Sensitivity 88 dB
  • Warranty 2 Years
  • PRODUCT TYPE SATELLITE WALL SPEAKER
  • COLOR WHITE
  • Brand HH
  • Config 2-WAY; BASS REFLEX
  • Driver Size 4"
  • Power Type PASSIVE
  • Dispersion Angle 90H X 80V

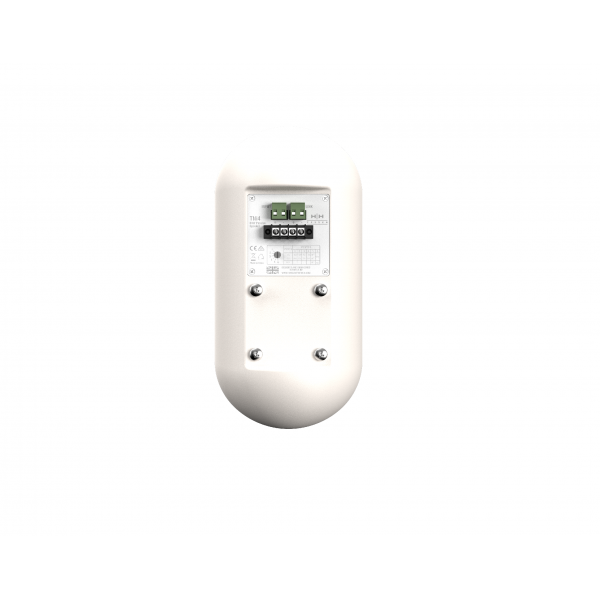

  • Input Connector EUROBLOCK AND M4 TERMINALS
  • Peak Power (W) 180W
  • Weight (kg) 2.8 KG
  • HF Driver Size 1"
  • LF Driver Size 4"
  • Enclosure ABS PLASTIC
  • Max SPL (dB) 111 DB
  • Hertz 80-20000HZ
  • Max Wattage 180W
  • Max 100V Tap (W) 30W
  • 100V Taps List 30W;15W;6W;3W
  • Max 70V Tap (W) 15W
  • 70V Taps List 15W;7.5W;3W;1.5W
  • Unit Dimensions (mm) 295H x 145W x 222D
  • Series TNi
