> >>>HH TNI-W4-BK 4" 2-WAY, BASS REFLEX 100V LINE 30W 8 OHM SATELLITE WALL SPEAKER BLACK
4" WALL MOUNT SPEAKER - 30 WATT View larger
Previous Next

HH TNI-W4-BK 4" 2-WAY, BASS REFLEX 100V LINE 30W 8 OHM SATELLITE WALL SPEAKER BLACK

HHATNI-W4-BK

TNI-W4-BK

New product

HH ELECTRONICS TNI-W4-BK 4 INCH WALL MOUNT PASSIVE SPEAKER 30W 70V/100V/8OHM BLACK

More details

Balcatta: 0
Geebung: 0

TNI-W4-BK HH TNi-W4 2-Way 100 V 8 Ohm Wall Speaker - Black

The TNI-W4-BK is an HH TNi-W4 passive 2-way bass reflex wall speaker in a black finish, built with a 4 inch woofer and 1 inch dome tweeter. It supports 70 V/100 V distributed audio lines as well as 8 Ohm operation, with 100 V power tap options up to 30 W and a frequency response of 80 Hz - 20 kHz.

Designed for installed audio applications, the TNi-W4 combines a lightweight ABS enclosure with a black circular steel mesh grille and an adjustable steel mounting bracket. Euroblock and M4 screw input/output terminals support practical installation, while the 295 x 145 x 222 mm cabinet helps installers plan wall-mounted speaker placement with confidence.

Key Features

  • Flexible 70 V/100 V and 8 Ohm operation supports a range of commercial audio system designs.
  • 2-way bass reflex design helps deliver balanced wall-mounted sound coverage.

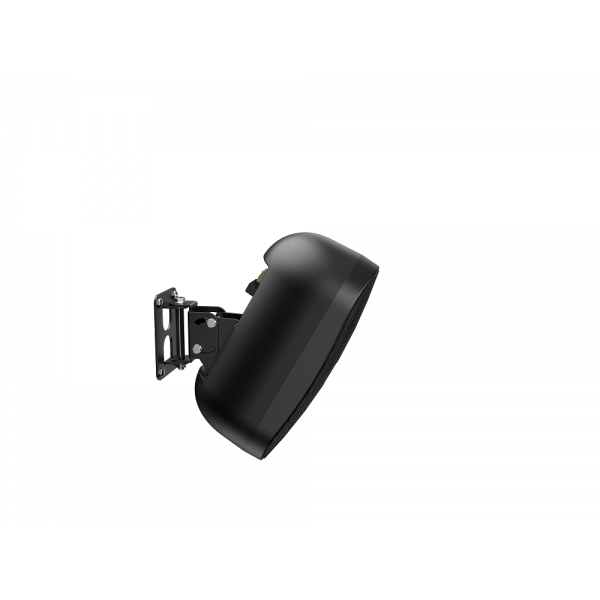

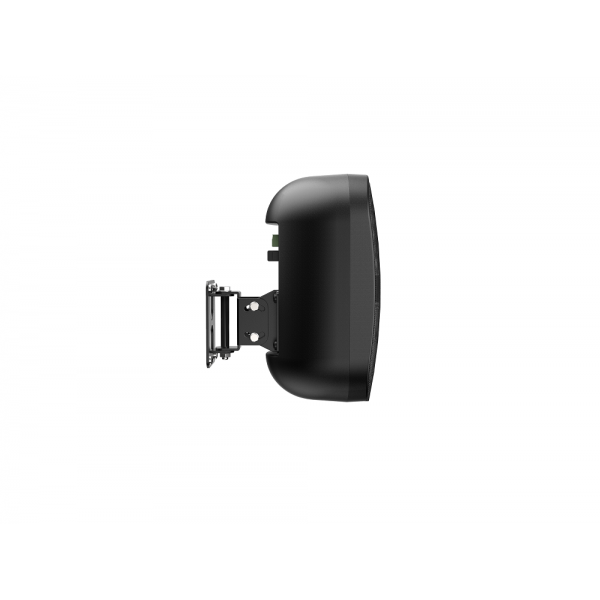

  • Included adjustable steel bracket supports straightforward positioning during installation.

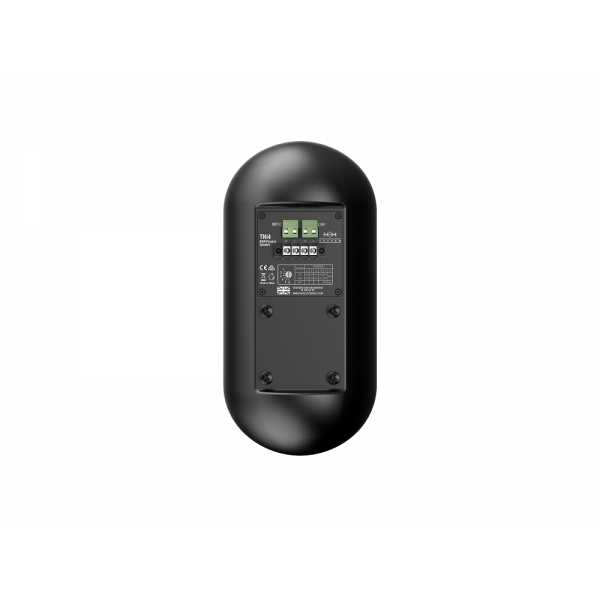

  • Euroblock and M4 screw terminals give installers practical connection options on site.
  • Black enclosure and steel mesh grille help the speaker suit darker interior finishes.
  • Colour Black
  • Impedance 8 ohm
  • Sensitivity 88 dB
  • Warranty 2 Years
  • PRODUCT TYPE SATELLITE WALL SPEAKER
  • COLOR BLACK
  • Brand HH
  • Config 2-WAY; BASS REFLEX
  • Driver Size 4"
  • Power Type 70V/100V LINE
  • Mount Type WALL MOUNTED
  • Dispersion Angle 90H X 80V
  • Input Connector EUROBLOCK AND M4 TERMINALS
  • Peak Power (W) 180W
  • Weight (kg) 2.8 KG
  • HF Driver Size 1"
  • LF Driver Size 4"
  • Enclosure ABS PLASTIC
  • Max SPL (dB) 111 DB
  • Hertz 80-20000HZ
  • Max Wattage 180W
  • Max 100V Tap (W) 30W
  • 100V Taps List 30W;15W;6W;3W
  • Max 70V Tap (W) 15W
  • 70V Taps List 15W;7.5W;3W;1.5W
  • Unit Dimensions (mm) 295H x 145W x 222D
