> >>>HH TNI-W6-BK TESSEN INSTALL 6.5" 2-WAY, BASS REFLEX PASSIVE 220W 8 OHM STEEL BRACKET WALL MOUNT INSTALLATION SPEAKER BLACK
6" WALL MOUNT SPEAKER - 40 WATT View larger
Previous Next

HH TNI-W6-BK TESSEN INSTALL 6.5" 2-WAY, BASS REFLEX PASSIVE 220W 8 OHM STEEL BRACKET WALL MOUNT INSTALLATION SPEAKER BLACK

HHATNI-W6-BK

TNi-W6-BK

New product

HH ELECTRONICS TNI-W6-BK 6.5 INCH WALL MOUNT PASSIVE SPEAKER 40W 70V/100V/8OHM BLACK

More details

Balcatta: 0
Geebung: 0

TNi-W6-BK HH 6.5 Inch Two-Way Passive Wall Speaker - Black 70 V 100 V or 8 Ohm

The HH TNi-W6-BK is a passive two-way bass-reflex wall loudspeaker combining a 6.5-inch woofer with a 1-inch dome tweeter. Its selector provides 40 W, 20 W, 10 W and 5 W taps for 100 V lines, 20 W, 10 W, 5 W and 2.5 W for 70 V systems, or direct 8-ohm operation.

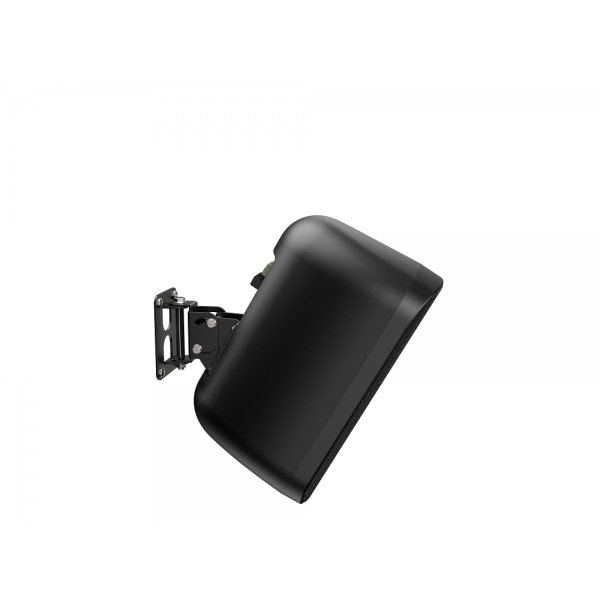

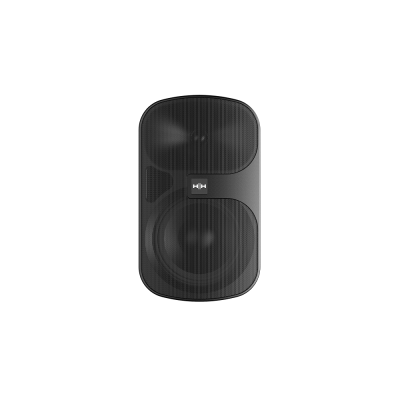

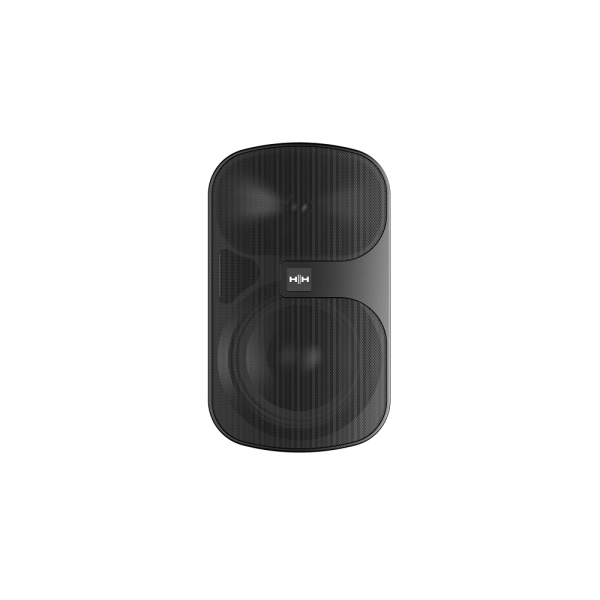

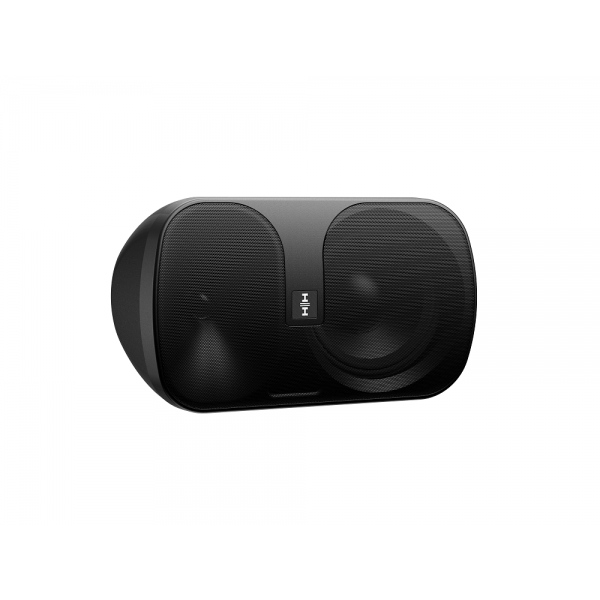

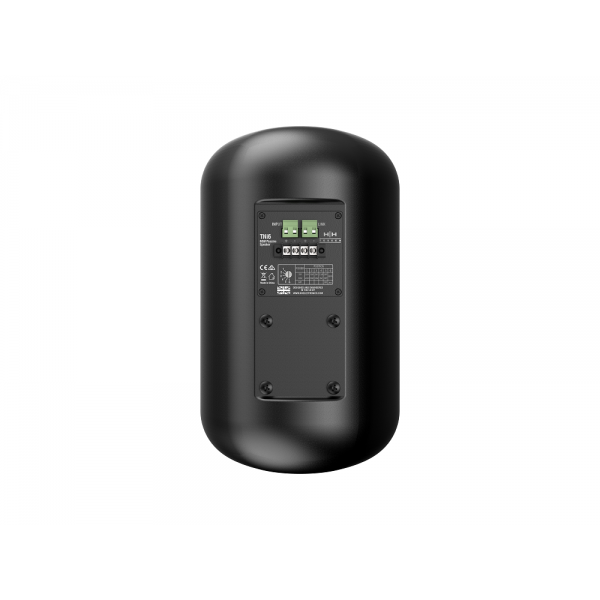

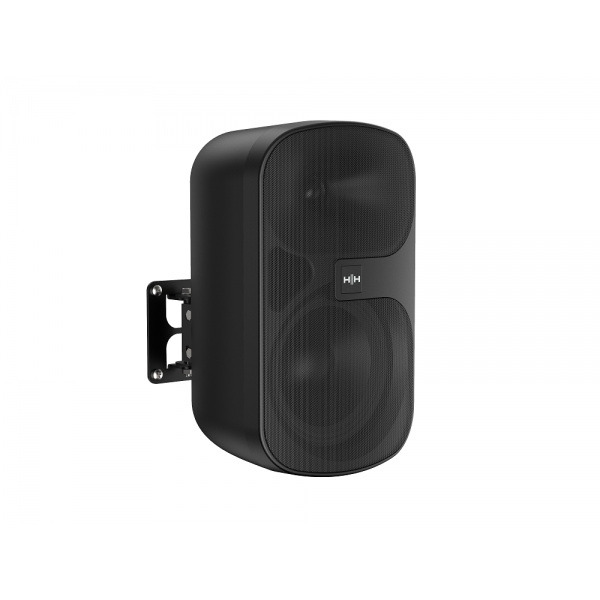

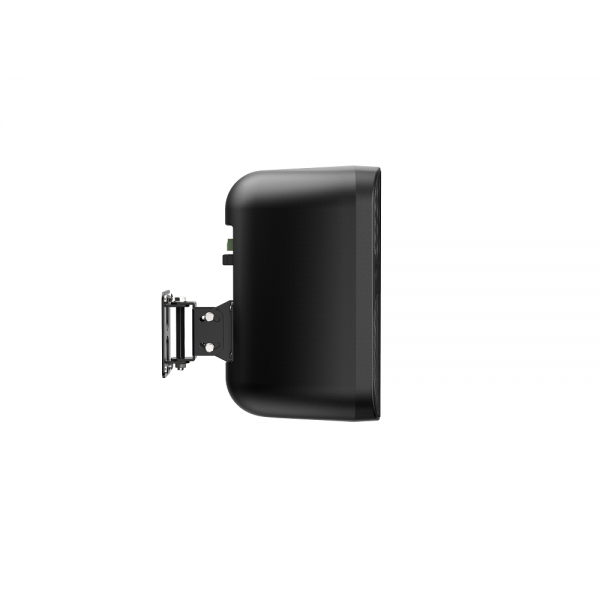

The black ABS enclosure and circular steel mesh grille provide a coordinated appearance for surface-mounted audio installations. An included adjustable steel bracket allows portrait or landscape positioning, while Euroblock and M4 input and link terminals support alternative cabling methods.

Key Features

  • 80 Hz to 18 kHz response at -3 dB supports clear music and speech reproduction
  • 90 dB sensitivity and 113 dB calculated maximum SPL provide efficient output from the wall-mounted cabinet
  • 90° horizontal by 80° vertical dispersion helps spread sound across the intended listening area
  • 55 W AES and 220 W peak handling provide additional capacity for direct 8-ohm installations
  • 330 x 196 x 281 mm cabinet dimensions give installers defined wall-space and clearance requirements
  • Colour Black
  • Impedance 8 ohm
  • Sensitivity 90 dB
  • Warranty 3 Years
  • PRODUCT TYPE PASSIVE WALL MOUNT INSTALLATION SPEAKER
  • COLOR BLACK
  • Brand HH
  • Config 2-WAY; BASS REFLEX
  • Driver Size 6.5"
  • Power Type PASSIVE
  • Mount Type STEEL BRACKET
  • Dispersion Angle 90H X 80V
  • Input Connector EUROBLOCK AND M4 TERMINALS
  • Peak Power (W) 220W
  • Weight (kg) 3.5 KG
  • HF Driver Size 1"
  • LF Driver Size 6.5"
  • Enclosure ABS PLASTIC
  • Max SPL (dB) 113 DB
  • Hertz 65-20000HZ
  • Max Wattage 220W
  • Max 100V Tap (W) 40W
  • 100V Taps List 40W; 20W; 10W; 5W
  • Max 70V Tap (W) 20W
  • 70V Taps List 20W; 10W; 5W; 2.5W
  • Unit Dimensions (mm) 330H x 196W x 281D
  • Series TESSEN INSTALL
