> >>>TOA BS1034EN 5" 2-WAY 100V LINE 10W 100V LINE WALL MOUNT SPEAKER WHITE
TOA BS-1034EN 2-WAY 10W 100V EN54 AS7240 WALL MOUNT BOX SPEAKER OFF-WHITE View larger

TOA

TOA BS1034EN 5" 2-WAY 100V LINE 10W 100V LINE WALL MOUNT SPEAKER WHITE

TOABS1034EN

BS1034EN

New product

Balcatta: 0
Geebung: 0

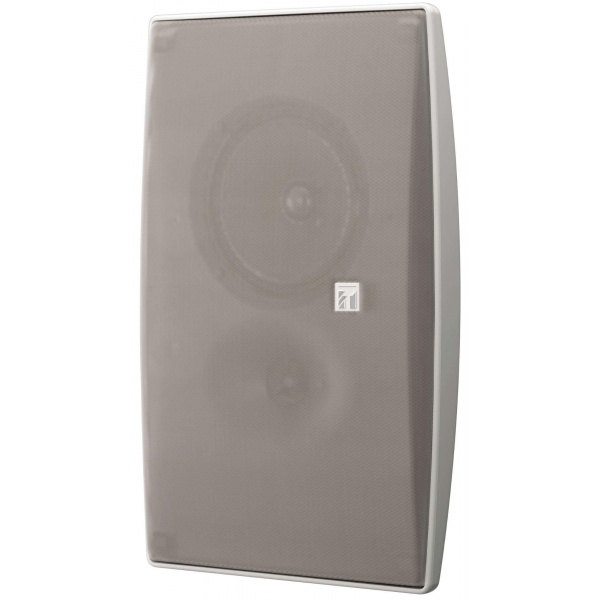

BS-1034EN TOA 10 W Wall Mount Box Speaker - Off-White 100 V/70 V

The BS-1034EN is an off-white TOA wall mount box speaker for 100 V and 70 V line systems, built as a 2-way speaker system for announcement and music use. The datasheet states that the BS-1034EN is certified according to EN 54-24:2008 and ISO 7240-24:2010, with DoP number 20-008, supporting use in voice alarm speaker applications.

Designed for wall mounting, the speaker is matched with a plug-in speaker receptacle and uses an M4 screw terminal input connector for practical installation. Its fire-resistant HIPS resin enclosure and surface-treated steel grille are finished in off-white, helping it integrate neatly with commercial interiors while supporting fixed installed audio and voice alarm systems.

Key Features

  • Supports voice alarm projects with EN 54-24 and ISO 7240-24 certification stated for this model.
  • Handles both announcements and music through a 2-way speaker system.
  • Works across 100 V and 70 V line layouts with selectable power taps.
  • Provides a wall-mounted box format for installations requiring a surface speaker.
  • Off-white enclosure and grille help the speaker sit neatly against interior finishes.
  • Colour White
  • Impedance 100V LINE
  • Sensitivity 89 dB
  • Warranty 5 Years
  • PRODUCT TYPE WALL MOUNT SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Config 2-WAY
  • Driver Size 5"
  • Power Type 70V/100V LINE
  • Mount Type WALL MOUNTED
  • Input Connector SCREW TERMINAL
  • Weight (kg) 1.4 KG
  • HF Driver Size 1"
  • LF Driver Size 5"
  • Enclosure HIPS RESIN
  • Max SPL (dB) 94 DB
  • Hertz 120-20000HZ
  • Max Wattage 10W
  • Max 100V Tap (W) 10W
  • Max 70V Tap (W) 10W
  • Unit Dimensions (mm) 327H x 208W x 79D
