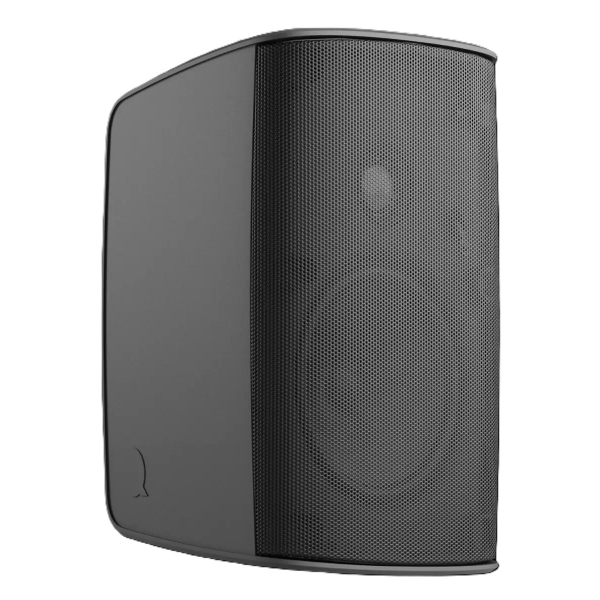

> >>>QUEST MX6B 6" 2-WAY 100V LINE 40W IP55 OUTDOOR 16 OHM WALL MOUNTED PASSIVE LOUDSPEAKER BLACK
QUEST MX6B WEATHER RESISTANT IP55/IP65 6 INCH PASSIVE SPEAKER 70V 100V 16OHM WALL MOUNT BRACKET BLACK View larger

QUEST

QUEST MX6B 6" 2-WAY 100V LINE 40W IP55 OUTDOOR 16 OHM WALL MOUNTED PASSIVE LOUDSPEAKER BLACK

QUEMX6B

MX6B

New product

Balcatta: 0
Geebung: 0

MX6B Quest 6 Inch Two-Way Weatherproof Surface-Mount Speaker - Black

The Quest MX6B is a compact two-way, full-range surface-mount loudspeaker designed for permanent indoor and outdoor installations. Its low-profile enclosure combines a 6-inch woofer with a 1-inch dome tweeter to deliver clear, detailed and balanced sound reproduction, while UV-stabilised construction and a corrosion-resistant grille support reliable operation in demanding environments.

Designed for flexible distributed audio systems, the MX6B supports 16-ohm operation as well as 70V and 100V line systems. The included UB1X wall-mount bracket enables straightforward installation and precise positioning, while an included weatherproof connector cover increases the cabinet rating from IP55 to IP65 for applications requiring additional environmental protection.

Key Features

  • Two-way design with 6-inch woofer and 1-inch dome tweeter
  • Supports 16-ohm, 70V and 100V system configurations
  • Wide 150° x 125° dispersion provides broad sound coverage
  • IP55 weather-rated cabinet, increasing to IP65 with the included weatherproof connector cover
  • UV-stabilised injection-moulded ASA enclosure with removable powder-coated aluminium grille
  • Included wall-mount bracket supports secure positioning and alignment
  • Euroblock/Phoenix in/thru connectivity simplifies integration into distributed speaker systems
  • Colour Black
  • Impedance 16 ohm
  • IP Rating IP55
  • Sensitivity 86 dB
  • Warranty 3 Years
  • PRODUCT TYPE PASSIVE LOUDSPEAKER
  • COLOR BLACK
  • Brand QUEST
  • Config 2-WAY
  • Driver Size 6"
  • Power Type 70V/100V LINE
  • Mount Type WALL MOUNTED
  • SPL (DB) 86
  • Dispersion Angle 150H X 125V
  • Input Connector EUROBLOCK/PHOENIX CONNECTOR
  • Peak Power (W) 120W
  • Weight (kg) 4.0 KG
  • HF Driver Size 1"
  • LF Driver Size 6"
  • Enclosure ACRYLONITRILE STYRENE ACRYLATE (ASA)
  • Max SPL (dB) 108 DB
  • Hertz 90-20000HZ (-6dB)
  • Max Wattage 120W
  • Max 100V Tap (W) 40W
  • 100V Taps List 10W;20W;30W;40W
  • Max 70V Tap (W) 20W
  • 70V Taps List 5W;10W;15W;20W
  • Unit Dimensions (mm) 308H x 183W x 211D
