> >>>TOA H3 487144 DUAL 4" 2-WAY PASSIVE 150W 8 OHM / 16 OHM WALL MOUNT SPEAKER WHITE
TOA H-3 EX 2-WAY 150W 70/100V 180 DEGREE WALL MOUNT SPEAKER OFF-WHITE View larger

TOA

TOA H3 487144 DUAL 4" 2-WAY PASSIVE 150W 8 OHM / 16 OHM WALL MOUNT SPEAKER WHITE

TOAH3

H3 487144

New product

Balcatta: 0
Geebung: 0

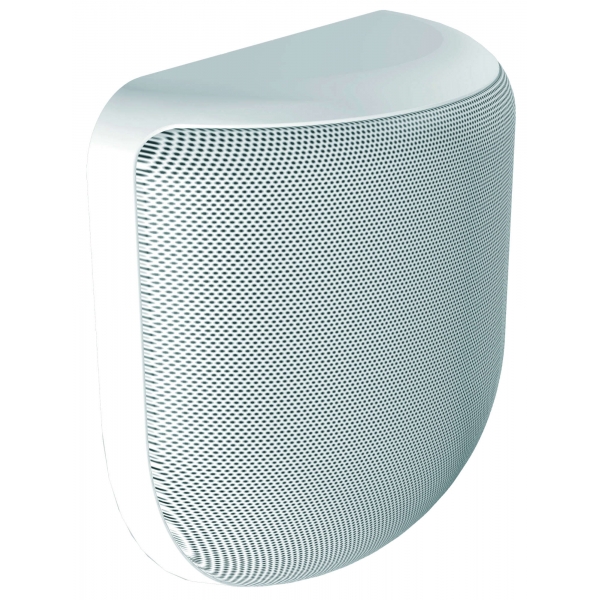

H-3 EX TOA 2-Way 150 W Wall Mount Speaker Off-White

The TOA H-3 EX is a sealed two-way wall-mount speaker combining two 10 cm cone woofers with a 2.5 cm neodymium dome tweeter. It provides 150 W continuous-program power handling at 8 Ω, a 100 Hz to 20 kHz frequency response and wide 180° horizontal coverage for consistent sound both in front of and between speaker positions.

Selectable 8 Ω and 16 Ω operation and a built-in transformer for 70 V and 100 V systems allow the H-3 EX to suit conventional and distributed-audio installations. Its off-white front frame and steel grille provide a discreet architectural appearance, while the concealed wall-mounting arrangement supports unobtrusive placement above head height.

Key Features

  • Wide horizontal dispersion helps minimise dead audio spaces across the listening area
  • Selectable impedance options provide flexibility for different installed-audio designs
  • Concealed mounting supports a clean finish without visible external brackets
  • Automatic high-frequency protection helps safeguard the tweeter during overload conditions
  • UL94 V-0-rated ABS construction provides documented fire-resistant enclosure performance
  • Colour White
  • Impedance 8 OHM / 16 OHM
  • Sensitivity 89 dB
  • PRODUCT TYPE WALL MOUNT SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Config 2-WAY
  • Driver Size Dual 4"
  • Power Type PASSIVE
  • Mount Type WALL MOUNTED
  • SPL (DB) 89
  • Dispersion Angle 180
  • Input Connector DETACHABLE SCREW TERMINAL
  • Weight (kg) 3.3 KG
  • LF Driver Size 4"
  • Enclosure SEALED TYPE
  • Hertz 100-20000HZ (-10dB)
  • Max Wattage 150W
  • Max 100V Tap (W) 30W
  • Max 70V Tap (W) 30W
  • Unit Dimensions (mm) 318H x 295W x 129D
  • Crossover Freq 4KHZ
  • Program Power (W) 150W
