> >>>TOA H1 487141 H-1 EX 3X2" 2-WAY HIGH & LOW IMPEDANCE 90W 4 OHM / 16 OHM FLUSH MOUNT 2-WAY SPEAKER WHITE

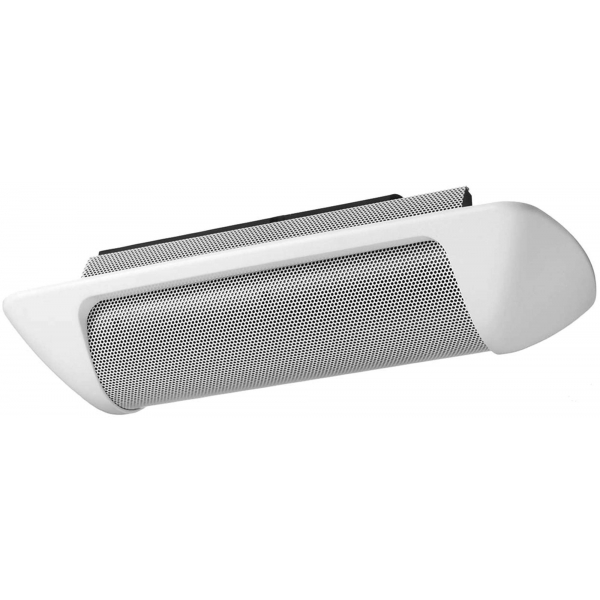

TOA H-1 EX SLIM 2-WAY 90W 70/100V FLUSH MOUNT ARCHITECTURAL SPEAKER WHITE View larger

TOA

TOA H1 487141 H-1 EX 3X2" 2-WAY HIGH & LOW IMPEDANCE 90W 4 OHM / 16 OHM FLUSH MOUNT 2-WAY SPEAKER WHITE

TOAH1

H1 487141

New product

Balcatta: 0
Geebung: 0

TOAH1 TOA H-1 2-Way Flush Mount Speaker - White

The TOA H-1 is a compact cylinder-shaped 2-way flush-mount speaker designed for wall or ceiling installation. Its sealed enclosure combines an 8 cm x 5 cm neodymium-magnet cone woofer with a ferrofluid-cooled balanced-dome tweeter, providing a 120 Hz to 20 kHz frequency response with controlled sound reproduction.

Rated for 90 W continuous programme handling at 4 Ω, the H-1 also accommodates 16 Ω operation and selectable 70 V or 100 V transformer taps for distributed audio systems. A white-painted steel grille, fire-resistant ABS cover and stainless steel adapter frame provide a clean finish for integration with surrounding interiors.

Key Features

  • Streamlines installation through compatibility with standard electrical gang boxes
  • Lets installers direct sound by adjusting the enclosure angle through up to 90°
  • Concentrates audio on the intended listening zone with controlled narrow coverage
  • Maintains a tidy installed appearance without visible external mounting hardware
  • Protects internal components by reducing input during overload conditions and resetting automatically
  • Colour White
  • Impedance 4 OHM / 16 OHM
  • Sensitivity 85 DB
  • PRODUCT TYPE 2-WAY SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Config 2-WAY
  • Driver Size 3x2"
  • Power Type HIGH & LOW IMPEDANCE
  • Mount Type FLUSH MOUNT
  • SPL (DB) 85
  • Dispersion Angle 90
  • Input Connector DETACHABLE SCREW TERMINAL
  • Weight (kg) 1.5 KG
  • HF Driver Size 1"
  • LF Driver Size 3x2"
  • Enclosure SEALED TYPE
  • Hertz 120-20000HZ
  • Max Wattage 90W
  • Max 100V Tap (W) 12W
  • 100V Taps List 12W; 6W; 3W
  • Max 70V Tap (W) 12W
  • 70V Taps List 12W; 6W; 3W; 1.5W
  • Unit Dimensions (mm) 126H x 312W x 90D
  • Crossover Freq 5KHZ
  • Program Power (W) 90W
  • Series H-1 EX
