> >>>HH TNI-W12PRO-BK TNI 12" 2-WAY FULL RANGE, BASS REFLEX PASSIVE 1200W 8 OHM WALL MOUNTED PASSIVE LOUDSPEAKER BLACK

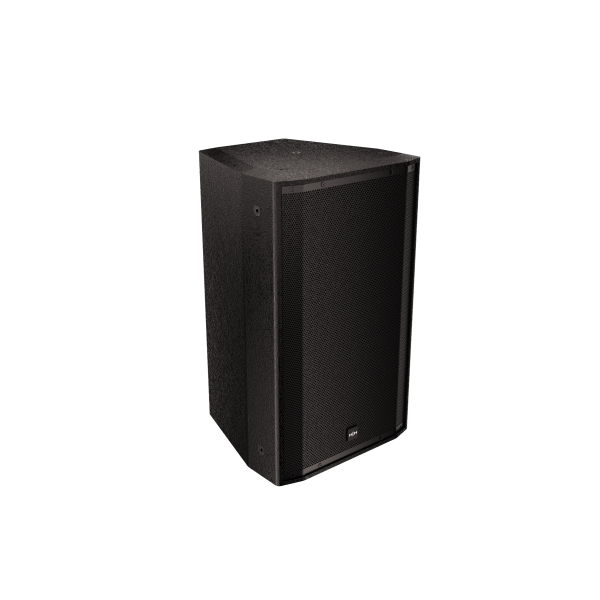

12" WALL MOUNT SPEAKER - 300 WATT View larger
Previous Next

HH TNI-W12PRO-BK TNI 12" 2-WAY FULL RANGE, BASS REFLEX PASSIVE 1200W 8 OHM WALL MOUNTED PASSIVE LOUDSPEAKER BLACK

HHATNI-W12PRO-BK

TNi-W12PRO-BK

New product

HH ELECTRONICS TNI-W12PRO-BK 12 INCH PASSIVE SPEAKER 2-WAY 300W BLACK

More details

Balcatta: 0
Geebung: 0

TNi-W12PRO-BK HH 12 Inch Two-Way Full Range Passive Installation Loudspeaker - Black 8 Ohm

The HH TNi-W12PRO-BK is a two-way full-range passive installation loudspeaker featuring a rear-ported bass-reflex enclosure. Its 12-inch HH-designed low-frequency driver with a 2.5-inch voice coil works alongside a 1.4-inch Celestion CDX1-1445 compression driver, with power handling rated at 300 W AES, 600 W continuous and 1200 W peak.

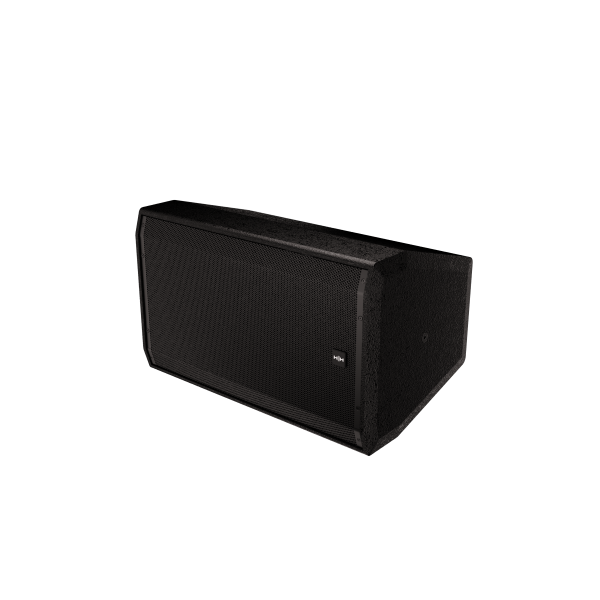

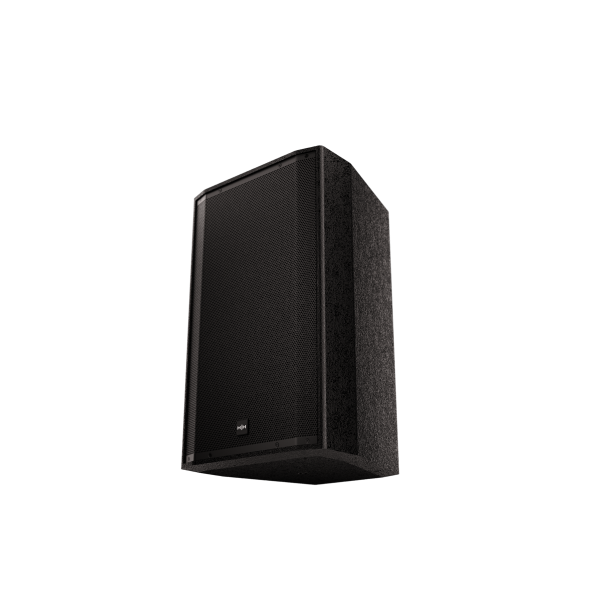

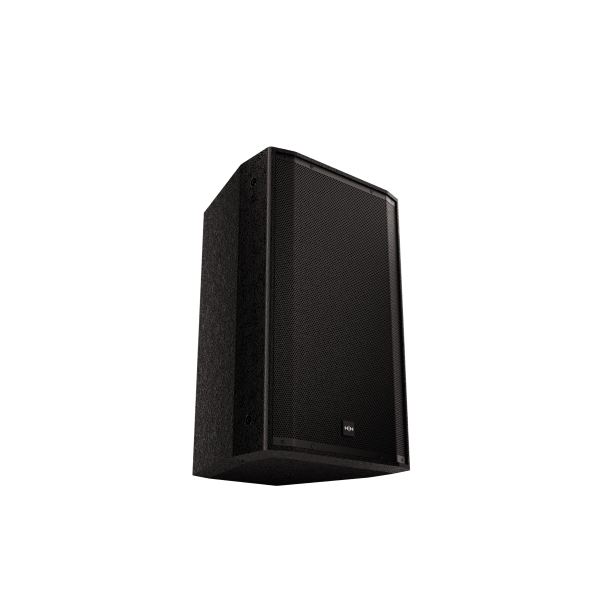

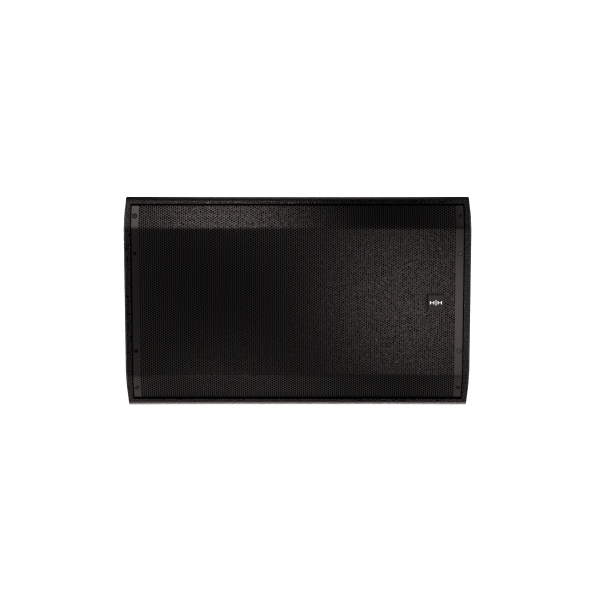

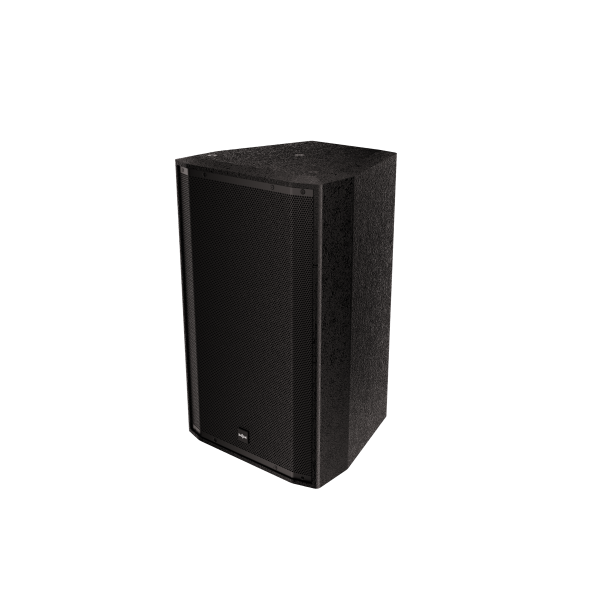

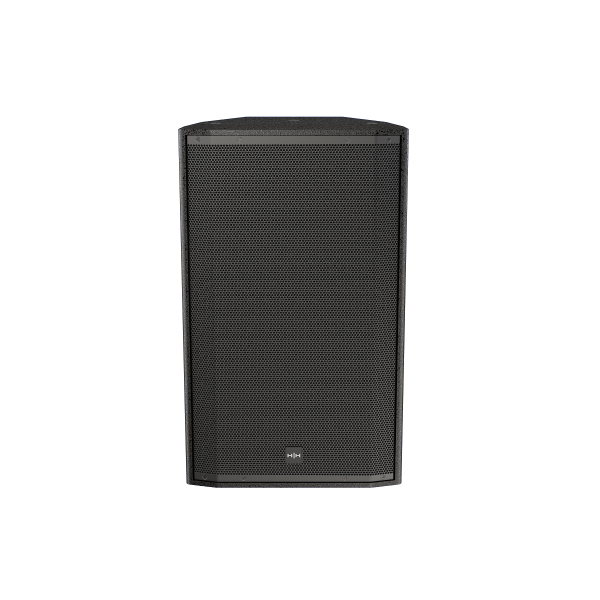

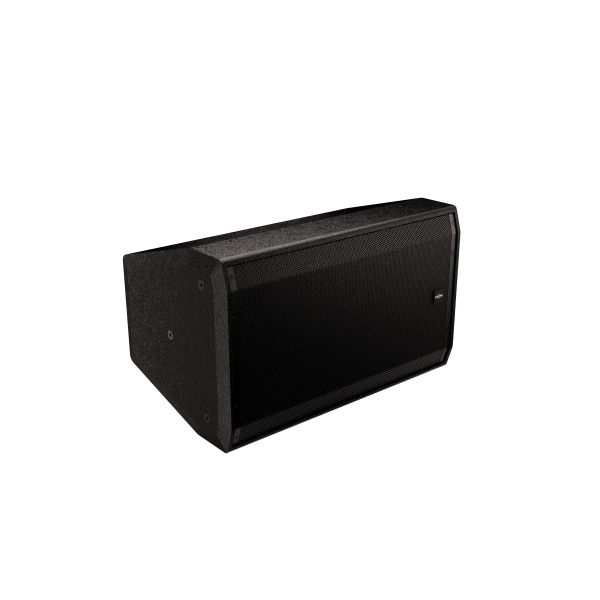

Built for fixed venue and commercial AV systems, its rotatable waveguide supports vertical or horizontal placement while retaining 90° horizontal by 60° vertical dispersion. The black 15 mm plywood cabinet has a hard-wearing spatter finish and a foam-backed powder-coated steel grille for professional installation environments.

Key Features

  • 97 dB sensitivity and 122 dB continuous maximum SPL support sustained professional sound levels
  • 60 Hz to 18 kHz response at -3 dB delivers broad-band reproduction for music and speech
  • Recommended 600-1200 W amplification at 8 ohms provides clear guidance for system matching
  • 2.2 kHz crossover manages the transition between the low- and high-frequency driver sections
  • 575 x 345 x 337 mm cabinet dimensions help specifiers plan placement and installation clearances
  • Colour Black
  • Impedance 8 ohm
  • Sensitivity 97 dB
  • Warranty 2 Years
  • PRODUCT TYPE PASSIVE LOUDSPEAKER
  • COLOR BLACK
  • Brand HH
  • Config 2-WAY FULL RANGE; BASS REFLEX
  • Driver Size 12"
  • Power Type PASSIVE
  • Mount Type WALL MOUNTED
  • SPL (DB) 122
  • Dispersion Angle 90H X 60V

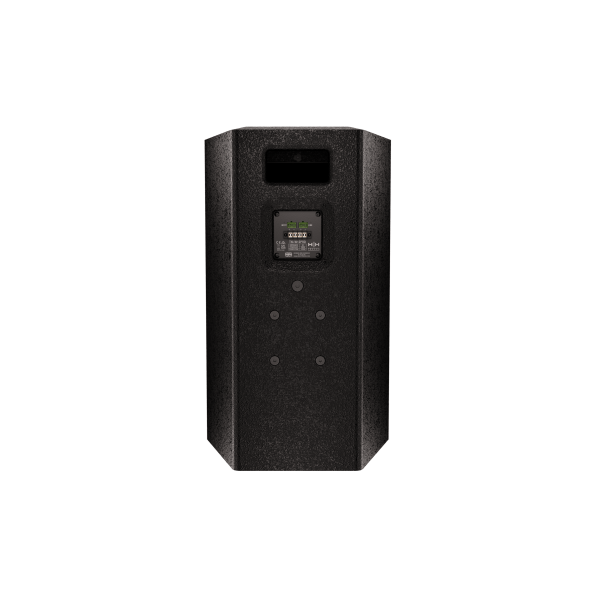

  • Input Connector EUROBLOCK CONNECTOR; M4 BARRIER STRIP TERMINAL
  • Peak Power (W) 1200W
  • Weight (kg) 16.2 KG
  • Enclosure ROBUST ALL-WOOD CONSTRUCTION
  • Max SPL (dB) 128 DB
  • Hertz 50-20000HZ
  • Max Wattage 1200W
  • Unit Dimensions (mm) 575H x 345W x 337D
  • Crossover Freq 2.2KHZ
  • Program Power (W) 600W
  • Series TNi
