> >>>EV EVL-EVID-S8.2TB EVID-S 8" 2-WAY FULL RANGE 100V LINE 60W IP54 8 OHM WALL/CEILING MOUNT SURFACE MOUNT SPEAKER PAIR BLACK
8” Wall Mount Speaker (Pair) - 90 Watt View larger

ELECTROVOICE

EV EVL-EVID-S8.2TB EVID-S 8" 2-WAY FULL RANGE 100V LINE 60W IP54 8 OHM WALL/CEILING MOUNT SURFACE MOUNT SPEAKER PAIR BLACK

ELEEVID-S-8.2TB

EVL-EVID-S8.2TB

New product

EV 8 WALL MOUNT SPEAKER (PAIR) - 90 WATT

More details

Balcatta: 0
Geebung: 0

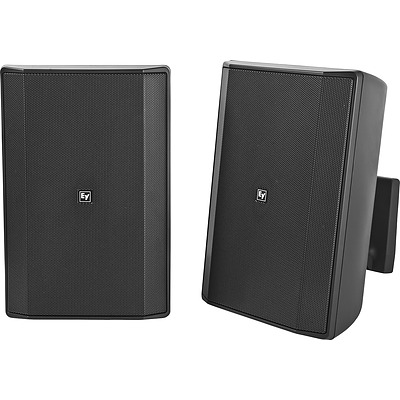

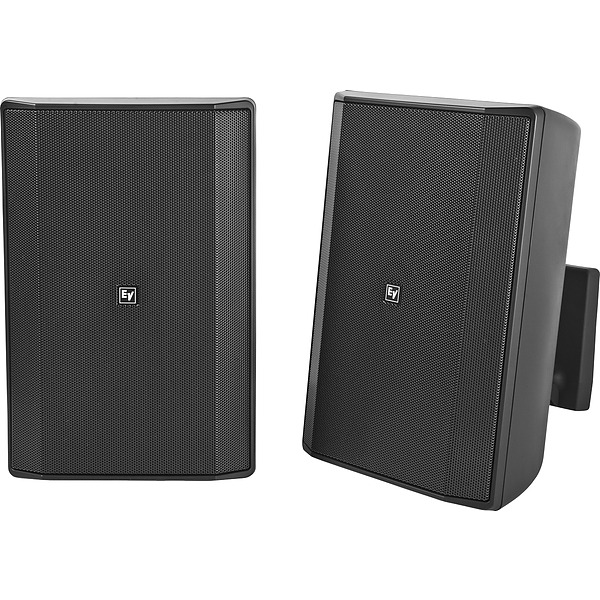

ELEEVID-S-8.2TB Electro-Voice EVID-S8.2TB 8-Inch Two-Way Surface Mount Loudspeaker - Black Pair

The Electro-Voice EVID-S8.2TB is a two-way full-range surface mount loudspeaker built around an 8-inch woofer, a 1-inch high-frequency driver and an internal passive crossover. It handles 90 W continuously and has a published frequency response of 50 Hz to 20 kHz at -10 dB.

Designed for background and foreground music, paging and sound reinforcement, this black loudspeaker pair suits restaurants, bars, patios, retail spaces, fitness clubs, hospitality sites, theme parks and leisure venues. Its IP54-rated enclosure is engineered to resist sun, salt and moisture, supporting indoor and outdoor surface-mount applications.

Key Features

  • Selectable 70 V and 100 V transformer settings plus 8 ohm bypass support both distributed and low-impedance system designs.
  • Wide 90 degree horizontal and 90 degree vertical coverage helps distribute sound uniformly across listening areas.
  • Paintable RAL 9004 black finish supports visual coordination with the surrounding decor.
  • Concealed wiring through the wall portion of the mounting system supports a neat installed finish.
  • Designed to work with the wider EVID surface mount range and with EVID ceiling and in-wall speakers for coordinated system planning.
  • Colour Black
  • Dimensions (H x W x D) 390 x 250 x 224 mm
  • Frequency Response 50 Hz – 20 kHz1 (-10 dB)
  • Impedance 8 ohm
  • IP Rating IP54
  • Maximum SPL 110 dB
  • Power Rating 90 watt (RMS) 360 watt (Peak)
  • Sensitivity 90 dB
  • Transformer Taps 15 , 30 , 60 Watt & 8 Ohm
  • Warranty 3 Years
  • Weight 5.1 Kg
  • PRODUCT TYPE SURFACE MOUNT SPEAKER
  • Brand EV
  • Config 2-WAY FULL RANGE
  • Driver Size 8"
  • Power Type 70V/100V LINE
  • Mount Type WALL/CEILING MOUNT
  • SPL (DB) 110
  • Dispersion Angle 90H X 90V
  • Voice Coil Size 1"
  • Input Connector CAPTIVE SCREWS ON WALL BRACKET
  • Peak Power (W) 360W
  • Weight (kg) 5.8 KG
  • HF Driver Size 1"
  • LF Driver Size 8"
  • Enclosure FIRE RATED ABS PLASTIC
  • Max SPL (dB) 116 DB
  • Hertz 70-20000HZ (-10dB)
  • Max Wattage 90W
  • Max 100V Tap (W) 60W
  • 100V Taps List 15W; 30W; 60W; 8 OHM
  • Max 70V Tap (W) 60W
  • 70V Taps List 7.5W; 15W; 30W; 60W; 8 OHM
  • Unit Dimensions (mm) 390H x 250W x 223D
  • Pair PAIR
  • Program Power (W) 90W
  • Series EVID-S
