> >>>TOA 487039 BS 12CM 2-WAY, BASS REFLEX 100V/70V LINE 30W IPX4 8 OHM WALL MOUNTED COMPACT SPEAKER WHITE
New TOA 487039 BS 12CM 2-WAY, BASS REFLEX 100V/70V LINE 30W IPX4 8 OHM WALL MOUNTED COMPACT SPEAKER WHITE View larger

TOA

TOA 487039 BS 12CM 2-WAY, BASS REFLEX 100V/70V LINE 30W IPX4 8 OHM WALL MOUNTED COMPACT SPEAKER WHITE

TOABS1030W

487039

New product

Balcatta: 0
Geebung: 0

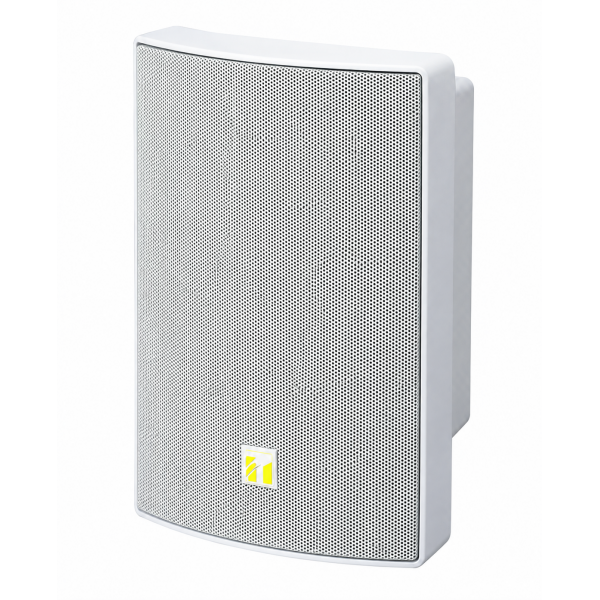

TOA BS-1030W 30W 2-Way Wall-Mount Compact Speaker - White

The TOA BS-1030W is a compact 30 W, 2-way bass-reflex speaker designed for announcements and music playback. Its 12 cm cone woofer and dome-type tweeter provide a wide 80 Hz to 20 kHz frequency response, supporting both music reproduction and high speech intelligibility.

Designed for flexible installed sound applications, the BS-1030W supports both low-impedance 8 Ohm operation and 70 V/100 V high-impedance systems, with multiple transformer power settings available. A rear rotary switch provides convenient power adjustment and low-impedance selection.

The white ABS enclosure and matching metal grille provide a clean appearance suited to modern interiors. Its IPX4 water protection allows vertical or horizontal installation, while the supplied mounting bracket provides a practical solution for wall-mounted applications.

Key Features

  • 30 W 2-way bass-reflex compact speaker
  • Suitable for announcements and music playback
  • 12 cm cone woofer with dome-type tweeter
  • Supports 8 Ohm, 70 V and 100 V audio systems
  • Rear rotary switch for power adjustment and impedance selection
  • IPX4 water protection for vertical or horizontal installation
  • 90 dB sound pressure level at 1 W/1 m
  • Wide 80 Hz to 20 kHz frequency response
  • White ABS enclosure with matching surface-treated steel grille
  • Mounting bracket and associated mounting hardware included
  • Colour White
  • Impedance 8 ohm
  • IP Rating IPX4
  • Sensitivity 90 dB
  • Warranty 5 Years
  • PRODUCT TYPE COMPACT SPEAKER
  • Brand TOA
  • Config 2-WAY; BASS REFLEX
  • Driver Size 12CM
  • Power Type 100V/70V LINE
  • Mount Type WALL MOUNTED
  • SPL (DB) 90
  • Input Connector 2-CORE CABTYRE SPEAKER CABLE
  • Weight (kg) 2.5 KG
  • HF Driver Size 2.5"
  • LF Driver Size 12"
  • Enclosure ABS RESIN
  • Hertz 80-20000HZ
  • Max Wattage 30W
  • Max 100V Tap (W) 30W
  • 100V Taps List 30W; 20W; 15W; 10W; 5W
  • Max 70V Tap (W) 30W
  • 70V Taps List 30W; 20W; 15W; 10W; 5W
  • Unit Dimensions (mm) 290H x 196W x 150D
  • Pair SINGLE
  • Series BS
