> >>>EV EVL-EVID-S8.2TW EVID-S 8" 2-WAY FULL RANGE 100V LINE 60W IP54 8 OHM SURFACE MOUNT SPEAKER PAIR WHITE
8” Wall Mount Speaker (Pair) - 90 Watt View larger

ELECTROVOICE

EV EVL-EVID-S8.2TW EVID-S 8" 2-WAY FULL RANGE 100V LINE 60W IP54 8 OHM SURFACE MOUNT SPEAKER PAIR WHITE

ELEEVID-S-8.2TW

EVL-EVID-S8.2TW

New product

EV 8 WALL MOUNT SPEAKER (PAIR) - 90 WATT

More details

Balcatta: 0
Geebung: 0

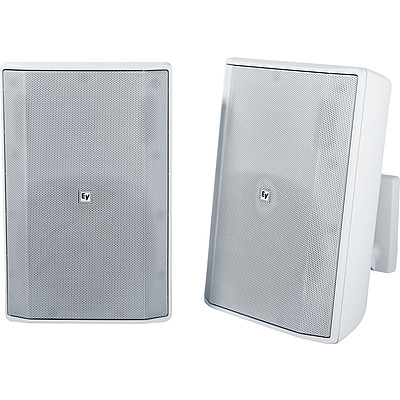

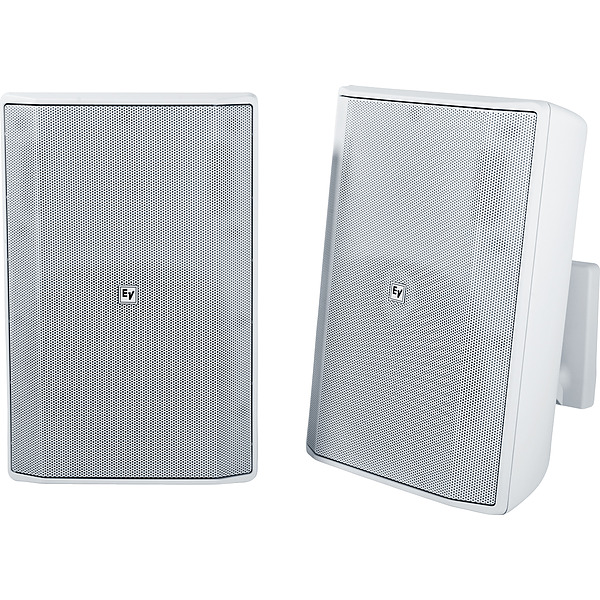

EVID-S8.2TW Electro-Voice Two-Way Surface Mount Loudspeaker - 8 Inch 70 V/100 V White Pair

The EVID-S8.2TW from Electro-Voice is a white, two-way, full-range 8-inch surface mount loudspeaker supplied as a pair. It combines a long-throw woofer with a 1-inch high-frequency driver and integrated waveguide, while its internal 60 W transformer provides selectable 70 V or 100 V operation plus an 8 ohm bypass for low-impedance lines.

Designed for background and foreground music, paging and sound reinforcement, this commercial loudspeaker suits restaurants, bars, patios, retail spaces, fitness clubs, hospitality venues and other indoor or outdoor applications. Its IP54-rated construction offers resistance to sun, salt and moisture, supporting reliable installation across a wide range of demanding environments.

Key Features

  • Wide uniform dispersion helps provide consistent sound coverage throughout the listening area
  • Flexible operating options simplify integration into distributed or low-impedance audio systems
  • Adjustable wall or ceiling placement accommodates varied room layouts and coverage requirements
  • Paintable white finish supports a coordinated appearance within the surrounding decor
  • Designed for cohesive use within broader Electro-Voice EVID speaker installations
  • Colour White
  • Dimensions (H x W x D) 390 x 250 x 224 mm
  • Frequency Response 50 Hz – 20 kHz1 (-10 dB)
  • Impedance 8 ohm
  • IP Rating IP54
  • Maximum SPL 110 dB
  • Power Rating 90 watt (RMS) 360 watt (Peak)
  • Sensitivity 90 dB
  • Transformer Taps 15 , 30 , 60 Watt & 8 Ohm
  • Warranty 3 Years
  • Weight 5.1 Kg
  • PRODUCT TYPE SURFACE MOUNT SPEAKER
  • Brand EV
  • Config 2-WAY FULL RANGE
  • Driver Size 8"
  • Power Type 70V/100V LINE
  • Mount Type SURFACE MOUNTED
  • SPL (DB) 90
  • Dispersion Angle 90H X 90V
  • Voice Coil Size 1"
  • Input Connector CAPTIVE SCREWS ON WALL BRACKET
  • Peak Power (W) 360W
  • Weight (kg) 5.8 KG
  • HF Driver Size 1"
  • LF Driver Size 8"
  • Enclosure FIRE RATED ABS PLASTIC
  • Max SPL (dB) 110 DB
  • Hertz 70-20000HZ (-10dB)
  • Max Wattage 90W
  • Max 100V Tap (W) 60W
  • 100V Taps List 15W; 30W; 60W; 8 OHM
  • Max 70V Tap (W) 60W
  • 70V Taps List 7.5W; 15W; 30W; 60W; 8 OHM
  • Unit Dimensions (mm) 390H x 250W x 223D
  • Pair PAIR
  • Series EVID-S
