> >>>EV EVL-ZX1I-100W ZX1I 8" 2-WAY FULL RANGE PASSIVE 800W IP55 OUTDOOR 8 OHM 2-WAY SURFACE MOUNT LOUDSPEAKER WHITE
8" 2 Way Surface Mount Speaker - 200 Watt View larger

ELECTROVOICE

EV EVL-ZX1I-100W ZX1I 8" 2-WAY FULL RANGE PASSIVE 800W IP55 OUTDOOR 8 OHM 2-WAY SURFACE MOUNT LOUDSPEAKER WHITE

ELEZX1I-100W

EVL-ZX1I-100W

New product

EV 8" 2 WAY SURFACE MOUNT SPEAKER - 200 WATT

More details

Balcatta: 0
Geebung: 0

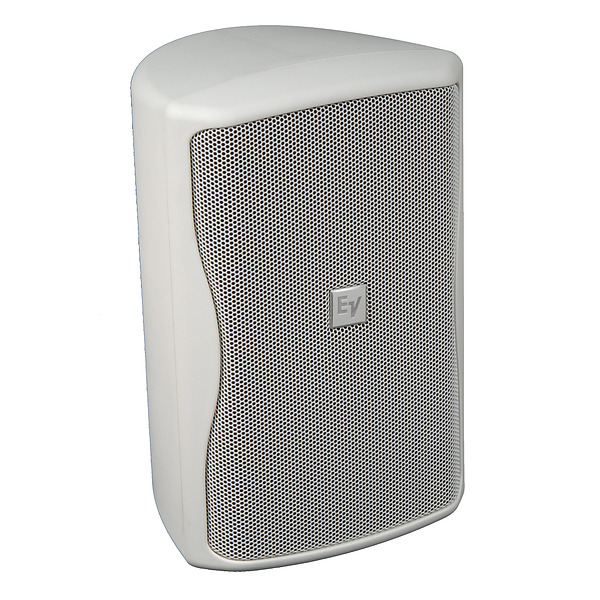

ZX1I-100W Electro-Voice White 8 Inch Two-Way Passive Installation Speaker - 200 W 8 Ohm

The Electro-Voice ZX1I-100W is a white 8-inch two-way passive installation speaker for 8 ohm sound systems. It features an EV8L low-frequency driver and a DH2005 1-inch-exit true compression driver with an integrated crossover network, delivering extended frequency response and 200 W continuous power handling.

Designed for fixed installation applications, the speaker features a compact, paintable high-impact injection-moulded ABS enclosure and includes a low-profile QuickSAM heavy-duty mounting bracket for simplified surface mounting and adjustable positioning.

Key Features

  • 100 Deg x 100 Deg coverage pattern for even sound distribution across wide listening areas
  • Velocity-compensated port design for extended low-frequency response from the compact enclosure
  • Full-bandwidth overload protection for reliable long-term operation without audible effect
  • Rotatable horn for horizontal or vertical installation
  • IP55-rated enclosure and weatherised components for indoor and outdoor installation
  • Colour White
  • Coverage (H x V) 100 ° x 100 °
  • Dimensions (H x W x D) 457 x 282 x 264 mm
  • Frequency Response 48 - 20000 Hz (-10 dB)
  • Impedance 8 ohm
  • IP Rating IP55
  • Material High-Impact ABS Plastic
  • Maximum SPL 121 dB
  • Power Rating 200 watt (RMS) 800 watt (Peak)
  • Sensitivity 92 dB
  • Warranty 3 Years
  • Weight 8.4 Kg
  • PRODUCT TYPE 2-WAY SURFACE MOUNT LOUDSPEAKER
  • Brand EV
  • Config 2-WAY FULL RANGE
  • Driver Size 8"
  • Power Type PASSIVE
  • Mount Type SURFACE MOUNTED
  • Peak Power (W) 800W
  • Weight (kg) 8.4 KG
  • HF Driver Size 1"
  • LF Driver Size 8"
  • Enclosure ABS RESIN
  • Max SPL (dB) 121 DB
  • Hertz 60-20000HZ
  • Max Wattage 200W
  • Unit Dimensions (mm) 451H x 282W x 263D
  • Pair SINGLE
  • Crossover Freq 1.7KHZ
  • Program Power (W) 400W
  • Series ZX1i
