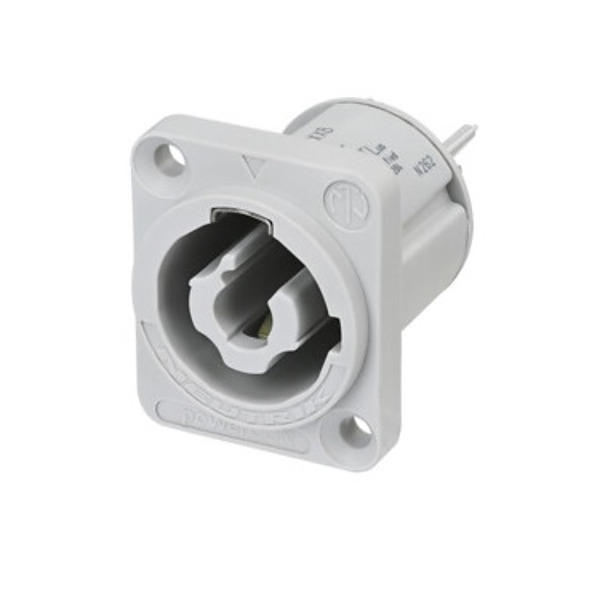

Powercon Panel Connector - Mains Out View larger

Powercon Panel Connector - Mains Out

NEUTRIK NAC3MPXXB

New product

Powercon Panel Connector - Mains Out

More details

Advanced Production Engineering Claremont 0487 465 597 www.apengineering.com.au
Omega Technical Services Rivervale 0439 889 177 www.omegatech.com.au
Adasound Public Address Morley 9275 1266 www.adasound.com.au
Mega Music Wangara Wangara 9408 1236 www.megamusiconline.com.au
Mega Music Myaree Myaree 9330 2777 www.megamusiconline.com.au
Megavision Sound & Lighting Osborne Park 9444 6556 www.megavision.com.au

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1.

Appliance outlet connector, 3/16" flat tab terminals, grey

The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features

  • Lockable single phase connector
  • Certified according to IEC 60320-1 & UL 60320-1
  • 3 contacts for line, neutral and premating safety ground
  • Certified according to UL-1977 & CAN/CSA-C22.2 No. 182.3
  • Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Extremely robust and reliable
  • Colour Grey
  • IP Rating IP20
  • Operating Temperature -30 °C to +80 °C
  • Warranty 2 Years
