> >>Powercon Line Connector - Mains Out

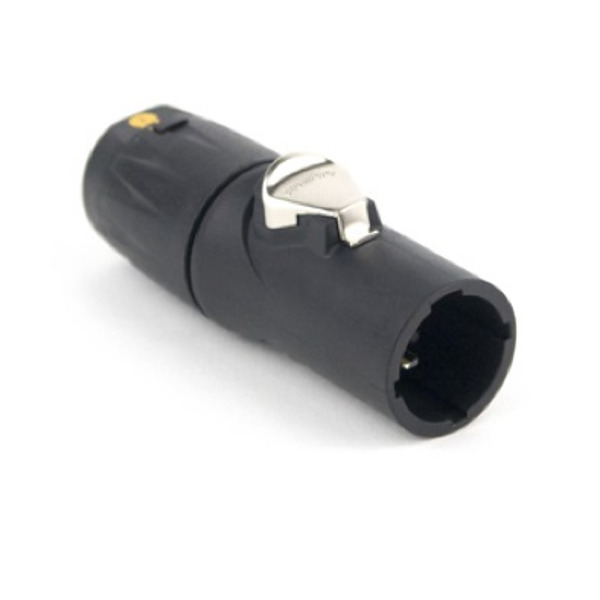

Powercon Line Connector - Mains Out View larger

Powercon Line Connector - Mains Out

AMPHENOL HPT-3-M

New product

Powercon Line Connector - Mains Out

More details

Adasound Public Address Morley 9275 1266 www.adasound.com.au
Totally Sound Bunbury 9725 4599 www.totallysound.com.au
Omega Technical Services Rivervale 0439 889 177 www.omegatech.com.au
C.C.A. Productions Osborne Park 9242 8511 www.ccaproductions.com.au

HPT Series connectors are suitable for AC power supply where a durable latch locking connector is required.

They are rated at 16A, 250 Vac. HPT Series connectors can be connected or disconnected under load and are IP65 rated.

Features

  • 2+PE contact layout
  • Quick-release, vibration resistant latch lockable
  • High impact UV resistant material
  • True Mains Connector with Current Breaking Capacity (CBC)
  • 16A current rating (20A USA)
  • Industry-standard mating interface
  • IP65 rated
  • UL498 certified
  • UL50E enclosure type 4 (when mated or in combination with protective caps)
  • Patent Protected
  • Colour Black
  • Operating Temperature -25°C to +75°C
  • Warranty 1 Year
  • Weight 32g
