NEUTRIK NAC3PX-TOP POWERCON TRUE1 TOP APPLIANCE IN/OUT CONNECTOR, IP65/UV RESISTANT WITH NU-SCNAC-PX
NEUNAC3PX-TOP
NU-NAC3PX-TOP
New product

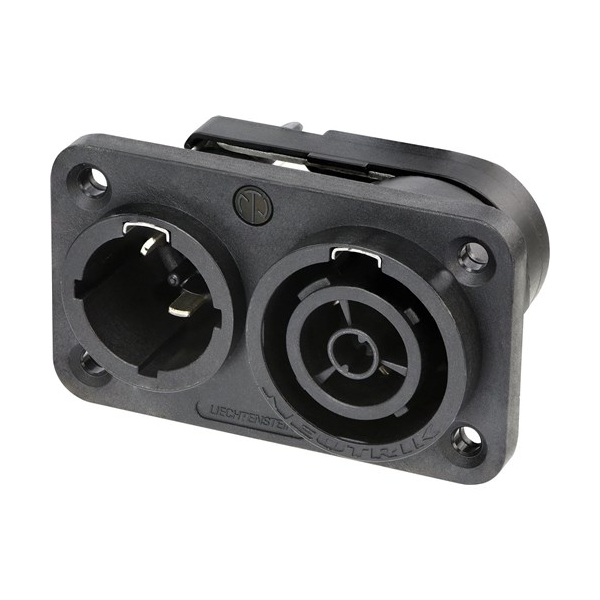

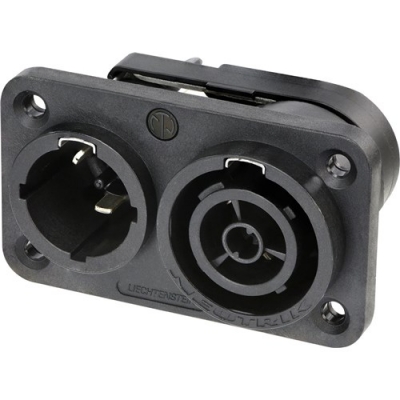

NEUTRIK NAC3PX-TOP powerCON TRUE1 TOP Mains Chassis Duplex Connector - 16A-250VAC-IP65
The NEUTRIK NAC3PX-TOP is a high-quality powerCON TRUE1 TOP appliance inlet outlet combination designed for rugged mains power distribution on professional outdoor and harsh-environment equipment. Rated 16 A 250 V AC in Europe and 20 A 250 V AC in the USA it uses a secure twist lock system with breaking capacity to allow safe connect and disconnect under load while maintaining a dependable power connection.
Ideal for touring AV lighting rigs stage power panels and weather-exposed installations it features a heavy duty sealed design with high impact UV resistant materials and achieves IP65 and UL50E Type 4 protection when mated or used with the NU-SCNAC-PX sealing cap. With UL 94 V-0 flammability performance stainless steel locking hardware 2 µm silver plated contacts and a service life over 5000 mating cycles it delivers long-term reliability and safer power handling in demanding environments.
Key Features
- Appliance inlet outlet chassis duplex connector with 1-4 inch flat tab terminals for fast panel wiring
- Electrical rating 2 plus PE contacts 16 A 250 V AC EN 60320-1 and 20 A 250 V AC UL 498
- Breaking capacity connector supports connect and disconnect under load for real-world stage and rack power
- IP65 and UL50E Type 4 protection with NU-SCNAC-PX sealing cap plus UL 94 V-0 and ENEC certified
- Polyamide PA 6.6 shell stainless steel locking element and silver plated CuSn contacts rated over 5000 cycles
- PRODUCT TYPE CONNECTORS
- COLOR BLACK
NEUNAC3PX-TOP_ds_1
