POWERCON TRUE1 CABLE CONNECTOR INLET FOR 10-16MM OD CABLE

NEUNAC3M-TRUE1-L

NAC3M-TRUE1-L

New product

Balcatta: 0
Geebung: 0

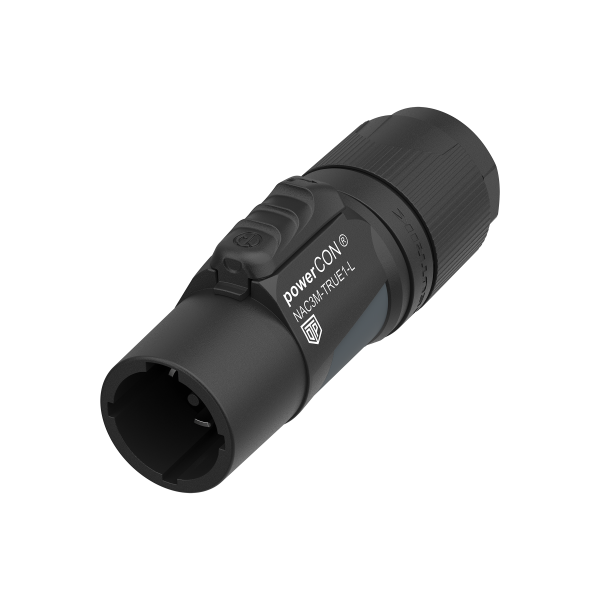

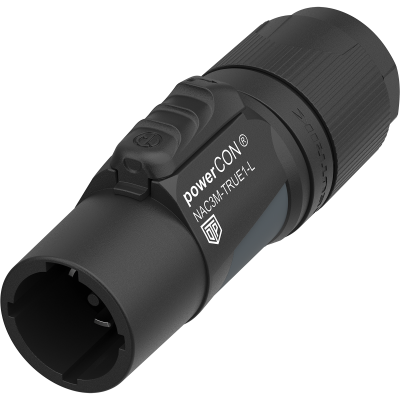

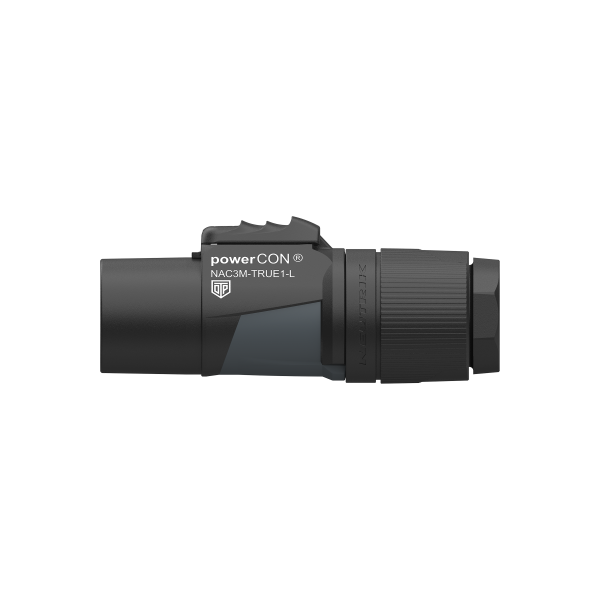

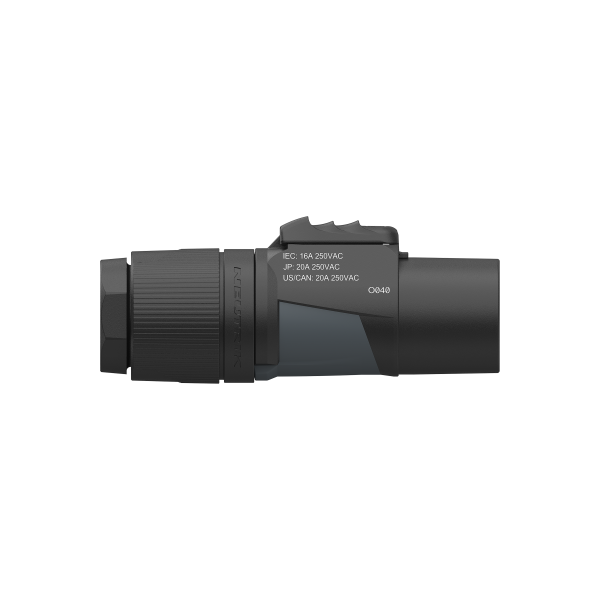

NAC3M-TRUE1-L Lockable PowerCON TRUE1 Mains Cable Connector (IP65/IP67)

The NAC3M-TRUE1-L is a heavy-duty locking male cable connector from Neutrik’s powerCON TRUE1 series, designed for secure and reliable AC power connections in harsh and demanding environments. This true mains connector features breaking capacity (CBC), meaning it can be safely connected or disconnected under load. It is certified according to EN IEC 60320-1, UL 60320-1, and CSA C22.2, supporting 16 A at 250 V AC (Europe) and 20 A at 250 V AC (US/Canada), making it ideal for global power applications in professional AV and industrial systems.

Constructed with high-impact, UV-resistant polyamide and fitted with Neutrik’s unique twist-lock bushing and strain relief, the NAC3M-TRUE1-L accommodates cable outer diameters from 10 to 16 mm and wire sizes from 1.0 to 2.5 mm². The connector offers IP65/IP67 ingress protection when mated or capped, supports over 5000 mating cycles, and operates in temperatures from -30°C to +80°C, ensuring long-term durability and safety in outdoor and rugged deployments:contentReference[oaicite:0]{index=0}.

Key Features

  • Lockable mains connector with breaking capacity for live connections
  • Rated 16 A (EU) and 20 A (US/Canada) at 250 V AC
  • Environmental protection rated IP65/IP67 when mated or capped
  • Accommodates 10–16 mm cable O.D. and 1.0–2.5 mm² wires
  • Durable UV-resistant polyamide housing with >5000 mating cycles
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
