Powercon Line Connector - Mains In

NEUTRIK NAC3FXXA-W-S

New product

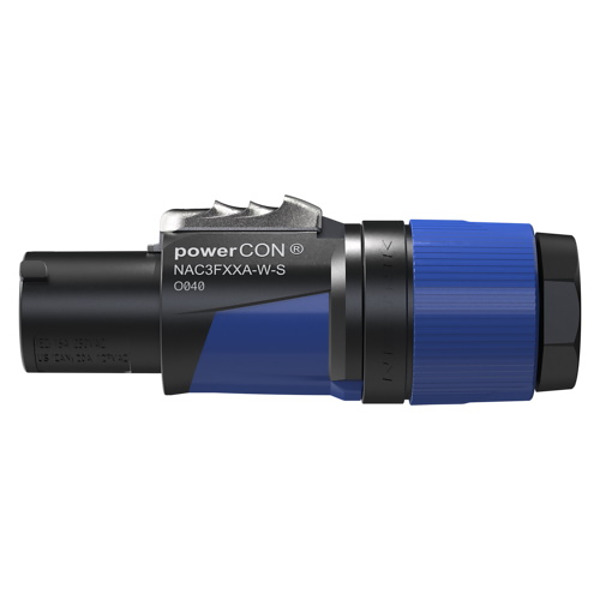

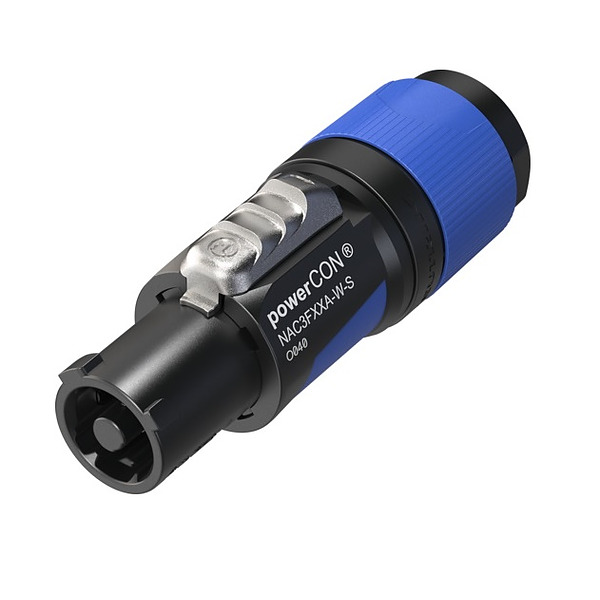

Powercon Line Connector - Mains In

More details

AV Media Systems (W.A.) Osborne Park 1300 302 884 www.avsystems.com.au
Redfish Technologies Perth 6396 0660 www.redfishtechnologies.com.au
Totally Sound Bunbury 9725 4599 www.totallysound.com.au
PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop
Mega Music Myaree Myaree 9330 2777 www.megamusiconline.com.au
Advanced Production Engineering Claremont 0487 465 597 www.apengineering.com.au

Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 12 mm.

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Features

  • IEC EN 60320-1 / UL 60320-1 / CSA  C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • Ergonomic design with slip-proof two-component molded housing
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing



  • Colour Black & Blue
  • IP Rating IP20
  • Operating Temperature -33 °C to +80 °C
  • Outside Diameter 6 - 12 mm
  • Warranty 2 Years
