> >>NEUTRIK NAC3MP-HC 32 AMPS POWERCON PANEL CONNECTOR LOCKING BLACK
New NEUTRIK NAC3MP-HC 32 AMPS POWERCON PANEL CONNECTOR LOCKING BLACK View larger

NEUTRIK

NEUTRIK NAC3MP-HC 32 AMPS POWERCON PANEL CONNECTOR LOCKING BLACK

NEUNAC3MP-HC

NU-NAC3MP-HC

New product

Balcatta: 0
Geebung: 0

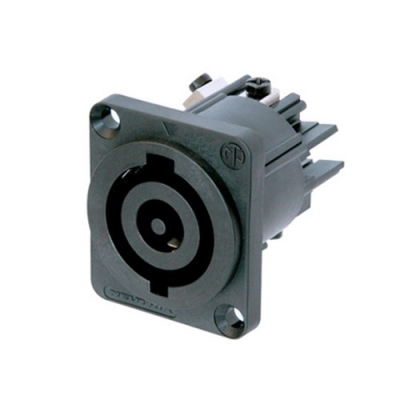

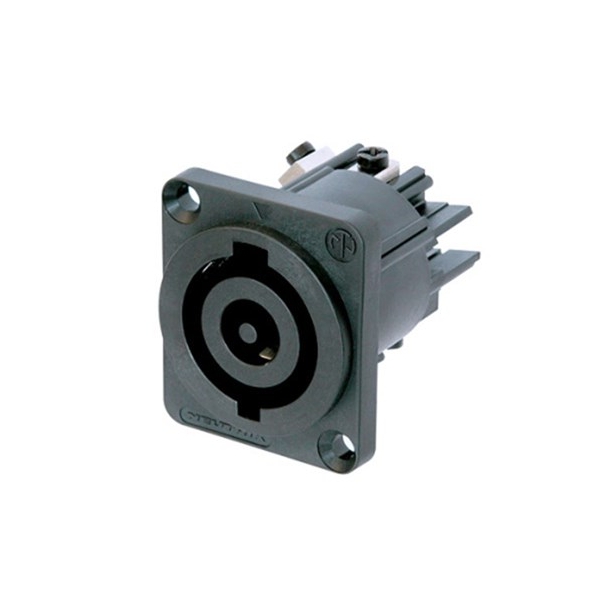

NEUTRIK NAC3MP-HC PowerCON 32A Chassis Panel Connector Power In Locking Black - 32A 250V

The NEUTRIK NAC3MP-HC is a high-quality powerCON 32 A chassis panel connector designed for high-current single-phase AC power distribution in professional audio, lighting, and touring installations. Rated at 32 A and 250 V AC for ambient temperatures up to 35 C, it features an extremely robust polyamide PA 6.6 glass-reinforced shell with silver-plated bronze contacts and a fast Quick Lock mechanism to ensure secure, vibration-resistant power connectivity.

Ideal for racks, distro panels, stage power, and fixed installs, it uses screw-type terminals for 2.5 to 6.0 mm2 conductors (AWG 14 to 10) and includes a premating protective earth contact for safer operation. Approved to VDE UL cUL and JET and compliant with IEC 62368-1 up to 4000 W rms, it delivers long-term reliability with over 1000 mating cycles, UL 94 V-0 flammability, IP20 protection when mated, and a -25 C to +70 C operating range for demanding production environments.

Key Features

  • 32 A 250 V AC single-phase powerCON chassis connector power-in for high power distribution systems
  • Silver-plated bronze contacts with low contact resistance up to 3 mOhm and high dielectric strength 4 kVdc 2.8 kVac
  • Quick Lock locking system and premating protective earth contact to reduce accidental disconnects and improve safety
  • IEC 62368-1 compliant up to 4000 W with VDE UL cUL and JET approvals plus UL 94 V-0 and IP20 mated rating
  • Screw terminals for 2.5 to 6.0 mm2 AWG 14 to 10 wiring with more than 1000 mating cycles for pro touring and install use
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
