NEUTRIK NAC3FC-HC 32A POWERCON LINE CONNECTOR LOCKING BLACK
NEUNAC3FC-HC
NU-NAC3FC-HC
New product

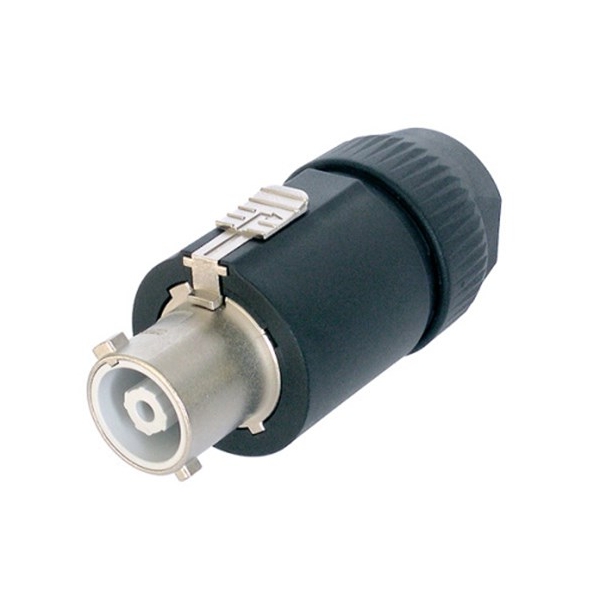

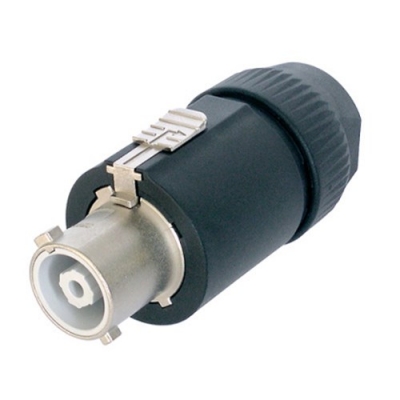

NEUTRIK NAC3FC-HC powerCON Cable Connector 32A
The NEUTRIK NAC3FC-HC is a high-quality powerCON 32 A female cable connector designed for secure single-phase AC power distribution in professional audio, lighting, and high-demand installation environments. Rated at 250 V AC and 32 A per contact, it features an extremely robust polyamide housing with a Quick Lock mechanism and premating protective earth contact to ensure safe, reliable high-current performance.
Ideal for touring power looms, stage power distribution, rental inventory, and fixed venue systems, it supports 8-20 mm cable outer diameters and screw-terminal wiring for 2.5 to 6.0 mm² conductors (AWG 14-10). VDE, UL, cUL and JET approvals plus EN/IEC 61984 and IEC 62368-1 compliance up to 4000 W make it a dependable choice for professional power connectivity where safety and durability matter.
Key Features
- 250 V AC single-phase powerCON connector rated 32 A per contact for high-power distribution
- Premating protective earth contact for enhanced safety during connection
- Quick Lock locking device prevents unintentional disengagement in live event and install use
- Screw terminals for 2.5-6.0 mm² (AWG 14-10) conductors with 8-20 mm cable O.D. range
- IP20 protection when mated with UL94 V-0 materials and >1000 mating cycles for long service life
- PRODUCT TYPE CONNECTORS
- COLOR BLACK
NEUNAC3FC-HC_ds_1
