VOID BIAS Q2+ POWER AMPLIFIER 4X1200W 70V 100V 2 OHM STABLE 1U

Product Code: VOIBIAS-Q2PLUS

Supplier SKU: VOI-BIAS Q2+

Condition: New product

More details

Balcatta: 0

Geebung: 0

More info
Specifications
Download

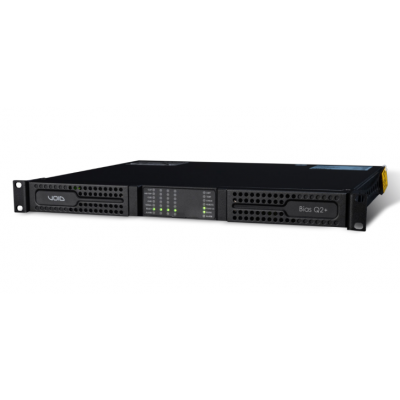

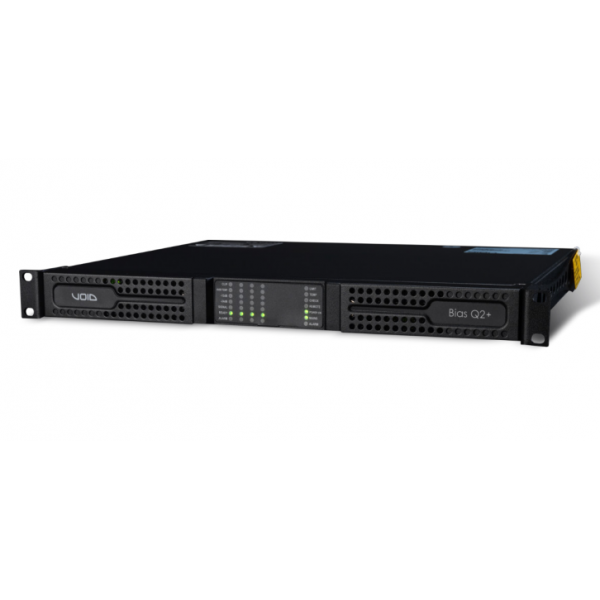

Void Acoustics Bias Q2 Plus DSP Install Power Amplifier 4x1200W-70V-100V-2-Ohm-Stable-1U

The VOIBIAS-Q2PLUS is a high-quality 4-channel installation power amplifier designed for flexible low-impedance loudspeaker systems and 70V/100V distributed audio lines in professional venues. Measuring 483 x 44.5 x 358 mm in a space-saving 1U rack chassis, it delivers up to 4 x 1200 W at 8 ohm and 4 ohm with 2 ohm stability plus Hi-Z 70V/100V drive, featuring advanced DSP and Smart Rails Management technology to ensure high efficiency, low thermal dissipation, and dependable high-output performance.

Ideal for medium to large venues, bars, clubs, houses of worship, corporate AV, hotels, gyms, and indoor or outdoor events, it integrates AES67 audio networking with ArmoniaPlus control for fast commissioning and remote tuning, and it supports mission-critical operation including reliable use on UPS-backed power while offering IP20-rated protection and install-friendly Phoenix connectivity for clean rack builds.

Key Features

4-channel flexible output: 1200 W per channel at 8 ohm and 4 ohm with 1500 W per channel at 2 ohm plus 3000 W bridged at 4 ohm and 2400 W bridged at 8 ohm
70V 100V distributed audio ready: 1200 W per channel Hi-Z at 70V or 100V with mixed Lo-Z and Hi-Z system support
Advanced DSP engine: 32-bit floating point processing with FIR and IIR EQ linear-phase crossover delay limiters and manufacturer presets for accurate loudspeaker optimization
AES67 and ArmoniaPlus control: digital audio networking plus comprehensive DSP tools including delay EQ input trim gain and polarity for streamlined system tuning
Efficient and install-focused design: SRM Smart Rails Management with universal 100-240 VAC PFC power supply IP20 rating temperature-controlled front-to-rear cooling and Phoenix connectors for reliable fixed installations
