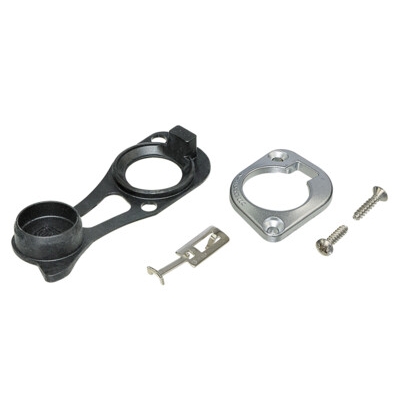

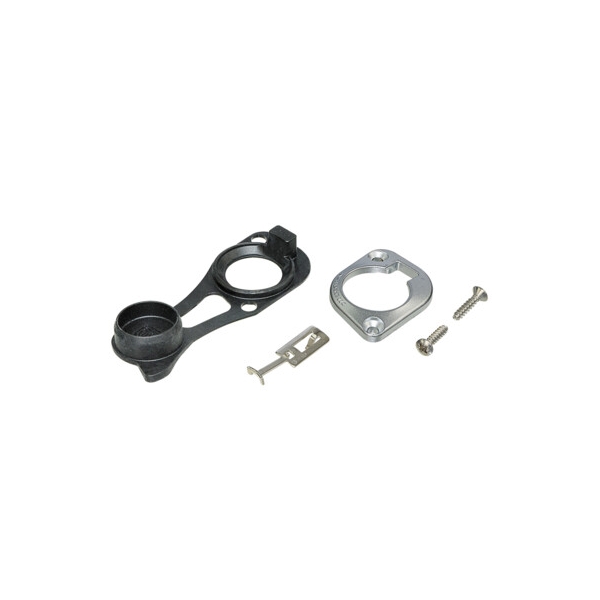

NEUTRIK SE8FD-TOP ETHERCON TOP OUTDOOR ASSEMBLY KIT IP65 BLACK
NEUSE8FD-TOP
NU-SE8FD-TOP
New product
NU-SE8FD-TOP Neutrik SE8FD-TOP etherCON TOP Outdoor Assembly Kit
The NU-SE8FD-TOP Neutrik SE8FD-TOP is an etherCON TOP assembly kit for converting D-series etherCON receptacle connectors into TOP versions. It uses a D-sized receptacle flange for PCB mount and IDC termination, with a chromium-plated zinc diecast shell plus EPDM sealing gasket and locking element materials.
For outdoor-protection applications, the kit is specified with an IP65 rating and certified outdoor protection to UL 50E when used in combination with NE8MX-TOP or with the sealing cap closed. High-impact UV-resistant and gasket materials support exposed connector assemblies, while Class D or CAT5e performance is stated according to ISO/IEC 11801 and TIA/EIA.
Key Features
- Converts D-series etherCON receptacle connectors into TOP versions for outdoor-oriented installations
- Supports PCB mount and IDC termination applications through the D-sized receptacle flange design
- Provides a clearly defined route to IP65 and UL 50E outdoor protection when used as specified
- Uses UV-resistant and EPDM gasket materials to suit exposed connector assembly requirements
- Aligns with recognised Class D or CAT5e data cabling categories for structured installation planning
- PRODUCT TYPE CONNECTORS
- COLOR BLACK
NEUSE8FD-TOP_ds_1
