> >>NEUTRIK NE8FAH A-SERIES PANEL RECEPTACLE - HORIZONTAL PCB-MOUNT

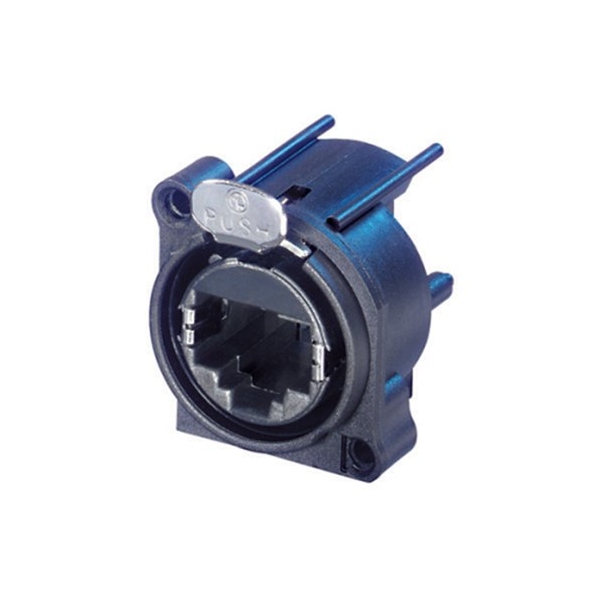

New NEUTRIK NE8FAH A-SERIES PANEL RECEPTACLE - HORIZONTAL PCB-MOUNT View larger

NEUTRIK

NEUTRIK NE8FAH A-SERIES PANEL RECEPTACLE - HORIZONTAL PCB-MOUNT

NEUNE8FAH

NU-NE8FAH

New product

Balcatta: 0
Geebung: 0

NEUTRIK NE8FAH etherCON A-Series RJ45 Panel Receptacle Horizontal PCB Mount

The NEUTRIK NE8FAH is a high-quality ruggedized, lockable RJ45 panel receptacle designed for professional audio, video, and lighting network applications where reliable Ethernet connectivity is essential. Built in the space-saving all-plastic etherCON A-Series chassis with rear mounting and an approved latch lock system, it supports CAT5e/Class D transmission from 1–100 MHz and is isolated from panel ground for cleaner installations.

Ideal for stage boxes, patch panels, racks, and entertainment-industry equipment, it handles PoE Type 4 Class 8 up to 100 W (IEEE 802.3bt) with ≤57 V rating, offers >1000 mating cycles, and meets key standards including ISO/IEC 11801-1 and IEC 60603-7-3, making it a dependable choice for demanding touring, rental, and fixed-install environments.

Key Features

  • Horizontal PCB-mount female RJ45 etherCON receptacle with rear A-Series panel mounting and latch lock
  • CAT5e / Class D channel performance (TIA/EIA 568C and ISO/IEC 11801) across 1–100 MHz
  • Durable contacts: CuSn8 bronze with 0.2 µm gold over nickel plating for low contact resistance (<50 mΩ)
  • PoE Type 4 Class 8 (100 W) support per IEEE 802.3bt; dielectric strength 1 kVdc; insulation >0.5 GΩ
  • All-plastic PBTP 15% glass-reinforced housing, UL 94 V-0, -30 °C to +80 °C, max panel thickness 3 mm, >1000 mating cycles
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
