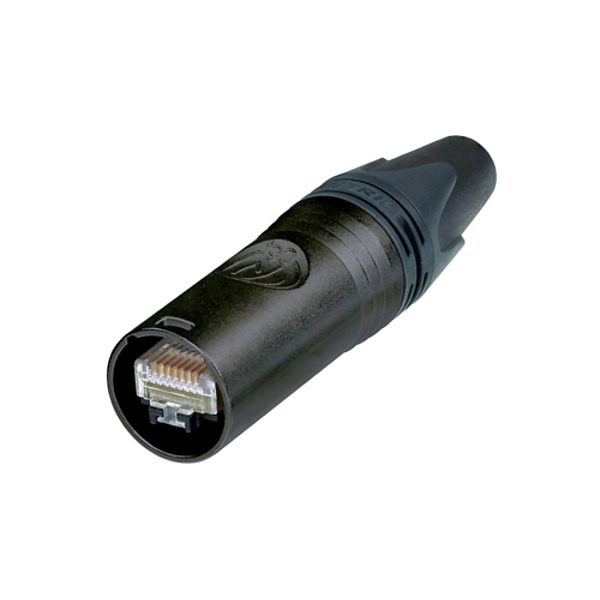

NEUTRIK ETHERCON LARGE O.D CAT6A CABLE CONNECTOR
NEUNE8MX6-B-T
NU-NE8MX6-B-T
New product
etherCON CAT6A cable connector self termination, for insulation diameter ≤ 1.1 mm, black plating.
The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck type strain relief and a CAT6A compliant RJ45 plug.
The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG26/1 - AWG22/1 (solid) or AWG27/7 - AWG22/7 (stranded).
** Please note that it does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B **
Features
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE+ compliant according to 802.3at Type2
- IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
- Rugged latch lock system million fold proven
- Intermateable with the existing etherCON CAT5 range
- Unique Neutrik chuck type strain relief
- Colour Black
- IP Rating IP65
- Operating Temperature suits -40 °C to +70 °C
- Outside Diameter Suits Cable Diametre 7.0 mm - 9.5 mm
- Warranty 3 Years
Data Sheet
